Siemens LZS Series Coupling Relay, Plug In, 24V dc Coil, 4PDT, 4-Pole
- RS Stock No.:
- 758-6832
- Mfr. Part No.:
- LZS:PT5A5L24
- Brand:
- Siemens
Subtotal (1 unit)*
£19.44
(exc. VAT)
£23.33
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £19.44 |
*price indicative
- RS Stock No.:
- 758-6832
- Mfr. Part No.:
- LZS:PT5A5L24
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Siemens | |
Coil Voltage | 24V dc | |
Contact Configuration | 4PDT | |
Mounting Type | Plug In | |
Series | LZS | |
Number of Poles | 4 | |
Terminal Type | Screw | |
Depth | 72mm | |
Height | 74mm | |
Length | 27mm | |
Contact Material | Silver Alloy | |
Operating Temperature Range | -40 → +70°C | |
Life | 30000000 cycles | |
Maximum Operating Temperature | +70°C | |
Minimum Operating Temperature | -40°C | |
Relay Type | Plug-In Module | |
Standards Met | CE | |
Dimensions | 74 x 27 x 72mm | |
Accessory Type | Plug In Relay | |
Select all | ||
---|---|---|
Brand Siemens | ||
Coil Voltage 24V dc | ||
Contact Configuration 4PDT | ||
Mounting Type Plug In | ||
Series LZS | ||
Number of Poles 4 | ||
Terminal Type Screw | ||
Depth 72mm | ||
Height 74mm | ||
Length 27mm | ||
Contact Material Silver Alloy | ||
Operating Temperature Range -40 → +70°C | ||
Life 30000000 cycles | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
Relay Type Plug-In Module | ||
Standards Met CE | ||
Dimensions 74 x 27 x 72mm | ||
Accessory Type Plug In Relay | ||
- COO (Country of Origin):
- DE

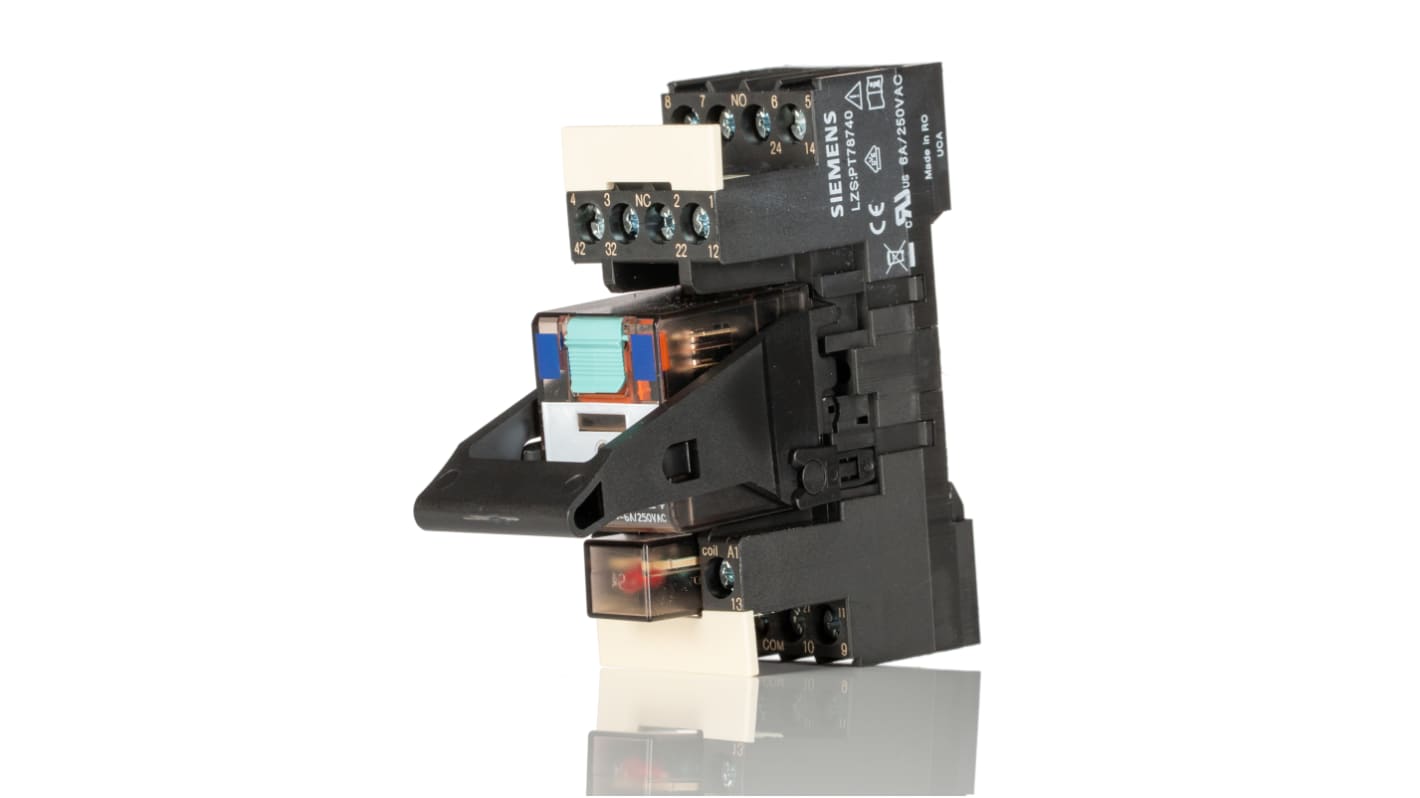

Siemens Coupling Relay, 4 Poles, Plug-In Module - LZS:PT5A5L24
This coupling relay is intended for various automation system applications, ensuring reliable operation and facilitating installation. With a compact size of 74x27x72mm, it features a plug-in module design that eases maintenance and replacement. Operating at a coil voltage of 24V DC, it is suitable for different electrical environments.
Features & Benefits
• 4PDT contact configuration enables multiple circuit connections
• High cycle life of 30 million ensures operational dependability
• AgNi contact material enhances conductivity and durability
• Screw terminal connections provide secure and straightforward wiring
• CE standards certification confirms compliance with safety requirements
• High cycle life of 30 million ensures operational dependability
• AgNi contact material enhances conductivity and durability
• Screw terminal connections provide secure and straightforward wiring
• CE standards certification confirms compliance with safety requirements
Applications
• Used for switching in industrial machinery
• Commonly utilised in automation and control systems
• Suitable for interface circuits in electrical panels
• Employed in alarm and signalling devices
• Ideal for controlling power loads in diverse settings
• Commonly utilised in automation and control systems
• Suitable for interface circuits in electrical panels
• Employed in alarm and signalling devices
• Ideal for controlling power loads in diverse settings
Can it operate in extreme temperatures?
Yes, it functions effectively within -40°C to +70°C.
Is it easy to install?
Yes, the plug-in design facilitates installation and replacement.
Will it provide a dependable connection?
Screw terminals ensure secure and stable electrical connections.
Can it handle high voltage loads?
It is rated for operational currents up to 6A at 24V DC.
