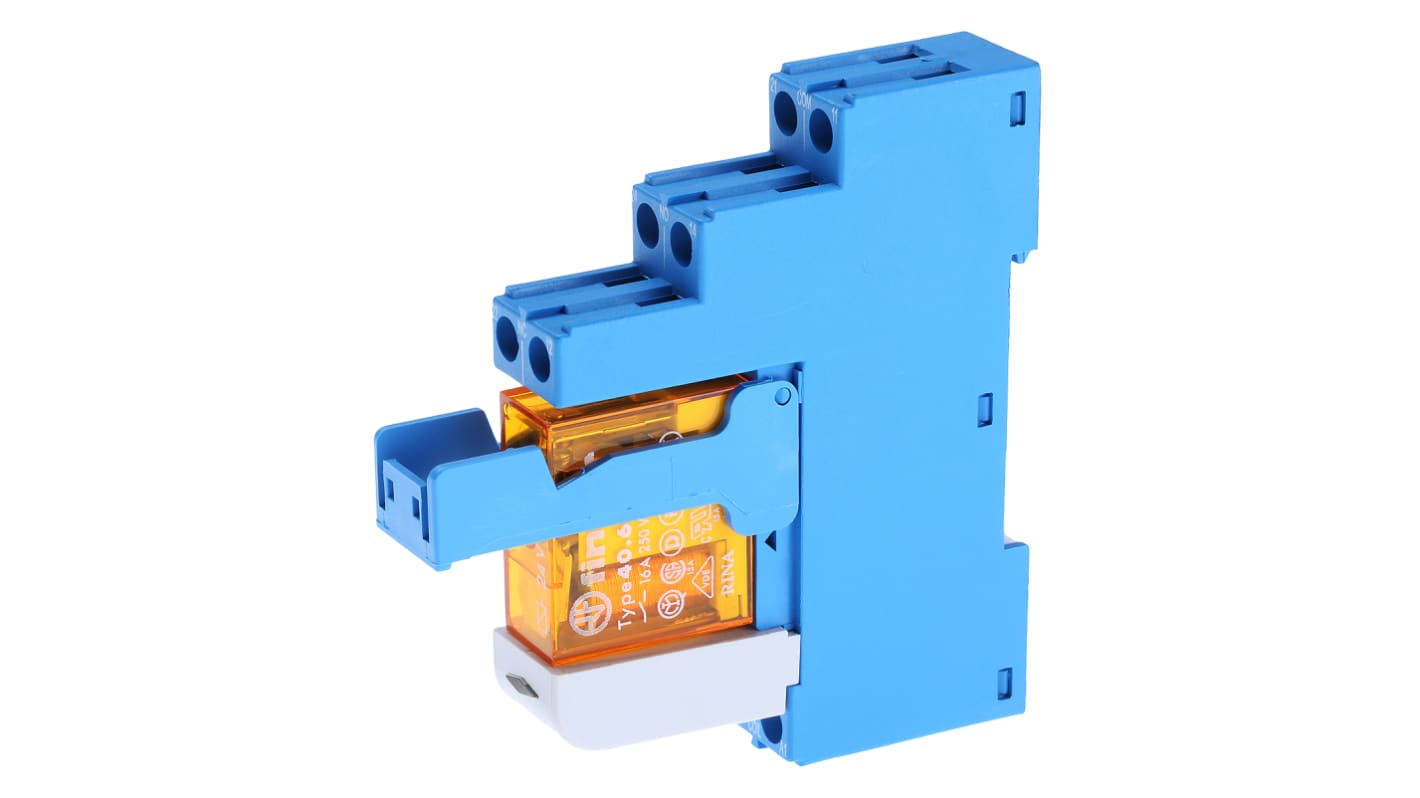

Finder 48 Series Interface Relay, DIN Rail Mount, 24V ac Coil, SPDT, 1-Pole, 16A Load

RS Stock No.:: 623-7264
Mfr. Part No.:: 48.61.8.024.0060SPA
Brand:: Finder

Finder 48 Series Interface Relay, DIN Rail Mount, 24V ac Coil, SPDT, 1-Pole, 16A Load

Stock information currently inaccessible

Finder Relay Sockets

Finder relay sockets are known for their reliability, ease of use, and versatility in various electrical and industrial applications. Browse the complete range of Finder Relay Sockets today.

Explore Finder Relays Sockets

RS Stock No.:: 623-7264
Mfr. Part No.:: 48.61.8.024.0060SPA
Brand:: Finder

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Finder
	Coil Voltage	24V ac
	Contact Configuration	SPDT
	Mounting Type	DIN Rail
	Series	48 Series
	Number of Poles	1
	Load Current Rating	16A
	Minimum Input Voltage	19.2V
	Load Voltage Rating	12V dc
	Maximum Input Voltage	26.4V
	Terminal Type	Screw
	Switching Voltage	250 → 400V
	Depth	75.3mm
	Height	78.6mm
	Length	15.8mm
	Contact Material	Silver Alloy
	Input Current	46mA
	Standards Met	CE, CULus, DVE, EAC
	Maximum Operating Temperature	+70°C
	Minimum Operating Temperature	-40°C
	Dimensions	15.8 x 75.3 x 78.6mm
	Life	100000 Cycles
	Operating Temperature Range	-40 → +70°C
	Turn Off Time	12ms
	Turn On Time	15ms
	Input Voltage Range	230V ac

	Select all
	Brand Finder
	Coil Voltage 24V ac
	Contact Configuration SPDT
	Mounting Type DIN Rail
	Series 48 Series
	Number of Poles 1
	Load Current Rating 16A
	Minimum Input Voltage 19.2V
	Load Voltage Rating 12V dc
	Maximum Input Voltage 26.4V
	Terminal Type Screw
	Switching Voltage 250 → 400V
	Depth 75.3mm
	Height 78.6mm
	Length 15.8mm
	Contact Material Silver Alloy
	Input Current 46mA
	Standards Met CE, CULus, DVE, EAC
	Maximum Operating Temperature +70°C
	Minimum Operating Temperature -40°C
	Dimensions 15.8 x 75.3 x 78.6mm
	Life 100000 Cycles
	Operating Temperature Range -40 → +70°C
	Turn Off Time 12ms
	Turn On Time 15ms
	Input Voltage Range 230V ac

Datasheet

COO (Country of Origin):: IT

Finder 48 Series Interface Relay, 24V AC Coil Voltage, 16A Load Current Rating - 48.61.8.024.0060SPA

This interface relay is designed for reliable and effective operation in various industrial and automation applications. With a compact design measuring 15.8 x 75.3 x 78.6 mm, it features a single pole double throw (SPDT) contact configuration and operates on a voltage of 24V AC. The relay is suitable for integration into DIN rail systems, making it a versatile choice for seamless installation in control panels and distribution boards.

Features & Benefits

• Ideal for high-load applications with a 16A load current rating
• Utilises screw terminals for secure electrical connections
• Quick switching times with 12ms turn off and 15ms turn on
• Designed for longevity, rated for up to 100,000 cycles
• Complies with multiple industry standards including CE and EAC

Applications

• Used in building systems
• Ideal for control panels in lifts and elevators
• Suitable for use in electrical distribution boards
• Commonly integrated in hoists and cranes

How do the screw terminals benefit installation and reliability?

Screw terminals provide a robust connection that minimises the risk of loosening over time, ensuring a reliable electrical connection even in high-vibration environments. This makes installation straightforward and enhances overall reliability.

What is the significance of the operational temperature range?

The wide operational temperature range of -40°C to +70°C allows use in diverse environments, from chilled storage rooms to heated industrial spaces, ensuring consistent performance without failure.

How does the relay's lifespan affect maintenance scheduling?

A lifespan of 100,000 cycles significantly reduces the need for frequent replacements, allowing maintenance schedules to be optimised and operational downtime to be minimised, thus increasing the efficiency of equipment.

What criteria should be considered for load compatibility with this relay?

When assessing load compatibility, it is crucial to consider the current rating limit of 16A and the switching voltage capabilities, ensuring the connected load does not exceed these specifications for safe operation.

Approvals

BBJ; BEAB; CSA; DEMKO; FIMKO; GOST; IMQ; NEMKO; RINA; SEMKO; SEV; UL recognised component for Canada and US; UTE; VDE
