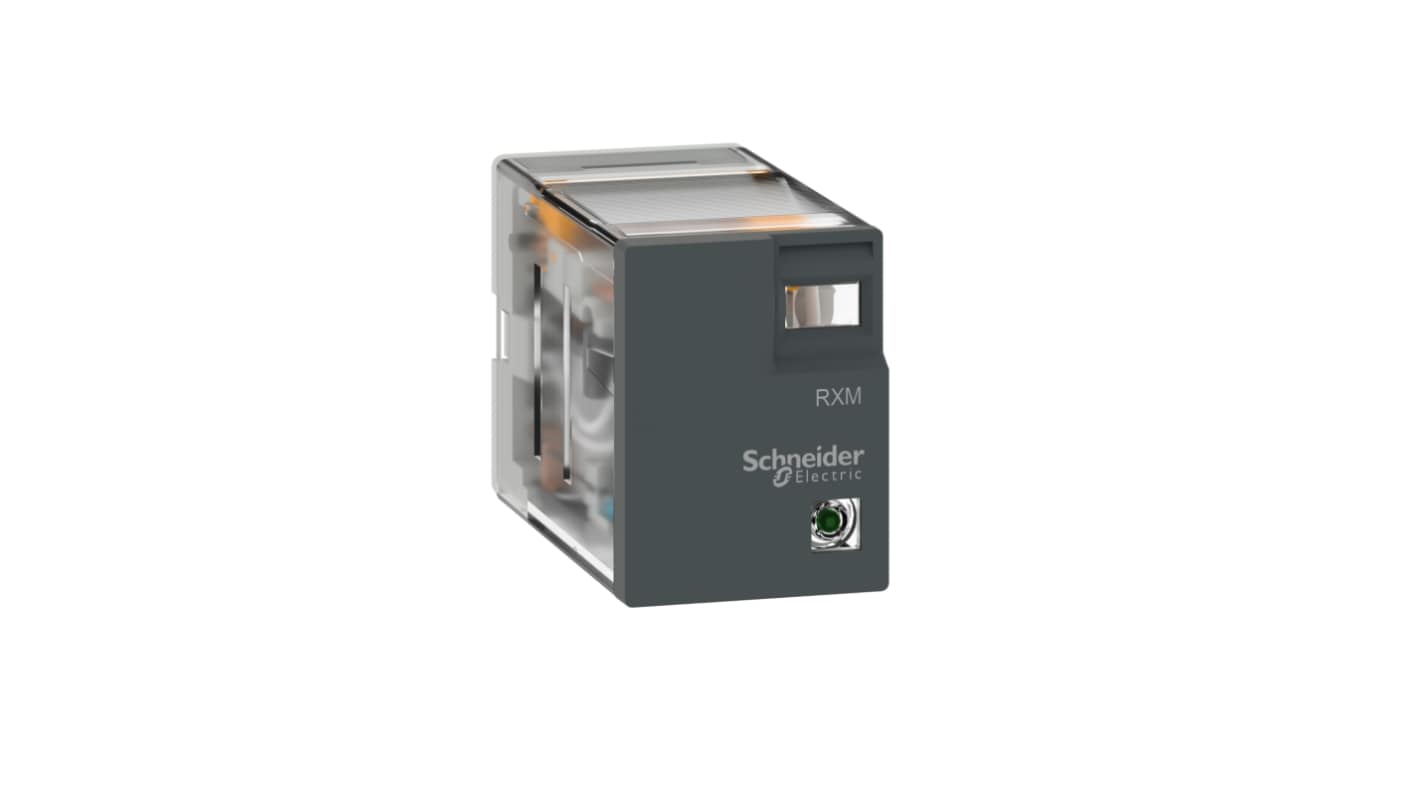

Schneider Electric EASY RELAY Series Electromechanical Interface Relay, Plug In, 4PDT, 4-Pole, 3A Load

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
269-6010
Mfr. Part No.:
RXM4LB1B7
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Contact Configuration

4PDT

Mounting Type

Plug In

Number of Poles

4

Series

EASY RELAY

Load Current Rating

3A

Maximum Input Voltage

24V ac

Switching Voltage

250V ac

Terminal Type

Plug In

Depth

46mm

Height

27mm

Length

21mm

Contact Material

Silver Alloy

Dimensions

27 x 21 x 46mm

Operating Temperature Range

-40 → 55°C

Turn Off Time

20ms

Maximum Operating Temperature

+55°C

Accessory Type

Plug In Relay

Relay Type

Electro Mechanical

Relay Switching Classification

Miniature Relay

Minimum Operating Temperature

-40°C

Special Features

IP40

Standards Met

RoHS Compliant

RoHS Status: Exempt

COO (Country of Origin):
CN
The Schneider Electric Medium Miniature plug in relay is a part of Harmony Electromechanical Relays which can be mounted on a RXZE socket. It also offers a mechanical indicator where an orange flag indicates the relay contact status. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls.

Toxic heavy metal free
Green premium compliant
