Phoenix Contact PLC-RSC Series Relay Module, DIN Rail Mount, 4.5V dc Coil, SPDT, 38mA Load
- RS Stock No.:
- 240-7203
- Mfr. Part No.:
- 1119897
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£161.80
(exc. VAT)
£194.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 230 unit(s) ready to ship
- Plus 70 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 05 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 + | £16.18 | £161.80 |
*price indicative
- RS Stock No.:
- 240-7203
- Mfr. Part No.:
- 1119897
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Coil Voltage | 4.5V dc | |
Contact Configuration | SPDT | |
Mounting Type | DIN Rail | |
Series | PLC-RSC | |
Load Current Rating | 38mA | |
Minimum Input Voltage | 5V | |
Maximum Input Voltage | 7V dc | |
Switching Voltage | 5V | |
Depth | 94mm | |
Height | 80mm | |
Length | 8mm | |
Contact Material | Silver Alloy | |
Input Current | 38mA | |
Input Voltage Range | 4.2 → 7V dc | |
Minimum Operating Temperature | -40°C | |
Operating Temperature Range | -40 → +60°C | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 4.5V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series PLC-RSC | ||
Load Current Rating 38mA | ||
Minimum Input Voltage 5V | ||
Maximum Input Voltage 7V dc | ||
Switching Voltage 5V | ||
Depth 94mm | ||
Height 80mm | ||
Length 8mm | ||
Contact Material Silver Alloy | ||
Input Current 38mA | ||
Input Voltage Range 4.2 → 7V dc | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +60°C | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE

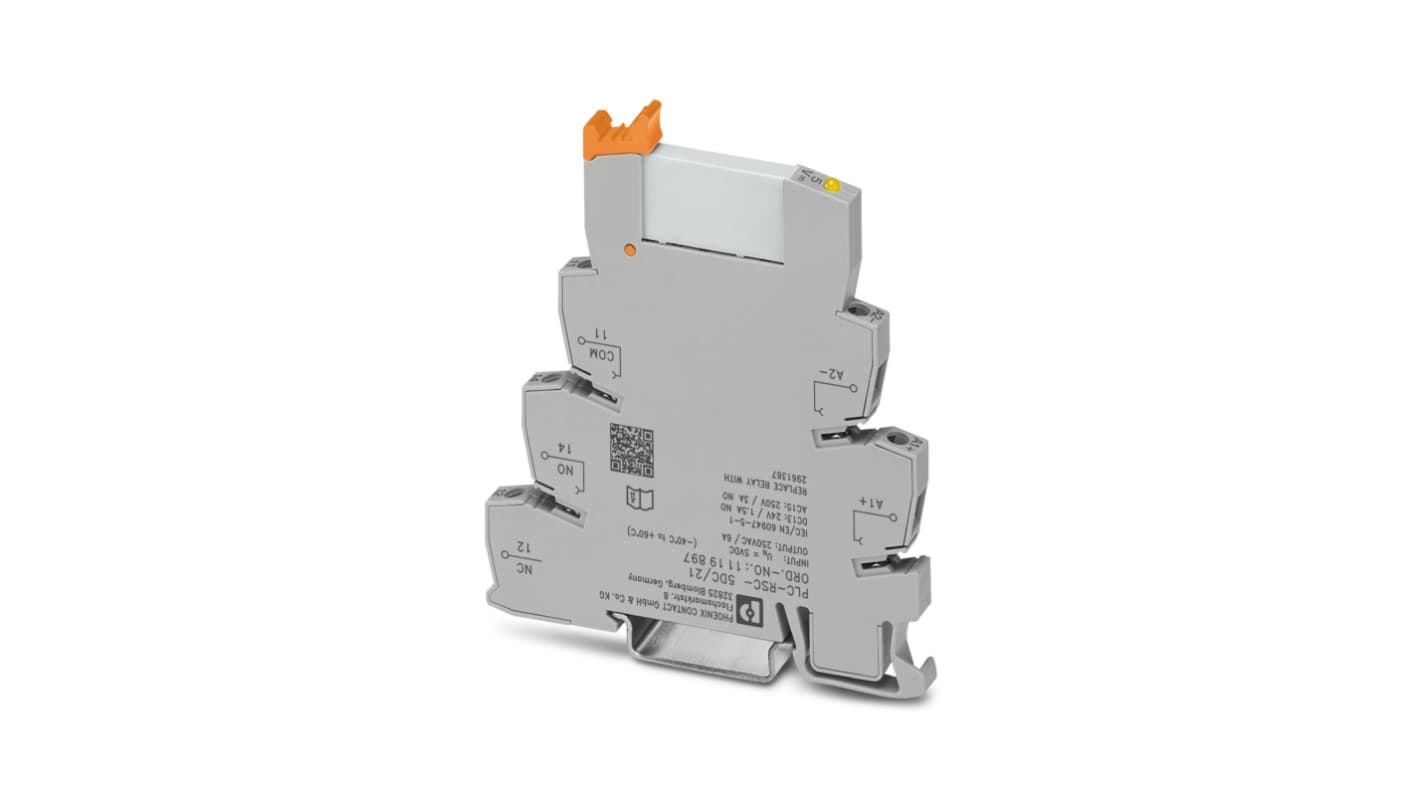

Phoenix Contact PLC-RSC Series Relay Module, 4.5V DC Coil Voltage, SPDT Contact Configuration - 1119897
This relay module is designed for automation applications, providing reliable performance for controlling various electrical circuits. With a compact design of 6.2mm wide, it can be seamlessly mounted on NS 35/7.5 DIN rail systems. This relay features a coil voltage of 4.5V DC, ensuring efficient operation within specified voltage ranges.
Features & Benefits
• SPDT configuration allows versatile switching capabilities
• Operating temperature range from -40°C to +60°C for varied environments
• Integrated interference suppression circuit enhances circuit stability
• Slim profile design enables efficient use of space in panels
• Reverse polarity protection safeguards against incorrect connections
• Functional plug-in bridges simplify wiring and enhance connectivity
• Operating temperature range from -40°C to +60°C for varied environments
• Integrated interference suppression circuit enhances circuit stability
• Slim profile design enables efficient use of space in panels
• Reverse polarity protection safeguards against incorrect connections
• Functional plug-in bridges simplify wiring and enhance connectivity
Applications
• Used with PLC interfaces for industrial automation control
• Suitable for load management in electrical systems
• Ideal for signal switching in process control environments
• Applied in safety systems where isolation is paramount
• Utilised in mechanical and electrical engineering projects
• Suitable for load management in electrical systems
• Ideal for signal switching in process control environments
• Applied in safety systems where isolation is paramount
• Utilised in mechanical and electrical engineering projects
What are the advantages of using this relay in industrial settings?
Using this relay enhances automation reliability, especially for control systems needing a changeover function. Its robust design ensures consistent performance even in challenging conditions, improving system uptime.
How do the input and switching voltages affect operation?
The designed input voltage ranges from 4.2V to 7V DC, while the optimal switching voltage is 5V. This ensures the relay operates efficiently within specified parameters, reducing the risk of failures and ensuring precise control.
What type of connections does it support?
It supports screw connections for both coil and contact sides, accommodating a range of conductor cross sections. This flexibility makes it easy to integrate into various electrical configurations and systems.
