WAGO 857 Series Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPDT, 6A Load

View this category

Subtotal (1 unit)*

£22.60

(exc. VAT)

£27.12

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 123 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£22.60

*price indicative

RS Stock No.:
180-3041
Distrelec Article No.:
304-10-816
Mfr. Part No.:
857-359
Brand:
WAGO
Find similar products by selecting one or more attributes.
Select all

Brand

WAGO

Coil Voltage

230V ac/dc

Contact Configuration

SPDT

Mounting Type

DIN Rail

Series

857

Load Current Rating

6A

Maximum Input Voltage

230V ac/dc

Load Voltage Rating

250V ac

Minimum Input Voltage

24V ac/dc

Terminal Type

Cage Clamp

Switching Voltage

250V ac

Depth

94mm

Height

81mm

Length

6mm

Contact Material

Silver Alloy

Input Current

3.5 mA, 20mA

Accessory Type

Relay Module

Special Features

IP20 Degree of protection, LED Indication

Standards Met

EN 50121-3-2, EN 61010-2-201, EN 61373, EN 61810-1, UL, UL E175199 Sec.4

Operating Temperature Range

-40 → +70°C

Life

5 x 10^6 (Mechanical) cycles, 50 x 10^3 (Electrical) cycles

Input Voltage Range

24 → 230V ac/dc

Minimum Operating Temperature

-40°C

Dimensions

6 x 81 x 94mm

Maximum Operating Temperature

+70°C

COO (Country of Origin):
DE

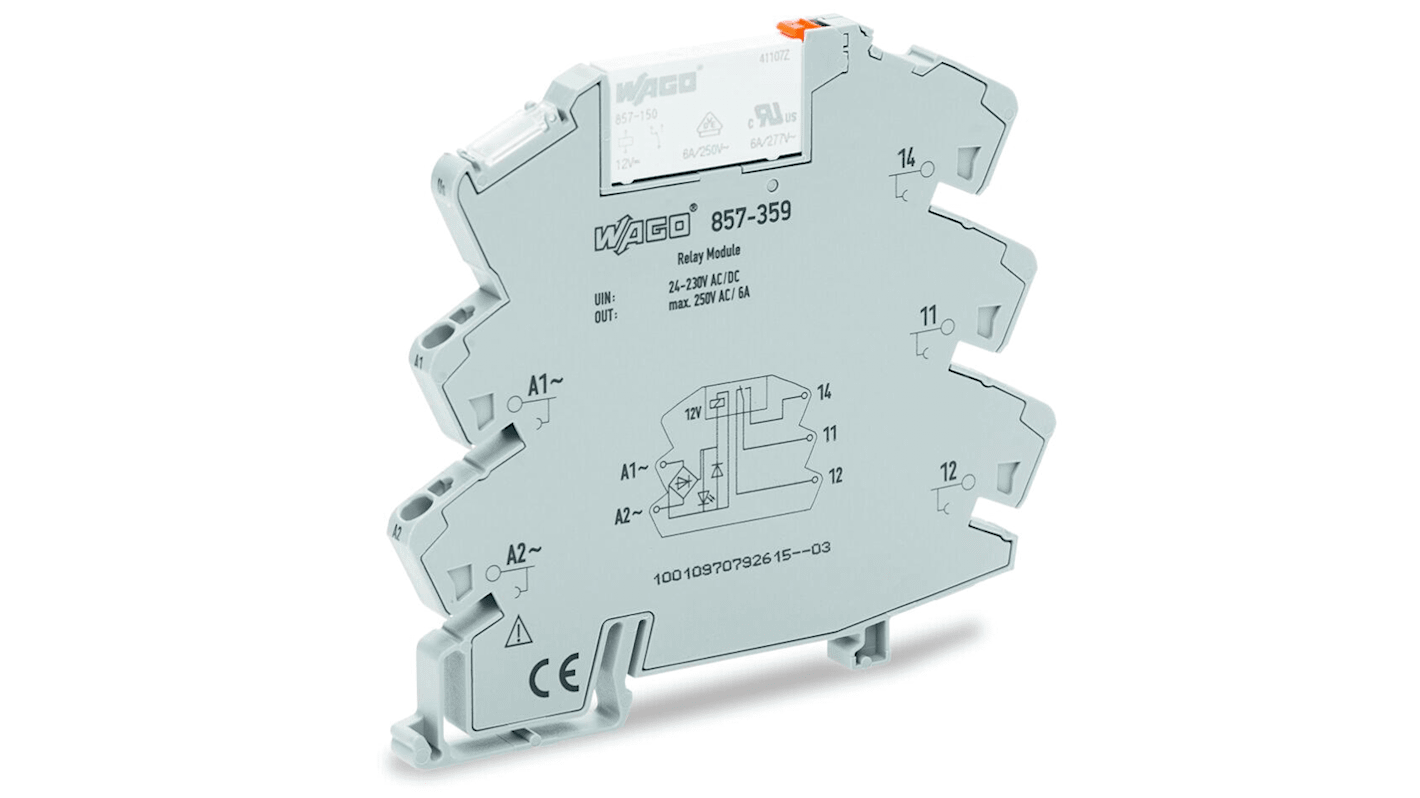

WAGO Series 857 Interface Relay, SPDT Contact Configuration, DIN Rail Mount - 857-359


This interface relay by WAGO is a versatile solution for various industries. With its robust build, it ensures reliable performance in challenging environments.

Features & Benefits


• Designed specifically for controlling electrical loads with ease and precision
• Features a single-pole double-throw (SPDT) contact configuration for flexible connections
• Utilises silver alloy contact material for enhanced durability and conductivity
• Offers IP20 degree of protection for safe and secure operation
• Equipped with LED indication for easy monitoring of relay status
• Capable of handling a load current of up to 6A for efficient performance

Applications


• Ideal for industrial automation systems requiring precise control over various devices
• Suitable for use in electrical panels, control cabinets, and machinery installations
• Can be used for applications where reliable switching of electrical loads is essential

Can this relay be used in high-voltage applications?


Yes, the WAGO interface relay is compatible with a wide range of input voltages, including up to 230 V ac/dc.

Is the LED indication feature user-friendly?


Yes, the LED indication on this relay provides easy visual feedback on its operational status.

Is this relay suitable for harsh industrial environments?


Yes, the IP20 degree of protection ensures that the relay can withstand tough conditions with ease.

What type of contact configuration does this relay offer?


The relay comes with a single-pole double-throw (SPDT) contact configuration for versatile connectivity.

Can this relay be mounted on a DIN rail?


Yes, the mounting type of this relay is DIN rail, making it easy to install in standard enclosures.
