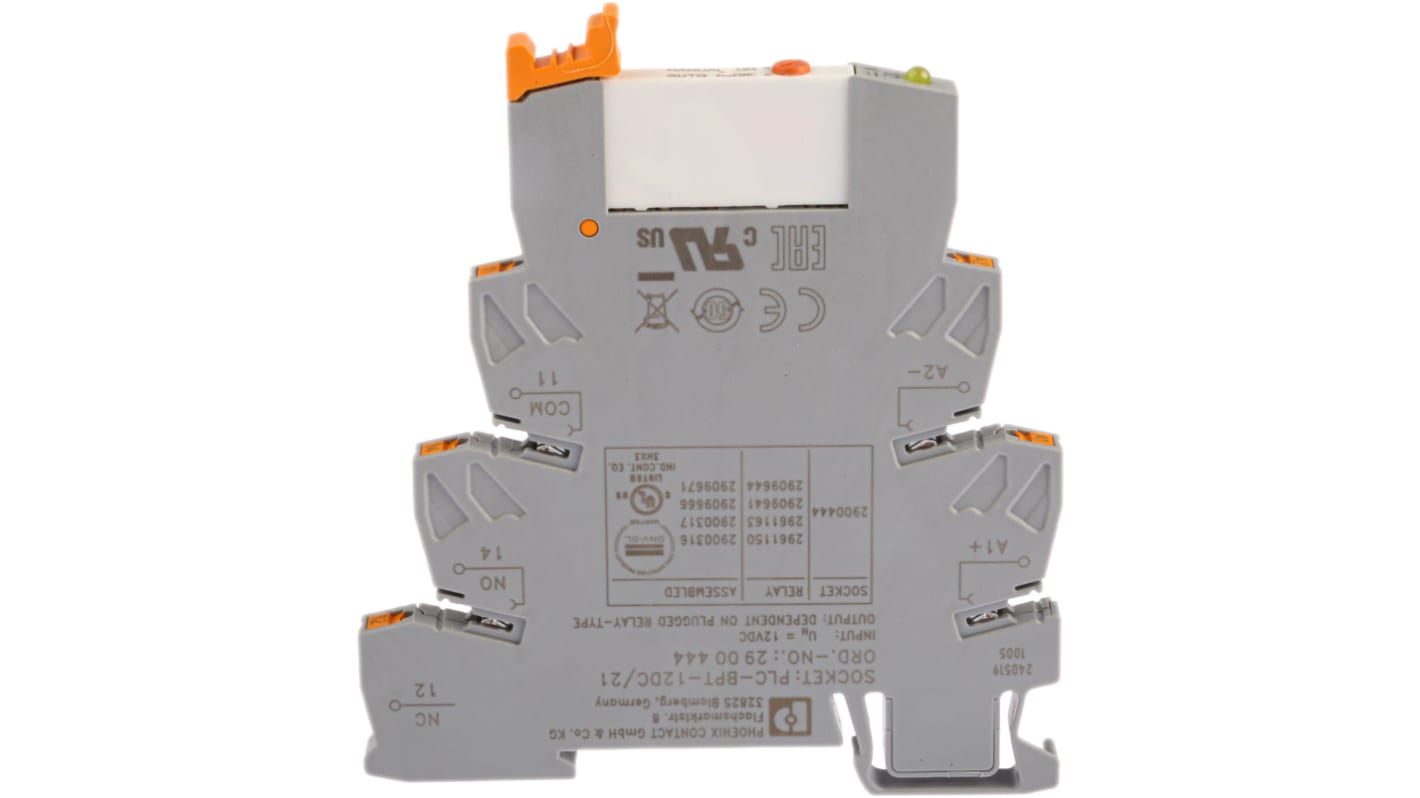

Phoenix Contact PLC-RPT- 12DC/21AU/MS Series Interface Relay, DIN Rail Mount, 12V dc Coil, SPDT, 1-Pole
- RS Stock No.:
- 134-8723
- Mfr. Part No.:
- 2909671
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-8723
- Mfr. Part No.:
- 2909671
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Number of Poles | 1 | |
| Maximum Input Voltage | 12V dc | |
| Minimum Input Voltage | 12V dc | |
| Terminal Type | Push In | |
| Depth | 6.2mm | |
| Height | 80mm | |
| Length | 94mm | |
| Series | PLC-RPT- 12DC/21AU/MS | |
| Contact Material | Gold Plated | |
| Input Current | 15.3mA | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +60°C | |
| Dimensions | 94 x 80 x 6.2mm | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Number of Poles 1 | ||
Maximum Input Voltage 12V dc | ||
Minimum Input Voltage 12V dc | ||
Terminal Type Push In | ||
Depth 6.2mm | ||
Height 80mm | ||
Length 94mm | ||
Series PLC-RPT- 12DC/21AU/MS | ||
Contact Material Gold Plated | ||
Input Current 15.3mA | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +60°C | ||
Dimensions 94 x 80 x 6.2mm | ||
Maximum Operating Temperature +60°C | ||
- COO (Country of Origin):
- DE
Phoenix PLC-RPT Series Push In Contact
The Phoenix PLC-RPT Series of relay modules features terminal blocks with push-in connection and plug-in miniature relay, suitable for DIN-rail mounting.
Features and Benefits
- With the use of a v8 adapter, this relay module offers efficient connection to system cabling
- The module offers safe isolation between the coil and contact
- Functional plug-in bridges
- Operating temperature range of -40 ºC to 60 ºC
What is a relay module used for?
A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electrophysical and X-ray installations.
PLC-RPT- 12DC/21AU/MS 2909671
- The product is a miniature relay featuring multi-layer gold contact and manual operation
- Single changeover contact
- Input voltage of 12 V DC
- RT III sealed relay degree of protection
