Phoenix Contact PLC-RSC-125DC/21AU/MS Series Interface Relay, DIN Rail Mount, 110V dc Coil, SPDT
- RS Stock No.:
- 134-8712
- Mfr. Part No.:
- 2909658
- Brand:
- Phoenix Contact
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-8712
- Mfr. Part No.:
- 2909658
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 110V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Minimum Input Voltage | 110V dc | |
| Terminal Type | Screw | |
| Depth | 6.2mm | |
| Height | 80mm | |
| Length | 94mm | |
| Series | PLC-RSC-125DC/21AU/MS | |
| Contact Material | Gold Plated | |
| Input Current | 15.3mA | |
| Dimensions | 94 x 80 x 6.2mm | |
| Maximum Operating Temperature | +60°C | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +60°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 110V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Minimum Input Voltage 110V dc | ||
Terminal Type Screw | ||
Depth 6.2mm | ||
Height 80mm | ||
Length 94mm | ||
Series PLC-RSC-125DC/21AU/MS | ||
Contact Material Gold Plated | ||
Input Current 15.3mA | ||
Dimensions 94 x 80 x 6.2mm | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +60°C | ||
- COO (Country of Origin):
- DE

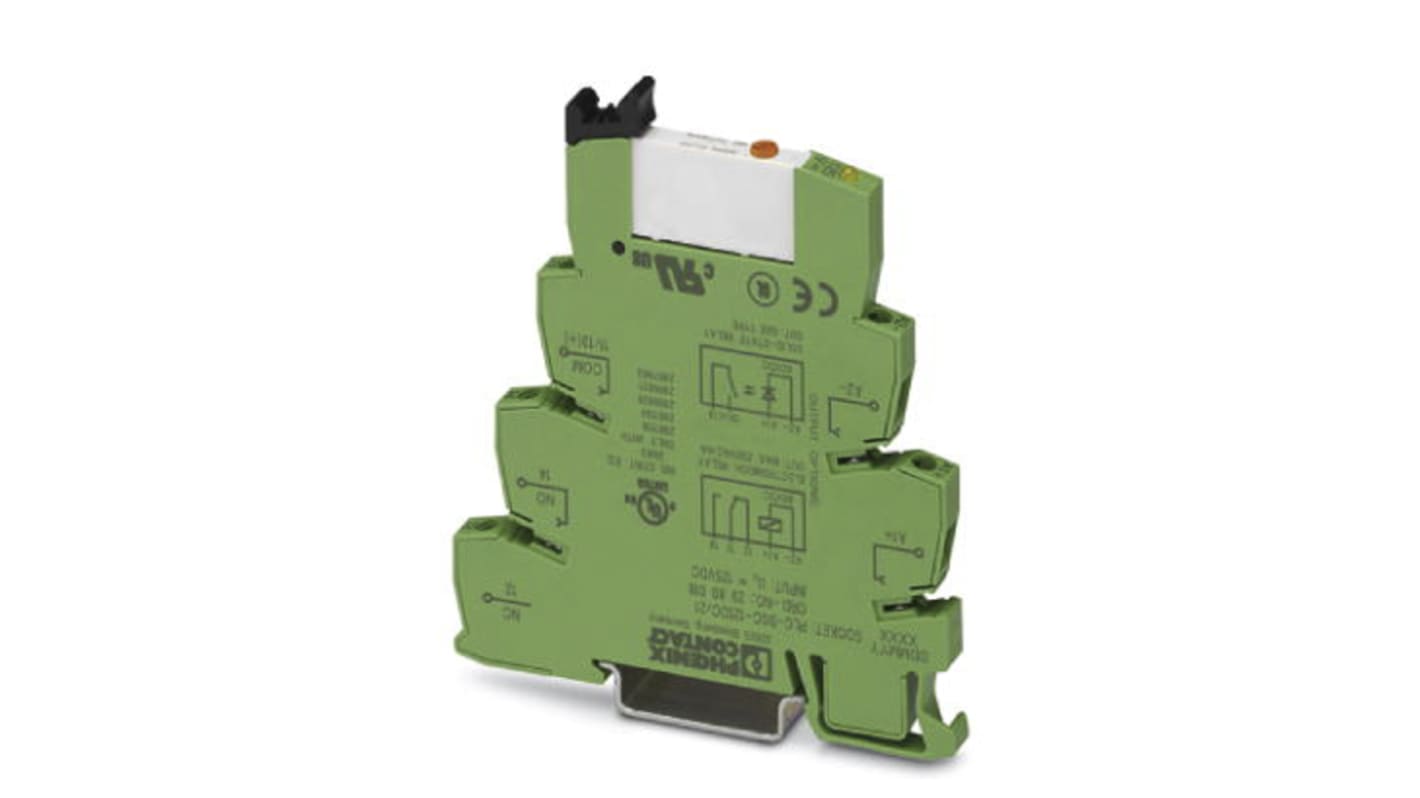

A 6.2 mm PLC interface relay module designed to be mountable on DIN rail NS 35/7.5. Featuring a basic terminal block with screw connection and a plug-in miniature power relay.
Phoenix Contact PLC-RCS Relays Series
This range of compact PLC relays from Phoenix Contact gives you a great choice of easy connection technology. The electromechanical relays act as the interface between your automation equipment and system peripherals.
Features and Benefits:
• Saves space on the DIN rail
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm
• Cost-effective
• Use the same electromechanical relay module design for both AC and DC switching voltage
• DIN rail mounting
• SPNO and SPDT models available
• Yellow LED operating voltage display
• Free-wheeling diode Damping diode
• Dimensions 94 x 80 x 6.2 mm
Typical Applications:
The PLC relays are used in many different applications not limited to power amplification, electrical isolation or for using for voltage adjustment of frequency varying voltage levels.
