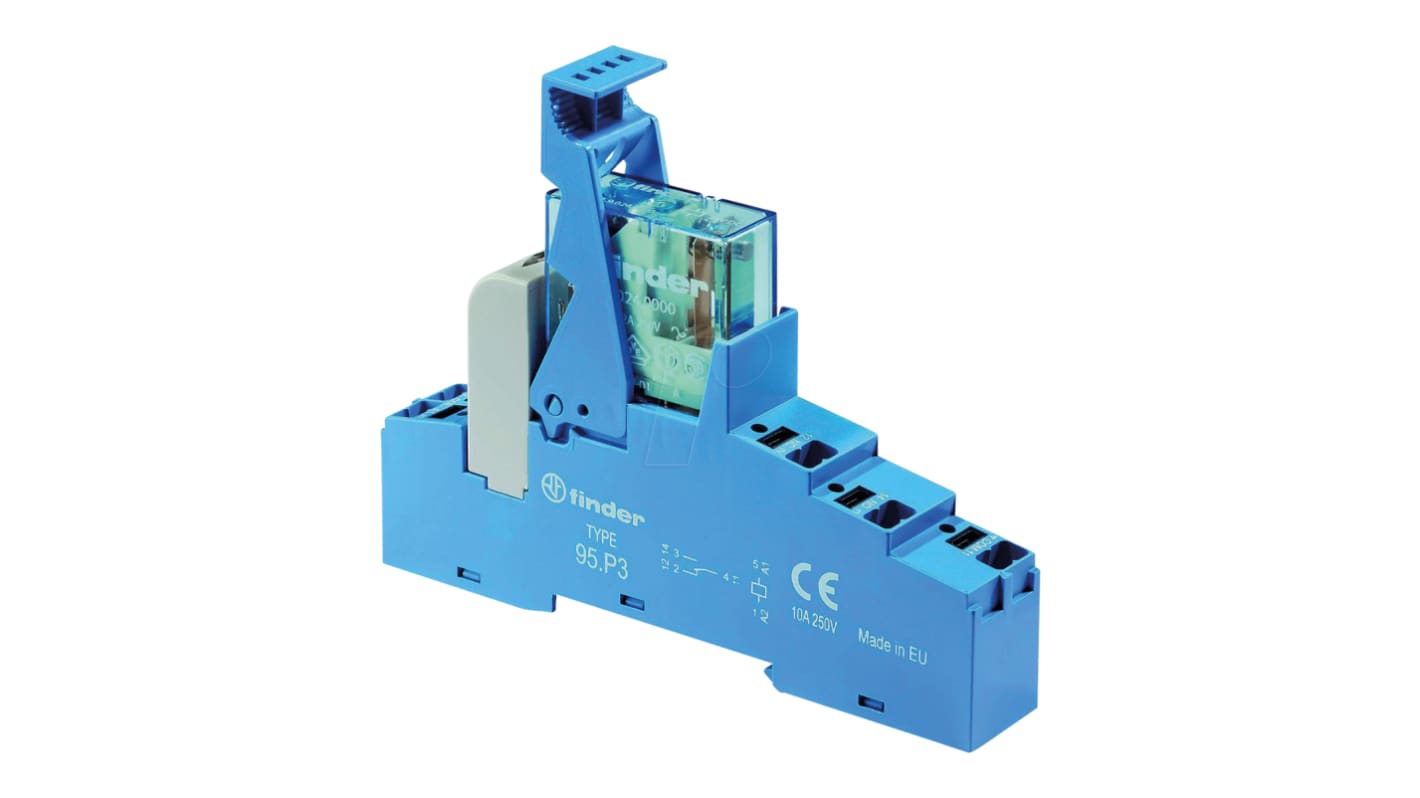

Finder 48 Series Interface Relay, DIN Rail Mount, 24V ac Coil, SPDT, 1-Pole, 10A Load
- RS Stock No.:
- 123-2806
- Distrelec Article No.:
- 301-62-755
- Mfr. Part No.:
- 48.P3.8.024.0060SPA
- Brand:
- Finder
Subtotal (1 unit)*
£18.45
(exc. VAT)
£22.14
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £18.45 |
*price indicative
- RS Stock No.:
- 123-2806
- Distrelec Article No.:
- 301-62-755
- Mfr. Part No.:
- 48.P3.8.024.0060SPA
- Brand:
- Finder
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 24V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Series | 48 Series | |
| Number of Poles | 1 | |
| Load Current Rating | 10A | |
| Minimum Input Voltage | 250V ac | |
| Maximum Input Voltage | 400V ac | |
| Switching Voltage | 250 V ac → 400V ac | |
| Terminal Type | Push In | |
| Depth | 75.3mm | |
| Height | 95.5mm | |
| Length | 15.8mm | |
| Contact Material | Silver Alloy | |
| Input Current | 46mA | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +70°C | |
| Maximum Operating Temperature | +70°C | |
| Turn On Time | (dc) 12 ms, (ac) 7ms | |
| Dimensions | 15.8 x 75.3 x 95.5mm | |
| Turn Off Time | (dc) 12 ms, (ac) 4ms | |
| Special Features | AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard | |
| Standards Met | CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE | |
| Relay Switching Classification | General Purpose Relay | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 24V ac | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series 48 Series | ||
Number of Poles 1 | ||
Load Current Rating 10A | ||
Minimum Input Voltage 250V ac | ||
Maximum Input Voltage 400V ac | ||
Switching Voltage 250 V ac → 400V ac | ||
Terminal Type Push In | ||
Depth 75.3mm | ||
Height 95.5mm | ||
Length 15.8mm | ||
Contact Material Silver Alloy | ||
Input Current 46mA | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +70°C | ||
Maximum Operating Temperature +70°C | ||
Turn On Time (dc) 12 ms, (ac) 7ms | ||
Dimensions 15.8 x 75.3 x 95.5mm | ||
Turn Off Time (dc) 12 ms, (ac) 4ms | ||
Special Features AC Coils or DC Sensitive Coils, Identification Label, Supply Status Indication & EMC Coil Suppression Module as Standard | ||
Standards Met CE, CSA, CULus, EAC, EZU, GOST, IMQ, LCIE, LIoyd's Register, RINA, VDE | ||
Relay Switching Classification General Purpose Relay | ||
