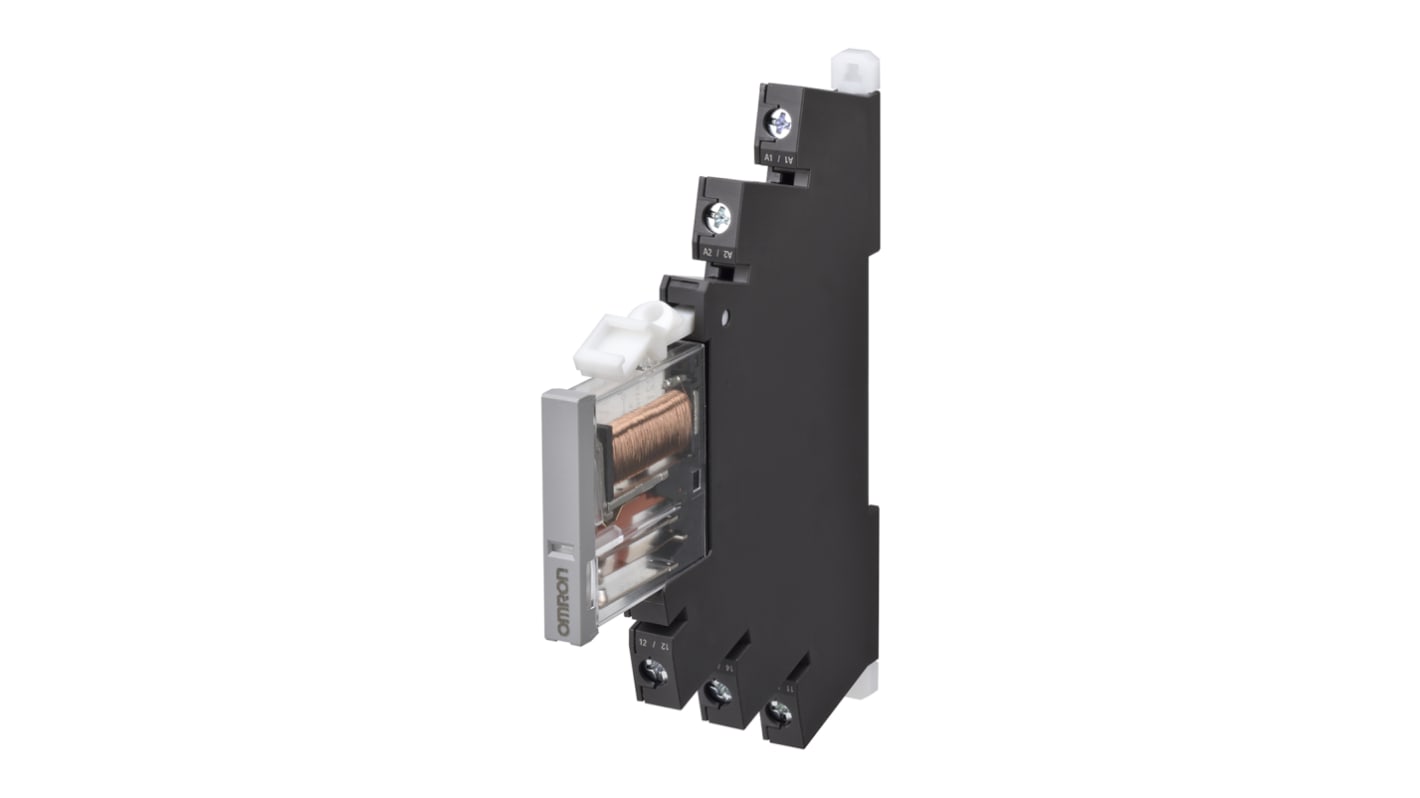

Omron G2RV Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 50mA Load
- RS Stock No.:
- 111-3058
- Mfr. Part No.:
- G2RV-SR700-AP DC24
- Brand:
- Omron
Subtotal (1 unit)*
£12.74
(exc. VAT)
£15.29
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 13 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £12.74 |
*price indicative
- RS Stock No.:
- 111-3058
- Mfr. Part No.:
- G2RV-SR700-AP DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Series | G2RV | |
| Number of Poles | 1 | |
| Load Current Rating | 50mA | |
| Terminal Type | Screw | |
| Depth | 78mm | |
| Height | 90mm | |
| Length | 6.2mm | |
| Contact Material | Gold Plated | |
| Life | 5000000 operations | |
| Standards Met | CE, CULus, TUV Certification, UL 508 File No. E41643 | |
| Special Features | Hands-Free Structure | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -40°C | |
| Relay Switching Classification | Non-Latching Relay | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series G2RV | ||
Number of Poles 1 | ||
Load Current Rating 50mA | ||
Terminal Type Screw | ||
Depth 78mm | ||
Height 90mm | ||
Length 6.2mm | ||
Contact Material Gold Plated | ||
Life 5000000 operations | ||
Standards Met CE, CULus, TUV Certification, UL 508 File No. E41643 | ||
Special Features Hands-Free Structure | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -40°C | ||
Relay Switching Classification Non-Latching Relay | ||
G2RV-SR Slim I/O Relays With Low Profile Socket
Omron G2RV-SR slim I/O relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G2RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.
Slim design
LED operating status
Push-In Plus terminal blocks
LED operating status
Push-In Plus terminal blocks
When 1113058 is no longer for sale, please see RS article 2711860 for the updated version in the new range of relays from Omron.
Note
This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.
