Phoenix Contact RIFLINE complete Series Relay Module, DIN Rail, 230V Coil, SPDT, 4.5mA

View this category
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Phoenix Contact RIF Series Interface Relay, Plug-in, 230V ac Coil, SPDT
RS Stock No.
204-7826

Each (In a Pack of 10)

£14.847

(exc. VAT)

£17.816

(inc. VAT)

RS Stock No.:
170-571
Mfr. Part No.:
2905661
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Coil Voltage

230V

Product Type

Relay Module

Contact Configuration

SPDT

Mount Type

DIN Rail

Series

RIFLINE complete

Terminal Type

Screw

Switching Current

10mA

Minimum Operating Temperature

-40°C

Coil Current

4.5mA

Switching DC Voltage

250V dc

Switching AC Voltage

250V ac

Coil Type

Monostable

Maximum Operating Temperature

50°C

Contact Material

Silver Nickel Alloy

Width

16mm

Standards/Approvals

DNV GL, EN 60068-2-60, UL 508, DIN EN 50178, EAC

Height

90mm

Length

75mm

COO (Country of Origin):
CN

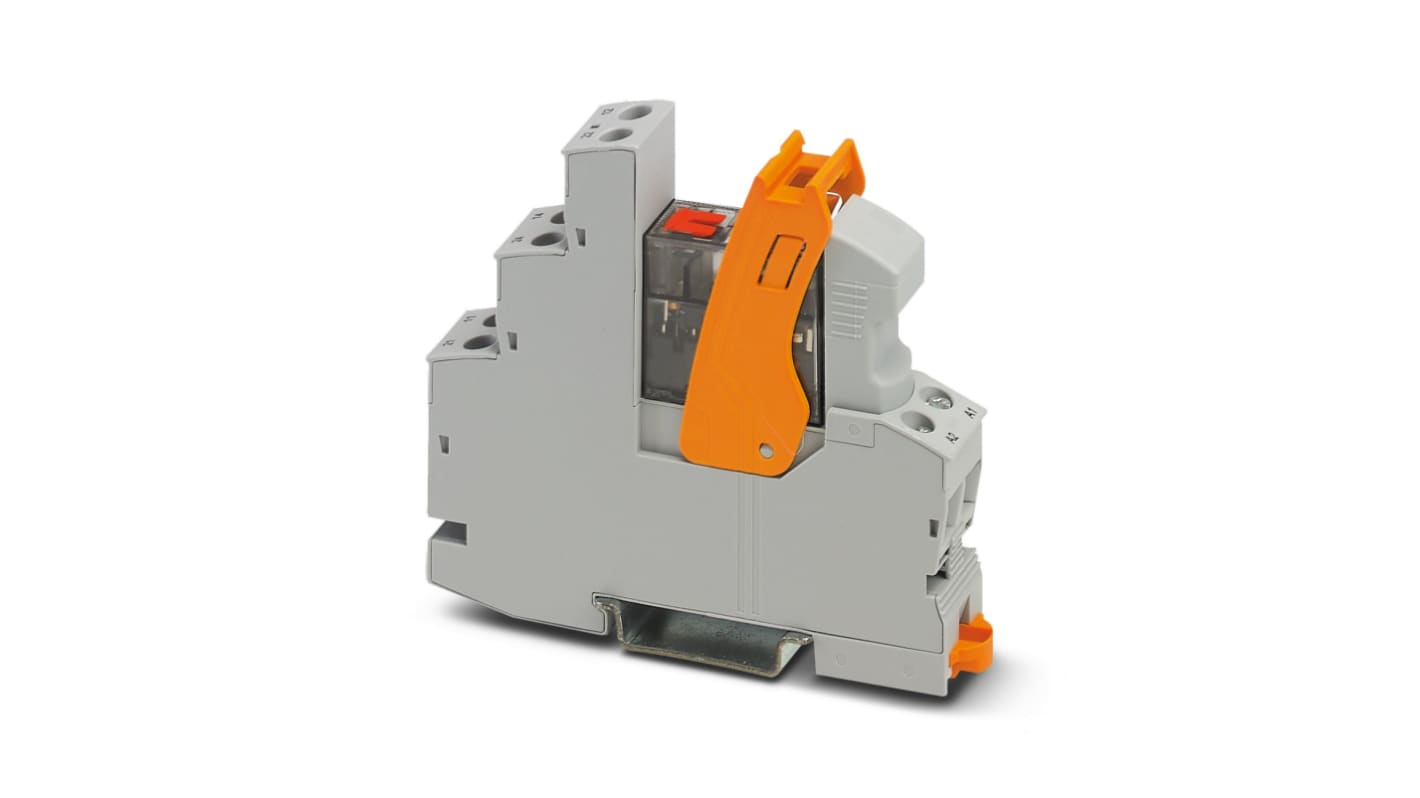

The Phoenix Contact Relay Module is a preassembled relay module with screw connection. It consists of a relay base, relay retaining bracket, plug-in interference suppression module, and power contact relay with a test button and integrated status LED. The module has 1 changeover contact and operates at an input voltage of 230V AC. It is designed for palm switch applications with a 100% operating factor and a mechanical service life of approximately 5x 106 cycles. With safe isolation between input and output and a rated surge voltage of 6kV, it offers reliable performance and protection. This relay module is suitable for use in various industrial applications.

Includes relay base, retaining bracket, suppression module

1 changeover contact for versatile switching

230 V AC input voltage for efficient operation

Safe isolation between input and output

Rated surge voltage of 6kV for protection
