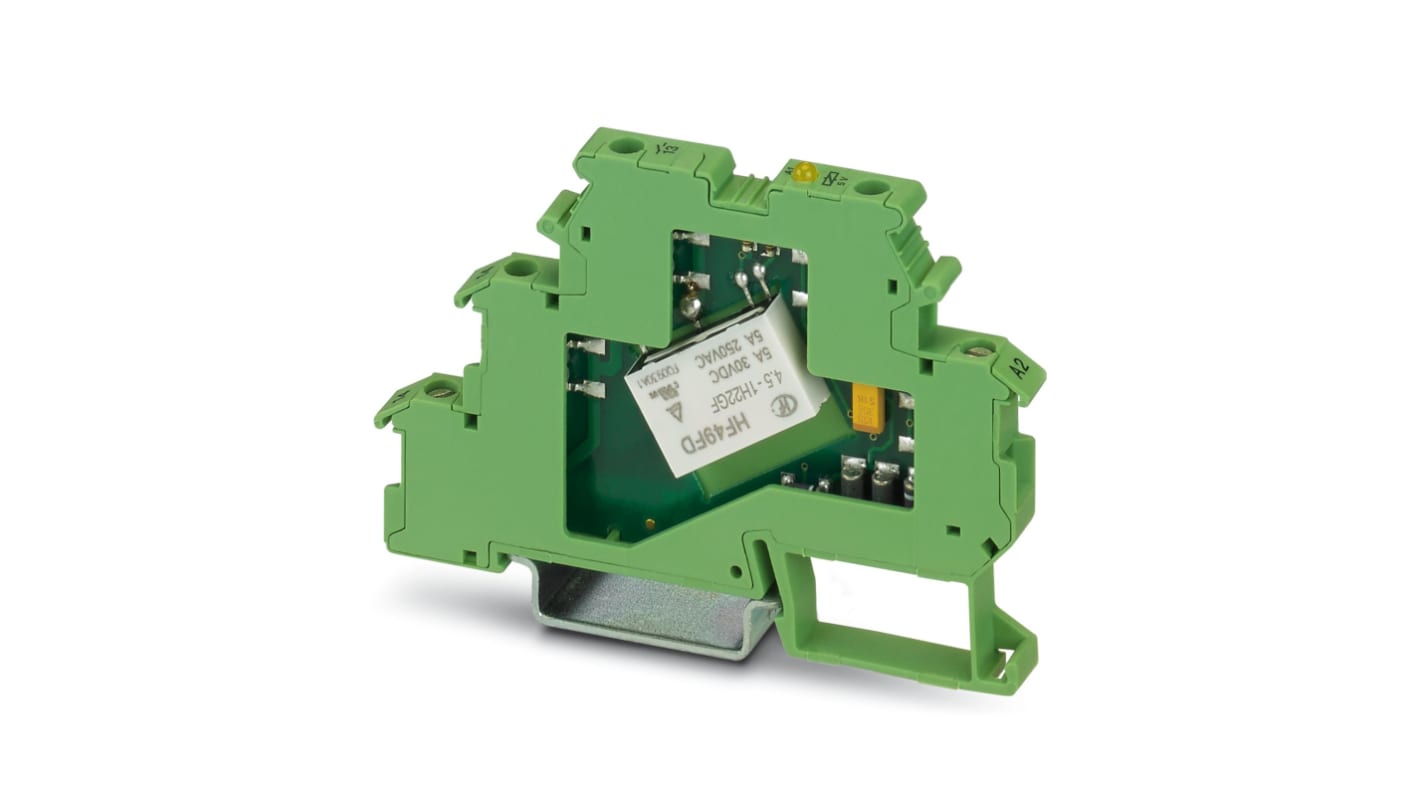

Phoenix Contact DEK Series Relay Module, DIN Rail, 5V Coil, SPST, 23mA
- RS Stock No.:
- 135-685
- Mfr. Part No.:
- 2941183
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£419.45
(exc. VAT)
£503.34
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £419.45 | £41.945 |
*price indicative
- RS Stock No.:
- 135-685
- Mfr. Part No.:
- 2941183
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Coil Voltage | 5V | |
| Product Type | Relay Module | |
| Contact Configuration | SPST | |
| Mount Type | DIN Rail | |
| Series | DEK | |
| Terminal Type | Screw | |
| Switching Current | 3A | |
| Switching AC Voltage | 250V ac | |
| Coil Current | 23mA | |
| Switching DC Voltage | 125V dc | |
| Minimum Operating Temperature | -20°C | |
| Contact Material | Gold Plated Silver Nickel | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | IEC 60947-5-1 | |
| Width | 6.2mm | |
| Height | 80mm | |
| Length | 56mm | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Coil Voltage 5V | ||
Product Type Relay Module | ||
Contact Configuration SPST | ||
Mount Type DIN Rail | ||
Series DEK | ||
Terminal Type Screw | ||
Switching Current 3A | ||
Switching AC Voltage 250V ac | ||
Coil Current 23mA | ||
Switching DC Voltage 125V dc | ||
Minimum Operating Temperature -20°C | ||
Contact Material Gold Plated Silver Nickel | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals IEC 60947-5-1 | ||
Width 6.2mm | ||
Height 80mm | ||
Length 56mm | ||
RoHS Status: Exempt
The Phoenix Contact relay module is designed to provide a reliable and efficient solution for small to medium loads. With a reduced need for additional terminal blocks, this module offers up to 73% more space and minimal wiring requirements. It features a 2-layer contact with hard gold plating for universal applications, integrated input circuit, and 2 kV electrical isolation between input and output. The compact design makes it suitable for various applications in industrial settings.
Cost-effective with no N terminal block
73% more installation space available
Minimized wiring requirements for simplicity
Hard gold plating for versatile use
Integrated input circuit for convenience
