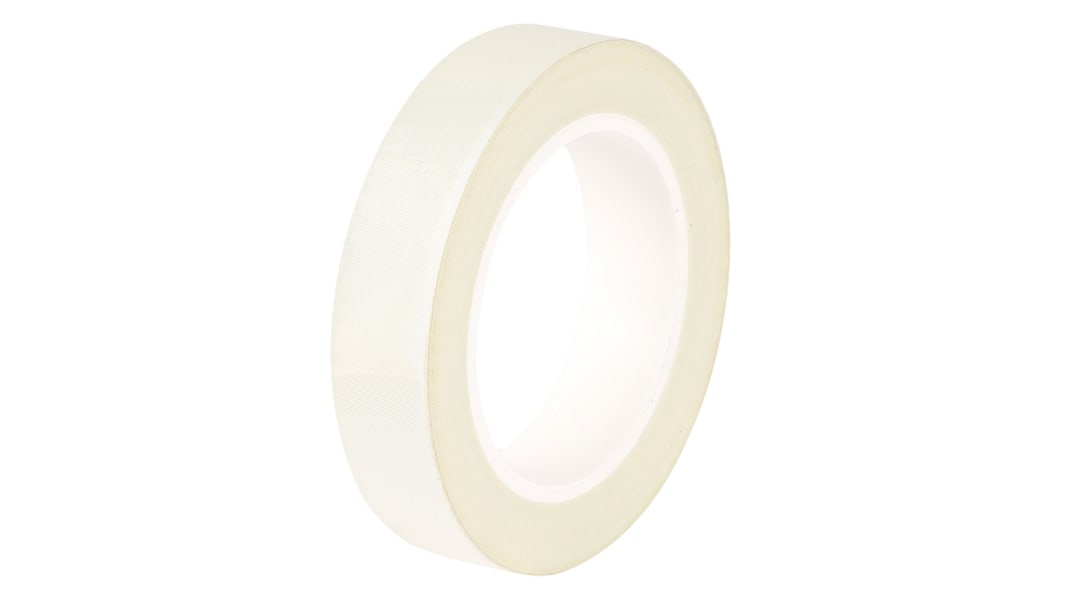

Advance Tapes AT4002 White Electrical Tape, 12mm x 55m

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Class F 155°C Glass Cloth Tape

A non-woven glass cloth with an acrylic adhesive used in electrical insulation of coils, insulation of square conductors in traction motors and generators and tensional strapping of coils and armature windings.

Acrylic adhesive
Recognised by UL
Conforms to BS EN 60454-3-8 Type 2
Very high temperature resistance
High mechanical strength
Available in 50m length rolls

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour White
Width 12mm
Length 55m
Backing Material Glass Cloth
Thickness 0.18mm
Maximum Operating Temperature +155°C
Trade Name AT4002
68 In stock for FREE next working day delivery
Price Each
£ 14.10
(exc. VAT)
£ 16.92
(inc. VAT)
Units
Per unit
1 - 5
£14.10
6 - 14
£13.53
15 +
£13.26
