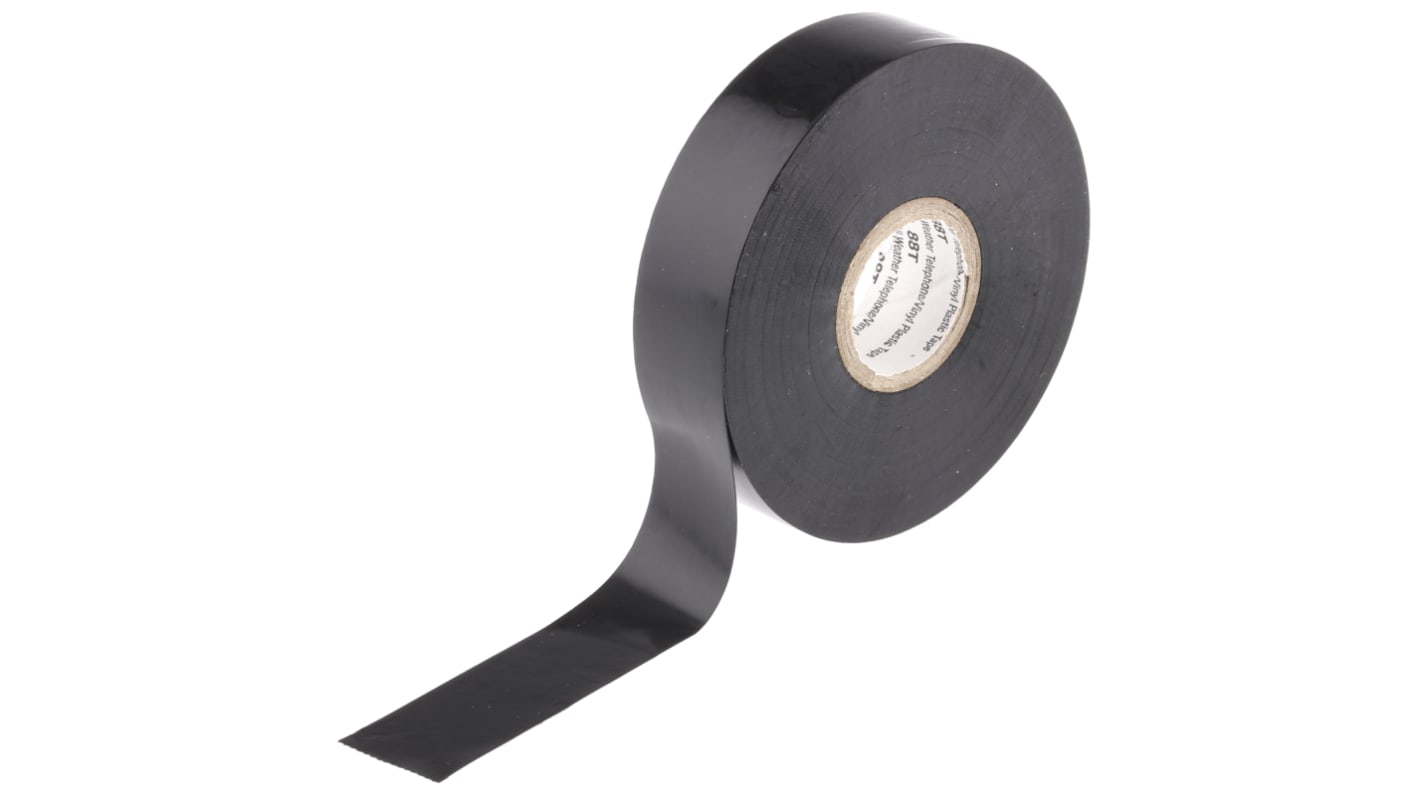

3M Scotch Super 88 Black Electrical Tape, 19mm x 13m

  • RS Stock No. 170-3261
  • Mfr. Part No. 84056/SCOTCH 88T
  • Brand 3M
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

3M™ Scotch® Vinyl Tape 88T

Scotch® All Weather Telephone Vinyl Plastic Tape 88T suits your needs for inside or outside plant applications, taping end caps, wrapping for abrasion protection or temporarily securing. The professional tape is long lasting, offering good flexibility for protection against moisture. The 8.5 mm thick PVC tape combines an elasticated backing and with an aggresive adhesive resistant to varying weather conditions.

Application

Designed to provide protection for low and high voltage applications for all wire and cable splices rated up to 600 V and 105°C. Scotch® Super 88™ Vinyl Electrical Tape isis to be applied in half lapped layers with sufficient tension. It provides excellent protection against abrasion, acids, alkalis and copper corrosion.
Suitable for cold weather down to -18°C, this tape remains highly conformable and flexible without becoming brittle. It keeps a high level of performance in ambient temperatures up to 38°C.
Super 33+ tape is UL, CSA Certified and RoHS Compliant.

Features and Benefits

Protection against mechanical damage For indoor and outdoor use
Extra robust

FAQ's

Can wires with exposed cables be made safe with this tape?

Yes, the electrical tape is designed for this purpose, but would recommended seek professional advice to deal with exposed wires.

Electrical Tapes

For electrical installation and repair work; soldered joints and seams; insulation of soldered joints, terminals, cable sockets and conduction rails.

Specifications
Attribute Value
Colour Black
Backing Material PVC
Width 19mm
Length 13m
Thickness 0.22mm
Minimum Operating Temperature -18°C
Maximum Operating Temperature +105°C
Adhesive Material Rubber
Trade Name Scotch Super 88
Adhesion Strength 2.7 N/cm
Elongation at Break 250%
Tensile Strength 35N/cm
Model Number Scotch™ Super 88
Breakdown Voltage 8750V
Discontinued product
