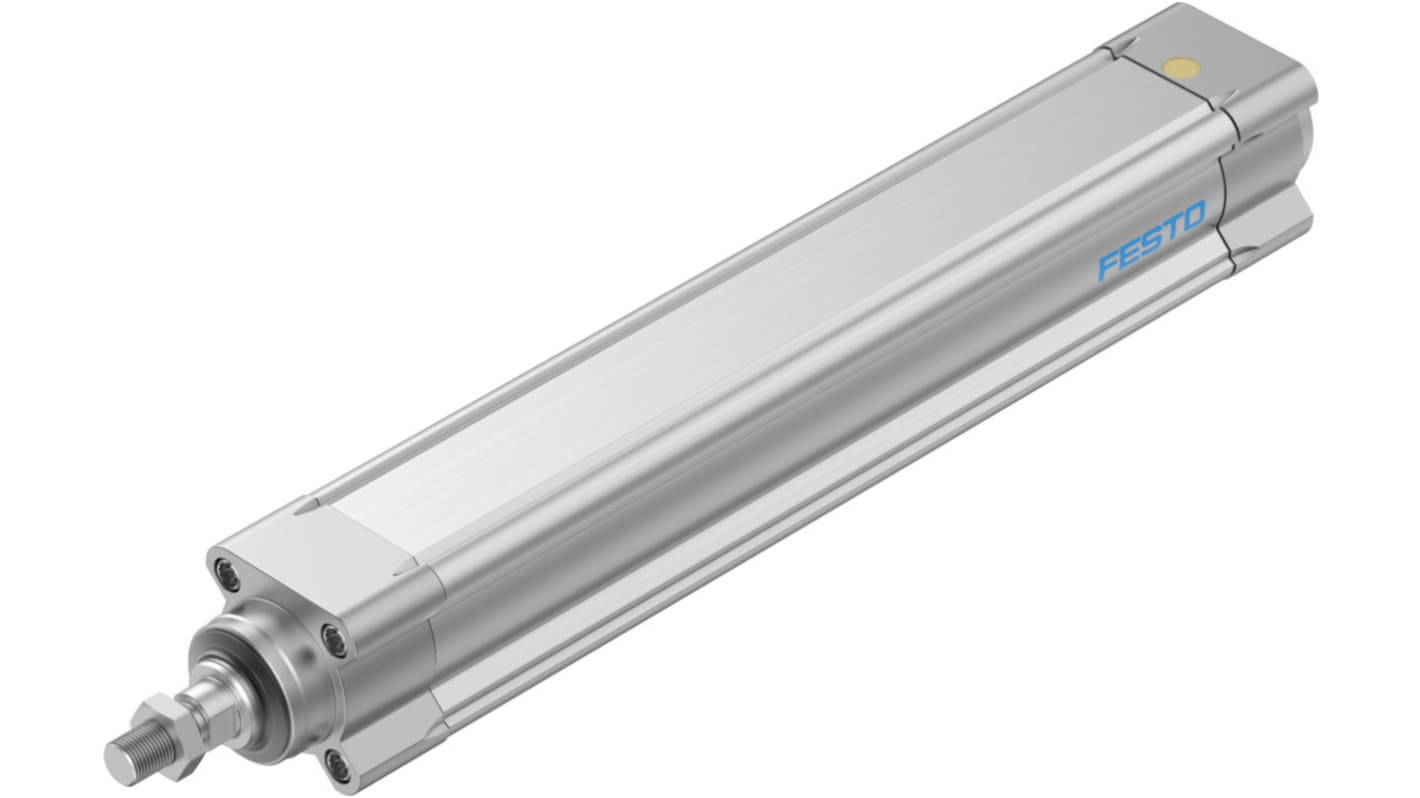

Festo Rod Linear Actuator, 300mm, 100kg, 150mm/s, 8022587
- RS Stock No.:
- 281-1120
- Mfr. Part No.:
- ESBF-LS-40-300-3P
- Brand:
- Festo
Subtotal (1 unit)*
£989.76
(exc. VAT)
£1,187.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £989.76 |
*price indicative
- RS Stock No.:
- 281-1120
- Mfr. Part No.:
- ESBF-LS-40-300-3P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Actuator Type | Rod Linear Actuator | |
| Maximum Stroke Length | 300mm | |
| Maximum Load | 100kg | |
| Series | ESBF | |
| Maximum Speed No Load | 150mm/s | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Model Number | 8022587 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Actuator Type Rod Linear Actuator | ||
Maximum Stroke Length 300mm | ||
Maximum Load 100kg | ||
Series ESBF | ||
Maximum Speed No Load 150mm/s | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 8022587 | ||
- COO (Country of Origin):
- DE
Festo ESBF Series Electric Linear Actuator, IP40, 100% Duty Cycle - ESBF-LS-40-300-3P, Numeric Part Number:8022587
This electric linear actuator offers precision motion control with a rod linear actuator configuration. It has a stroke length of 300mm and supports loads up to 1000N, making it essential in automation and mechanical systems.
Features & Benefits
• Compact design suitable for multiple mounting positions.
• High load capacity for efficient operation.
• Maximum speed of 150mm/s without load for enhanced performance.
• Integrated position detection for accurate control.
• Low backlash and good repetition accuracy promote reliability.
• RoHS-compliant materials ensure safe use in sensitive environments.
• High load capacity for efficient operation.
• Maximum speed of 150mm/s without load for enhanced performance.
• Integrated position detection for accurate control.
• Low backlash and good repetition accuracy promote reliability.
• RoHS-compliant materials ensure safe use in sensitive environments.
Applications
• Automation tasks in production lines.
• Robotic systems for effective operation.
• in the food industry.
• Testing and measurement equipment setups.
• Assembly operations requiring precise movement.
• Robotic systems for effective operation.
• in the food industry.
• Testing and measurement equipment setups.
• Assembly operations requiring precise movement.
What types of motors are compatible with the actuator?
The actuator works with stepper and servo motors, providing flexibility in your setup.
What is the temperature range for operation?
The actuator operates within an ambient temperature range of 0°C to 50°C.
Can it be used in a humid environment?
Yes, it is designed for environments with relative humidity levels from 0% to 95%.
