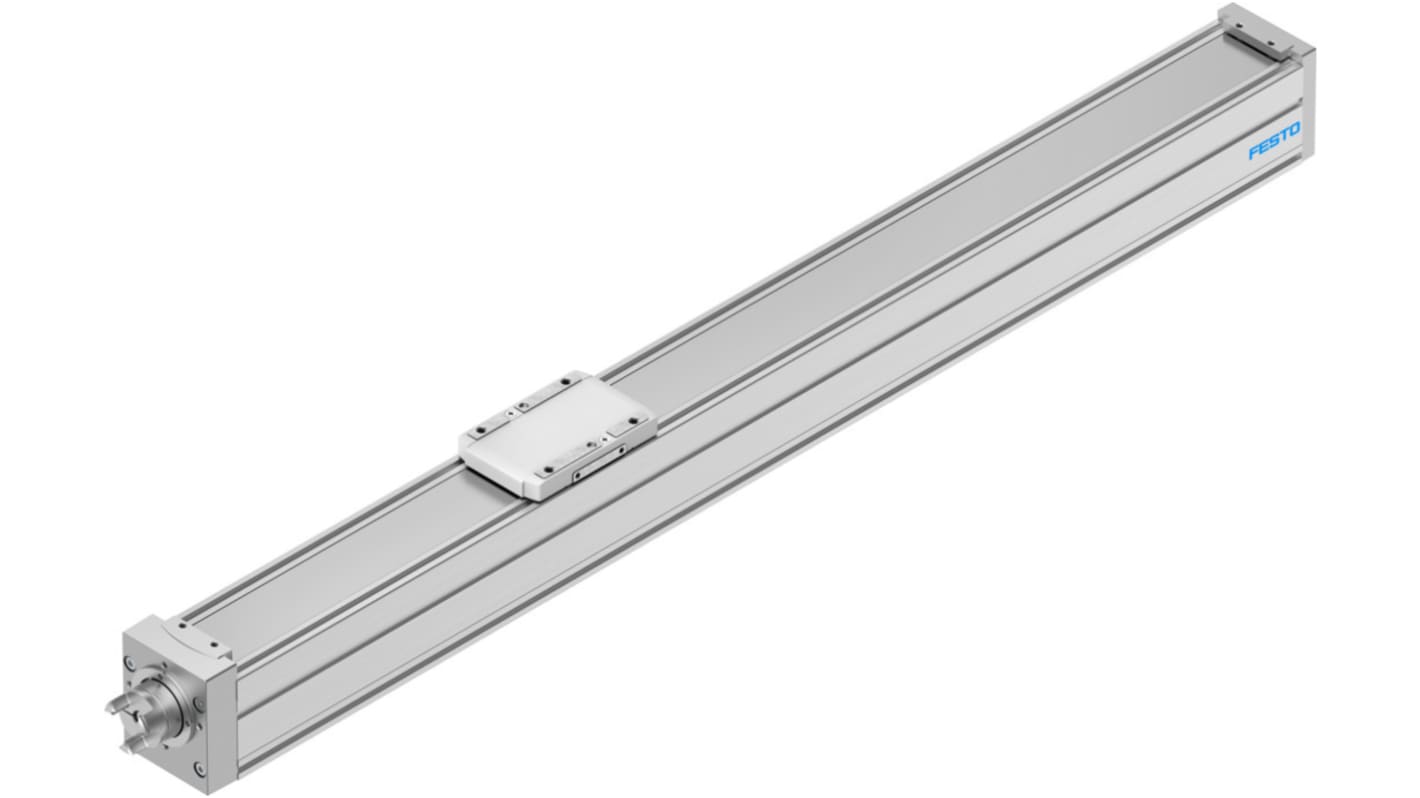

Festo Screw Driven Linear Actuator, 800mm, 800mm/s, 8061497
- RS Stock No.:
- 273-9535
- Mfr. Part No.:
- ELGC-BS-KF-60-800-12P
- Brand:
- Festo
Subtotal (1 unit)*
£870.06
(exc. VAT)
£1,044.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £870.06 |
*price indicative
- RS Stock No.:
- 273-9535
- Mfr. Part No.:
- ELGC-BS-KF-60-800-12P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Screw Driven Linear Actuator | |
Maximum Stroke Length | 800mm | |
Series | ELGC-BS | |
Maximum Speed No Load | 800mm/s | |
Maximum Force Lifting | 3641N | |
Motor Technology | Servo Motor, Stepper Motor | |
Duty Cycle | 100% | |
IP Rating | IP40 | |
Model Number | 8061497 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Screw Driven Linear Actuator | ||
Maximum Stroke Length 800mm | ||
Series ELGC-BS | ||
Maximum Speed No Load 800mm/s | ||
Maximum Force Lifting 3641N | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 8061497 | ||
- COO (Country of Origin):
- CN
Festo ELGC-BS Series Electric Linear Actuator, IP40, 1 Duty Cycle - ELGC-BS-KF-60-800-12P, Numeric Part Number:8061497
This electric linear actuator is tailored for high-performance use in industrial automation, delivering precise linear motion for tasks that require speed and accuracy. With a maximum stroke length of 800mm and a no-load speed of 800mm/s, it meets the precise requirements for a variety of mechanical and electrical operations, ensuring efficient performance in various environments.
Features & Benefits
• Stepper motor actuator facilitates precise positioning in workflows
• 800mm stroke length enhances operational versatility
• 100% duty cycle enables continuous operation for intensive tasks
• High-speed capability allows rapid movements without compromising accuracy
• Reversing backlash of 150μm ensures repeatability during cycles
• Designed for cleanroom Class 7 environments for sensitive tasks
• 800mm stroke length enhances operational versatility
• 100% duty cycle enables continuous operation for intensive tasks
• High-speed capability allows rapid movements without compromising accuracy
• Reversing backlash of 150μm ensures repeatability during cycles
• Designed for cleanroom Class 7 environments for sensitive tasks
Applications
• Ideal for precise positioning in automation systems
• Utilised in machinery that requires high-speed linear motion
• Suitable for in Li-ion battery production
• Employed in environments where cleanliness significantly impacts performance
• Appropriate for robotics needing accurate linear movements
• Utilised in machinery that requires high-speed linear motion
• Suitable for in Li-ion battery production
• Employed in environments where cleanliness significantly impacts performance
• Appropriate for robotics needing accurate linear movements
Can it operate at different speeds based on load?
Yes, the speed can adjust according to load conditions while maintaining accuracy.
What sensors are compatible for position detection?
It can use proximity switches or inductive sensors for effective position feedback.
How is maintenance managed for this actuator?
It features lifetime lubrication, minimising the need for regular maintenance.
Is it possible to mount it in various positions?
Yes, the actuator supports multiple mounting options to suit different installation needs.
What is the recommended storage temperature range?
The actuator can be stored at temperatures from -20°C to 60°C.
