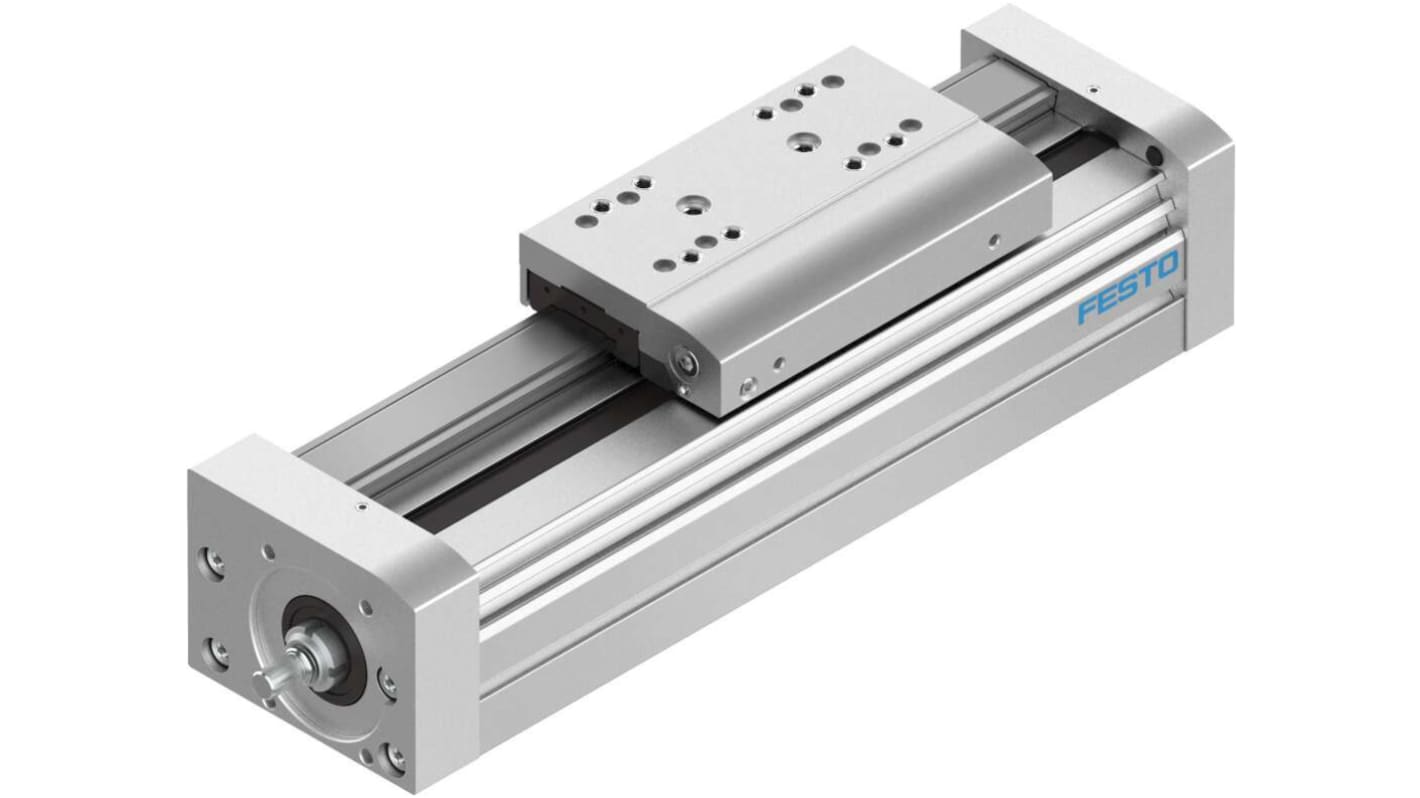

Festo Screw Driven Linear Actuator, 100mm, 750mm/s, 3013532
- RS Stock No.:
- 203-9581
- Mfr. Part No.:
- EGC-80-100-BS-10P-KF-0H-ML-GK
- Brand:
- Festo
Subtotal (1 unit)*
£1,538.40
(exc. VAT)
£1,846.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,538.40 |
*price indicative
- RS Stock No.:
- 203-9581
- Mfr. Part No.:
- EGC-80-100-BS-10P-KF-0H-ML-GK
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Actuator Type | Screw Driven Linear Actuator | |
| Maximum Stroke Length | 100mm | |
| Series | EGC-BS | |
| Maximum Speed No Load | 750mm/s | |
| Maximum Force Lifting | 3050N | |
| Motor Technology | Servo Motor, Stepper Motor | |
| Duty Cycle | 100% | |
| IP Rating | IP40 | |
| Model Number | 3013532 | |
Select all | ||
|---|---|---|
Brand Festo | ||
Actuator Type Screw Driven Linear Actuator | ||
Maximum Stroke Length 100mm | ||
Series EGC-BS | ||
Maximum Speed No Load 750mm/s | ||
Maximum Force Lifting 3050N | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 3013532 | ||
- COO (Country of Origin):
- DE
Festo Electric Linear Actuator, Spindle Axis, 100mm Stroke Length - EGC-80-100-BS-10P-KF-0H-ML-GK
For repeated high-precision interactions with workpieces along a fixed axis, choose this electric linear actuator from Festo. It has a recirculating ball bearing guide, so you can preload it to an exact specification and boost the accuracy of your system. Spindle support and a sturdy steel guide rail allow the slide to accelerate at a rate of up to 15mps² for designs where speed and quick reactions are essential. A spindle pitch of 10mm/U minimises energy wasted through noise by reducing friction between the spindle and the nut.
Features & Benefits
• Flexible motor mounting for use with stepper and servo motors
• Working stroke of 100mm for tasks that call for short-range precise movements
• IP40 rating indicates protection against solid objects as small as 1mm in size
• Housing made of anodised wrought aluminium alloy for protection against corrosion and wear
• Working stroke of 100mm for tasks that call for short-range precise movements
• IP40 rating indicates protection against solid objects as small as 1mm in size
• Housing made of anodised wrought aluminium alloy for protection against corrosion and wear
Applications
• Warehouses
• Factory automation
• Factory automation
What's the operating temperature range of this electric linear actuator?
The device broadly operates in temperatures between -10°C and +60°C for reliable use in demanding environments.
What's this actuator's maximum feed force?
The unit can handle a maximum feed force of 650N due to its optimised cross-section.
