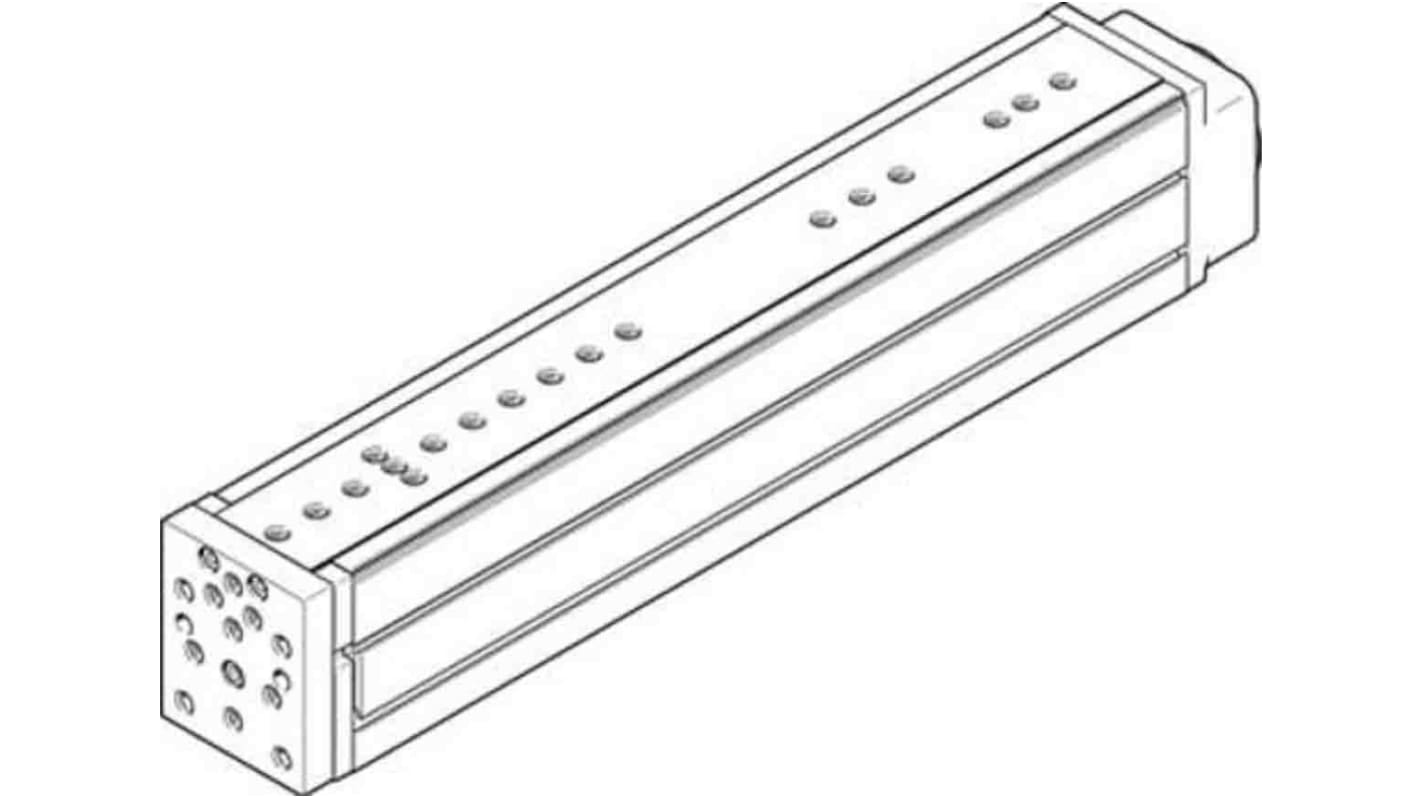

Festo Micro Linear Actuator, 300mm, 14kg, 1300mm/s, 559342
- RS Stock No.:
- 202-9682
- Mfr. Part No.:
- EGSL-BS-75-300-20P
- Brand:
- Festo
Subtotal (1 unit)*
£2,503.93
(exc. VAT)
£3,004.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2,503.93 |
*price indicative
- RS Stock No.:
- 202-9682
- Mfr. Part No.:
- EGSL-BS-75-300-20P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Micro Linear Actuator | |
Maximum Stroke Length | 300mm | |
Maximum Load | 14kg | |
Series | EGSL | |
Maximum Speed No Load | 1300mm/s | |
Maximum Force Lifting | 555N | |
Motor Technology | Servo Motor, Stepper Motor | |
Duty Cycle | 100% | |
IP Rating | IP40 | |
Model Number | 559342 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Micro Linear Actuator | ||
Maximum Stroke Length 300mm | ||
Maximum Load 14kg | ||
Series EGSL | ||
Maximum Speed No Load 1300mm/s | ||
Maximum Force Lifting 555N | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 559342 | ||
- COO (Country of Origin):
- DE
Festo EGSL Series Electric Linear Actuator, IP40, 100% Duty Cycle - EGSL-BS-75-300-20P, Numeric Part Number:559341
This electric linear actuator is created for precision and reliability in automation tasks. With a stroke length of 300mm and a maximum load capacity of 14kg, it is essential for enhancing efficiency in various industrial applications. Its rod linear design ensures smooth operation, making it suitable for users in the electrical, electronics, and mechanical sectors.
Features & Benefits
• Load capacity of up to 14kg
• Excellent parallelism for precise movement
• Maximum speed of 1.3m/s for quick operation
• Integrated ball screw drive for increased durability
• Life-time lubrication reduces maintenance needs
• Operating temperature range of 0 to 60°C for flexibility
• Excellent parallelism for precise movement
• Maximum speed of 1.3m/s for quick operation
• Integrated ball screw drive for increased durability
• Life-time lubrication reduces maintenance needs
• Operating temperature range of 0 to 60°C for flexibility
Applications
• Precise positioning in automated systems
• Material handling and assembly processes
• Laboratory equipment and testing setups
• Robotic for accurate actuation
• Machinery requiring linear movement
• Material handling and assembly processes
• Laboratory equipment and testing setups
• Robotic for accurate actuation
• Machinery requiring linear movement
What type of motor is utilised in this product?
It is equipped with either a stepper motor or a servo motor, offering flexible control options.
How does the proximity switch work for position detection?
The proximity switch detects the actuator's position, providing accurate feedback during operation.
What is the maximum acceleration achievable?
The actuator can achieve a maximum acceleration of 25m/s², enabling swift movements.
Is it suitable for outdoor applications?
This actuator has an IP40 rating, making it more appropriate for controlled indoor environments rather than outdoor use.
What maintenance is required for optimal performance?
The actuator features life-time lubrication, minimising maintenance requirements throughout its operational lifespan.
