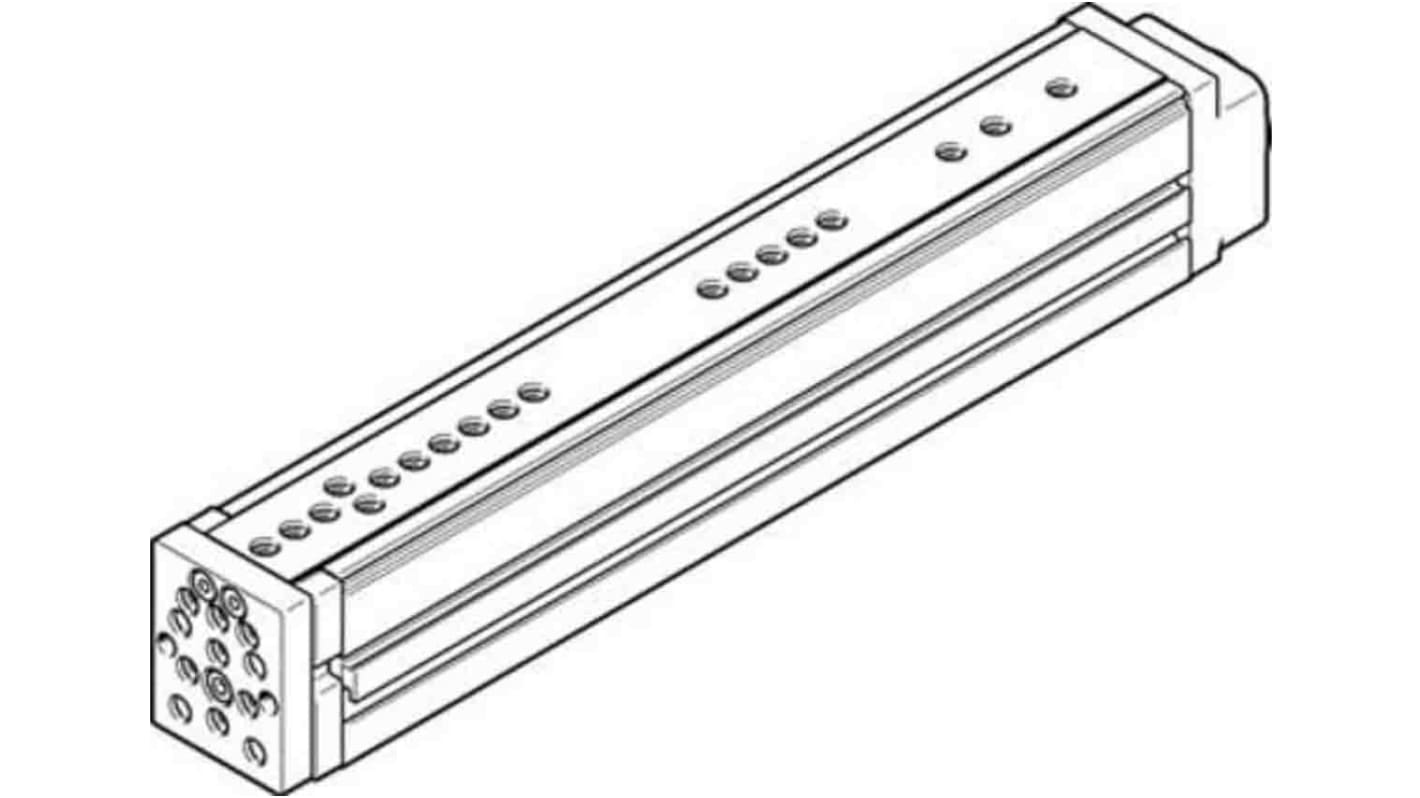

Festo Rod Linear Actuator, 200mm, 6kg, 300mm/s, 562226
- RS Stock No.:
- 202-9656
- Mfr. Part No.:
- EGSL-BS-45-200-3P
- Brand:
- Festo
Subtotal (1 unit)*
£1,816.89
(exc. VAT)
£2,180.27
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,816.89 |
*price indicative
- RS Stock No.:
- 202-9656
- Mfr. Part No.:
- EGSL-BS-45-200-3P
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Rod Linear Actuator | |
Maximum Stroke Length | 200mm | |
Maximum Load | 6kg | |
Series | EGSL | |
Maximum Speed No Load | 300mm/s | |
Maximum Force Lifting | 291N | |
Motor Technology | Servo Motor, Stepper Motor | |
Duty Cycle | 100% | |
IP Rating | IP40 | |
Model Number | 562226 | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Rod Linear Actuator | ||
Maximum Stroke Length 200mm | ||
Maximum Load 6kg | ||
Series EGSL | ||
Maximum Speed No Load 300mm/s | ||
Maximum Force Lifting 291N | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number 562226 | ||
- COO (Country of Origin):
- DE
Festo EGSL Series Electric Linear Actuator, 200mm Maximum Stroke Length, 6kg Maximum Load - EGSL-BS-45-200-3P, Numeric Part Number:562226
This electric linear actuator is a rod linear actuator designed for efficiency and precision, featuring a maximum stroke length of 200mm. This robust actuator supports a maximum load of 6kg, making it an ideal solution for various applications in industrial automation. Its compact design allows for versatile positioning and easy integration into existing systems.
Features & Benefits
• Incorporates both servo and stepper motor technology for optimal control
• Achieves a maximum speed of 300mm/s under no load for high performance
• Offers a duty cycle of 100%, ensuring continuous operation
• Delivers precise positioning with a repetition accuracy of ±0.015mm
• Exhibits excellent parallelism with deviations as low as 0.1mm
• Constructed with corrosion-resistant materials for longevity in demanding environments
• Achieves a maximum speed of 300mm/s under no load for high performance
• Offers a duty cycle of 100%, ensuring continuous operation
• Delivers precise positioning with a repetition accuracy of ±0.015mm
• Exhibits excellent parallelism with deviations as low as 0.1mm
• Constructed with corrosion-resistant materials for longevity in demanding environments
Applications
• Used for precise linear movements in robotics
• Ideal for pick-and-place systems in manufacturing
• Employed in automated assembly lines for improved efficiency
• Suitable for laboratory automation requiring precise control
• Commonly implemented in electronic testing equipment
• Ideal for pick-and-place systems in manufacturing
• Employed in automated assembly lines for improved efficiency
• Suitable for laboratory automation requiring precise control
• Commonly implemented in electronic testing equipment
What types of motors are compatible with this actuator?
This actuator is compatible with both servo and stepper motors, allowing for flexible integration depending on the application requirements.
Can it operate in different mounting positions?
Yes, the mounting position of this device is optional, providing versatility in installation based on specific operational needs.
What is the maximum acceleration it can achieve?
The actuator can handle a maximum acceleration of 25 m/s², ensuring responsive performance in dynamic applications.
How does the actuator ensure accurate positioning?
Position detection is facilitated via a proximity switch, ensuring reliable and precise corrections during operation.
What materials are used in its construction for durability?
The actuator is made from a combination of die-cast aluminium, rolled steel, and anodised components, providing strength and resistance to corrosion.
