Festo Electromechanical, 200mm, 1100N, 1330mm/s, ELGD-BS-KF-WD-100-200-0H-10P-L
- RS Stock No.:
- 341-864
- Mfr. Part No.:
- ELGD-BS-KF-WD-100-200-0H-10P-L
- Brand:
- Festo
Subtotal (1 unit)*
£903.48
(exc. VAT)
£1,084.18
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 16 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £903.48 |
*price indicative
- RS Stock No.:
- 341-864
- Mfr. Part No.:
- ELGD-BS-KF-WD-100-200-0H-10P-L
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Actuator Type | Electromechanical | |
Maximum Stroke Length | 200mm | |
Maximum Load | 1100N | |
Series | ELGD | |
Maximum Speed No Load | 1330mm/s | |
Maximum Force Lifting | 4400N | |
Motor Technology | Servo Motor, Stepper Motor | |
Duty Cycle | 100% | |
IP Rating | IP40 | |
Model Number | ELGD-BS-KF-WD-100-200-0H-10P-L | |
Select all | ||
---|---|---|
Brand Festo | ||
Actuator Type Electromechanical | ||
Maximum Stroke Length 200mm | ||
Maximum Load 1100N | ||
Series ELGD | ||
Maximum Speed No Load 1330mm/s | ||
Maximum Force Lifting 4400N | ||
Motor Technology Servo Motor, Stepper Motor | ||
Duty Cycle 100% | ||
IP Rating IP40 | ||
Model Number ELGD-BS-KF-WD-100-200-0H-10P-L | ||
- COO (Country of Origin):
- DE

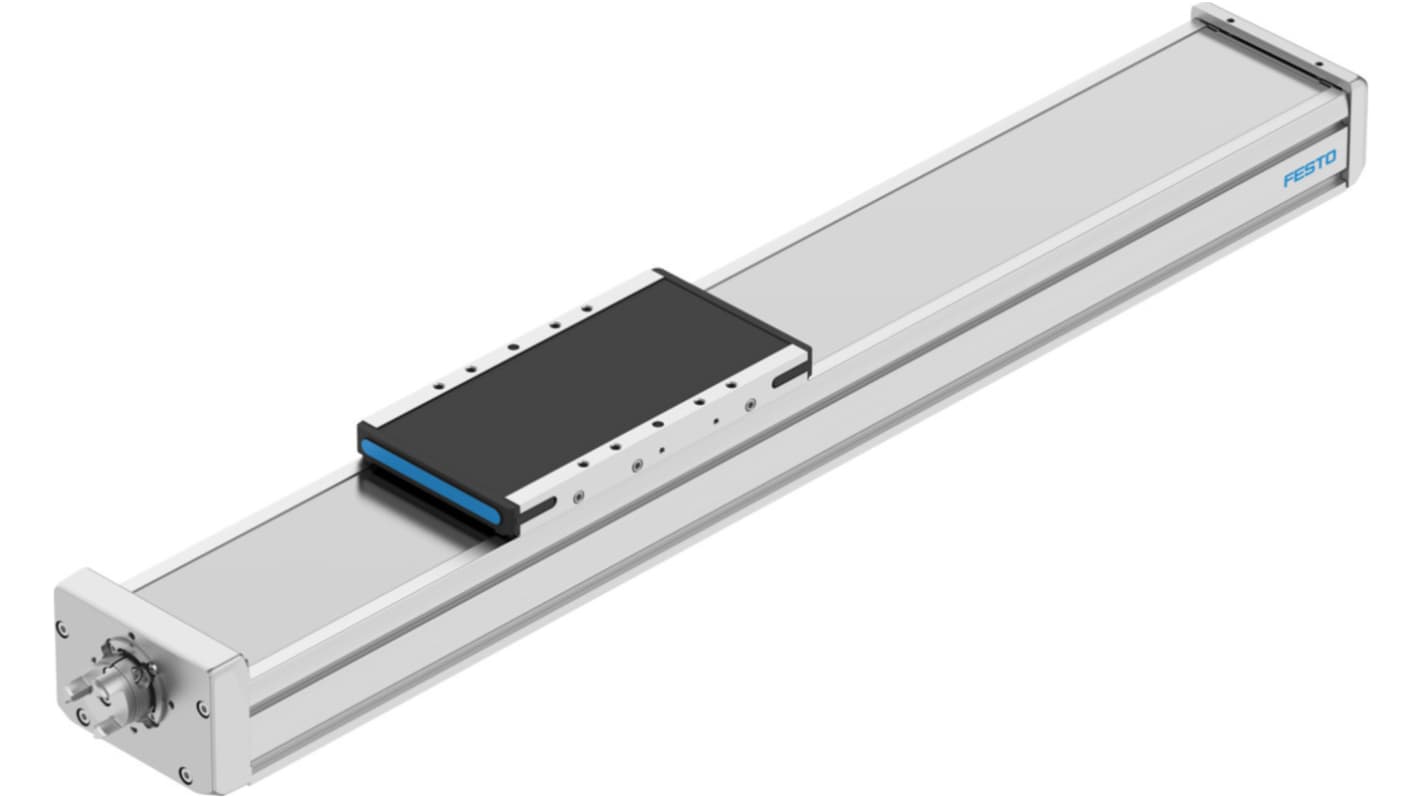

Festo ELGD Series Electric Linear Actuator, 200mm Maximum Stroke Length, 1100N Maximum Load - ELGD-BS-KF-WD-100-200-0H-10P-L, Numeric Part Number:8192321
This electric linear actuator is an efficient electromechanical device designed for precision movement in automation applications. With a maximum stroke length of 200 mm and a maximum load capacity of 1100 N, this actuator provides reliable performance in various industrial settings. It features advanced servo and stepper motor technology, as well as an IP40 rating for protection against solids, ensuring durability and functionality in diverse environments.
Features & Benefits
• Capable of achieving speeds of up to 1330 mm/s for rapid operations
• Designed with a recirculating ball bearing guide for smooth motion
• High maximum lifting force of 4400 N, suitable for demanding tasks
• Maintenance-free due to lifetime lubrication ensuring long-term use
• Compact design with optional mounting positions for versatile installation
• Integrated position detection using inductive sensors for precise control
• Designed with a recirculating ball bearing guide for smooth motion
• High maximum lifting force of 4400 N, suitable for demanding tasks
• Maintenance-free due to lifetime lubrication ensuring long-term use
• Compact design with optional mounting positions for versatile installation
• Integrated position detection using inductive sensors for precise control
Applications
• Utilised in automated assembly systems for efficient material handling
• Employed in robotics for accurate positioning and movement
• Used in the production of lithium-ion batteries for effective performance
• Incorporated in conveyor systems for seamless integration and movement control
• Employed in robotics for accurate positioning and movement
• Used in the production of lithium-ion batteries for effective performance
• Incorporated in conveyor systems for seamless integration and movement control
What is the maximum speed and load capacity for this actuator?
The actuator can reach a maximum speed of 1.33 m/s while supporting loads of up to 1100 N, making it suitable for high-speed applications.
How does the actuator maintain accuracy in positioning?
Position detection is facilitated by inductive sensors, ensuring repeatability with an accuracy of ±0.01 mm during operation.
What are the thermal operating limits for this actuator?
It can operate in ambient temperatures ranging from 0 °C to 60 °C, accommodating various industrial environments.
What type of motor technology is incorporated in this actuator?
This actuator is equipped with both stepper and servo motor options, allowing for flexible usage according to application requirements.
