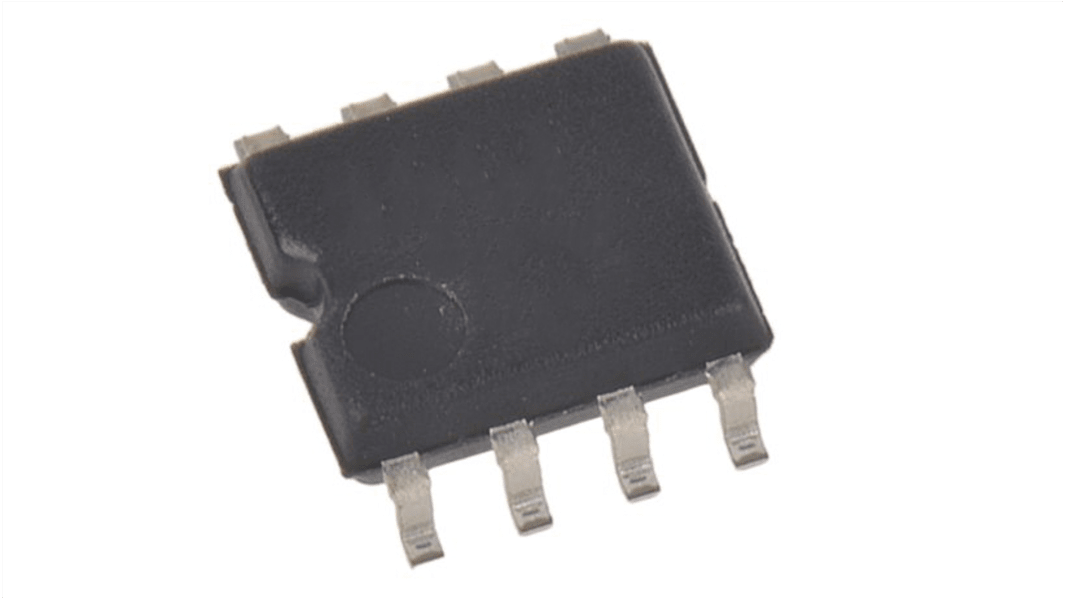

ROHM BR25H128FJ-5ACE2, 128kbit Serial EEPROM Memory, 20ns 8-Pin SOP-J SPI
- RS Stock No.:
- 246-3867
- Mfr. Part No.:
- BR25H128FJ-5ACE2
- Brand:
- ROHM
Subtotal (1 reel of 2500 units)*
£1,070.00
(exc. VAT)
£1,285.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
---|---|---|
2500 + | £0.428 | £1,070.00 |
*price indicative
- RS Stock No.:
- 246-3867
- Mfr. Part No.:
- BR25H128FJ-5ACE2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Memory Size | 128kbit | |
Interface Type | SPI | |
Package Type | SOP-J | |
Mounting Type | Surface Mount, Through Hole | |
Pin Count | 8 | |
Organisation | 16K x 8 bit | |
Minimum Operating Supply Voltage | 1.7 V | |
Maximum Operating Supply Voltage | 5.5 V | |
Programming Voltage | 1.7 to 5.5V | |
Number of Bits per Word | 8bit | |
Dimensions | 4.9 x 3.9 x 1.38mm | |
Number of Words | 16k | |
Maximum Operating Temperature | +125 °C | |
Minimum Operating Temperature | -40 °C | |
Automotive Standard | AEC-Q100 | |
Maximum Random Access Time | 20ns | |
Data Retention | 100yr | |
Select all | ||
---|---|---|
Brand ROHM | ||
Memory Size 128kbit | ||
Interface Type SPI | ||
Package Type SOP-J | ||
Mounting Type Surface Mount, Through Hole | ||
Pin Count 8 | ||
Organisation 16K x 8 bit | ||
Minimum Operating Supply Voltage 1.7 V | ||
Maximum Operating Supply Voltage 5.5 V | ||
Programming Voltage 1.7 to 5.5V | ||
Number of Bits per Word 8bit | ||
Dimensions 4.9 x 3.9 x 1.38mm | ||
Number of Words 16k | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Automotive Standard AEC-Q100 | ||
Maximum Random Access Time 20ns | ||
Data Retention 100yr | ||
The ROHM BR25H128 series is a 128 Kbit serial EEPROM works at wide limit of operating voltage of 1.7 V to 5.5 V, frequency of 20 MHZ, have SPI bus interface and can be used in airbag, ABS and ECU applications.
AEC-Q100 qualified
SPI bus mode
64 byte write lockable identification page
Address auto increment function at read operation
Auto erase and auto end function at data rewrite
Write protect block setting by software memory array 1/4, 1/2, whole
SPI bus mode
64 byte write lockable identification page
Address auto increment function at read operation
Auto erase and auto end function at data rewrite
Write protect block setting by software memory array 1/4, 1/2, whole
