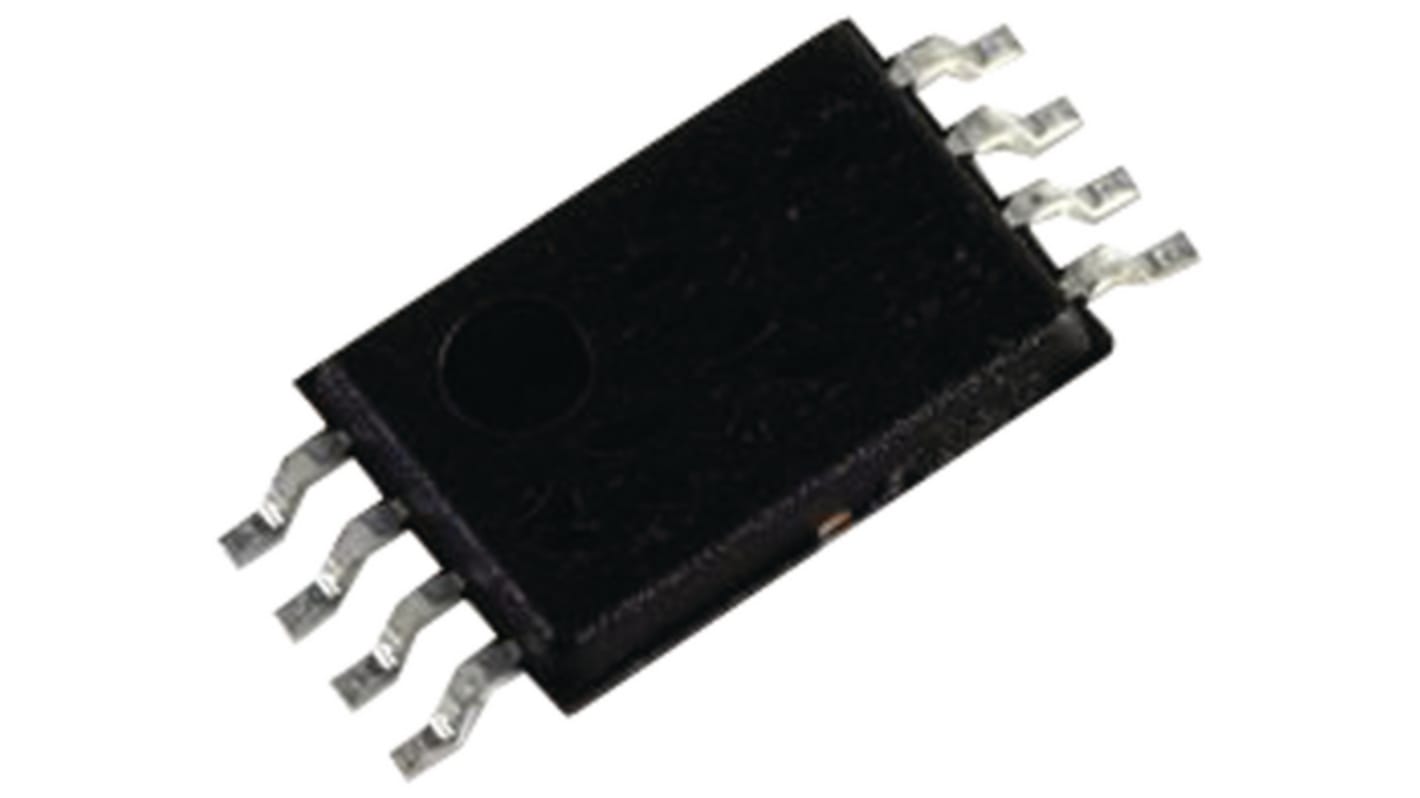

STMicroelectronics M95M04-DWDW4TP/V, 4Mbit EEPROM Memory, 40ns 8-Pin TSSOP Serial-SPI

View all EEPROM
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
228-3004
Mfr. Part No.:
M95M04-DWDW4TP/V
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Memory Size

4Mbit

Interface Type

Serial-SPI

Package Type

TSSOP

Mounting Type

Surface Mount

Pin Count

8

Organisation

512K x 8 bit

Minimum Operating Supply Voltage

2.9 V

Maximum Operating Supply Voltage

5.5 V

Programming Voltage

2.9 → 5.5V

Number of Bits per Word

8bit

Dimensions

3.1 x 6.6 x 1mm

Minimum Operating Temperature

-40 °C

Number of Words

512k

Data Retention

10yr

Maximum Random Access Time

40ns

Automotive Standard

AEC-Q100

Maximum Operating Temperature

+125 °C

The STMicroelectronics M95M04-A125 and M95M04-A145 are 4 Mbit serial EEPROM automotive grade devices operating up to 145 °C. They are compliant with the very high level of reliability defined by the automotive standard AEC-Q100 grade 0. The M95M04-A125 and M95M04-A145 offer an additional identification page (512 bytes) in which the ST device identification can be read. This page can also be used to store sensitive application parameters that can later be permanently locked in read-only mode.

Maximum clock frequency 10 MHz full range of VCC
Schmitt trigger inputs for noise filtering
Short write cycle time
Byte write within 4 ms
Page write within 4 ms
ESD Protection (human body model) 4000 V
