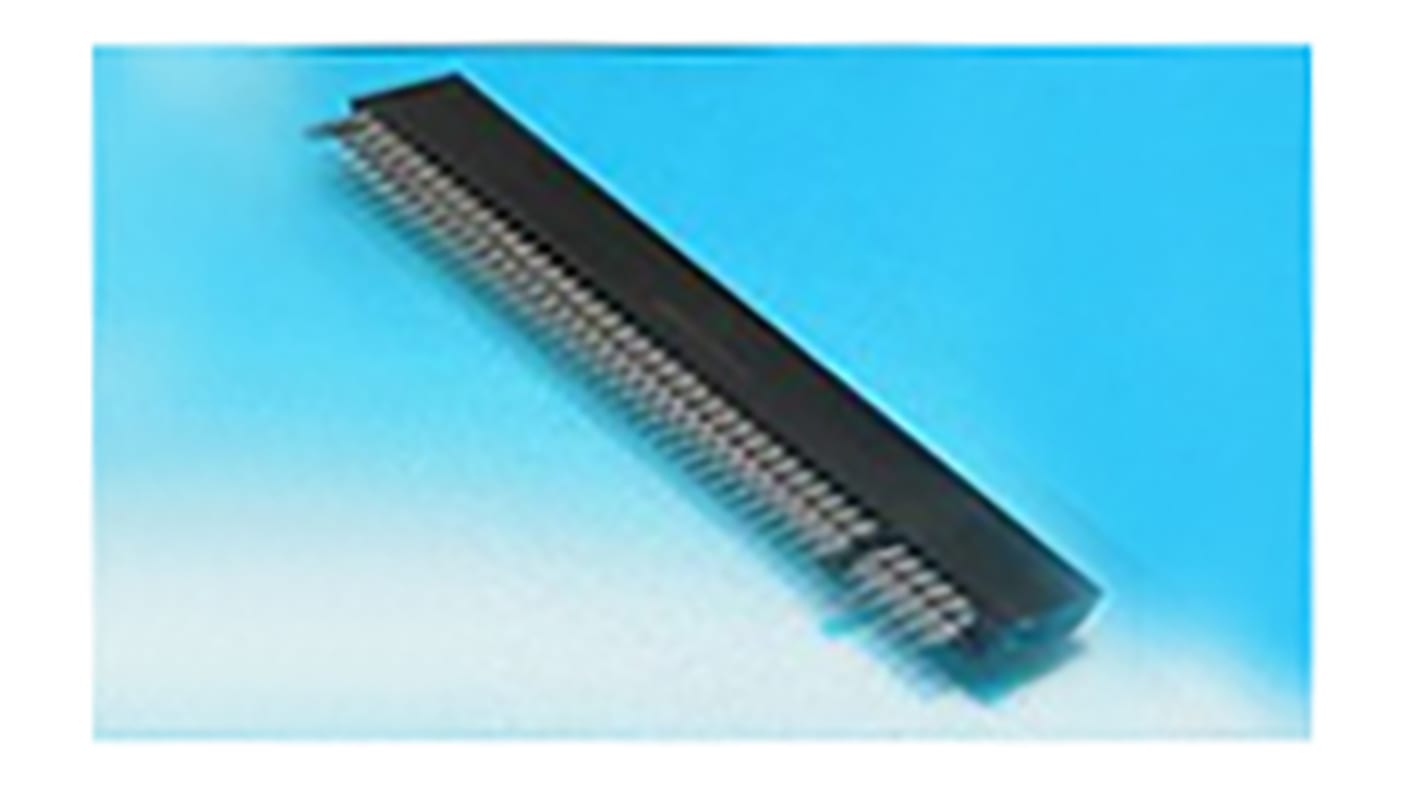

TE Connectivity, Standard Edge II FemalePCBEdge Connector, Through Hole Mount, 31 (Dual) Way, 2 Row, 2.54mm Pitch, 3A


Available to back order for despatch 30/12/2020
Add to Basket

Price Each (In a Pack of 324)

£2.10

(exc. VAT)

£2.52

(inc. VAT)

Units

Added

RS Stock No.:
864-3605
Mfr. Part No.:
6-5530843-5
Brand:
TE Connectivity
COO (Country of Origin):
CN
UnitsPer unitPer Pack*
324 +£2.10£680.40
*price indicative

TE Connectivity Standard Edge II Card Edge Connectors


Standard Edge II 2.54 mm high current card edge connectors with a low profile industry standard package designed for high reliability and economy. These Standard Edge II card connectors are designed to connect a daughter card to a motherboard. The contacts of these edge card connectors have a bifurcated cantilever design and are made from selectively gold plated precision formed phosphor bronze for extra strength and electrical reliability. These Standard Edge II 2.54 mm card edge connectors feature intercontact keying slots located in the card slot into which a keying plug can be inserted. This feature ensures a proper orientation with the mating daughter card which must also be slotted to accept the keying plug. The keying plug is available separately (see stock number 718-8407). Connectors with part numbers 1489162-x, 5645169-x and 5645235-x have an arrangement of kinked solder legs for a secure retention to the PCB during soldering.


Features and Benefits


• Highly reliable and economical
• Industry standard package
• Low profile design
• Bifurcated gold plated phosphor bronze contacts for strength and high reliability
• Intercontact keying slots for accurate orientation of card
• Versions available with kinked solder legs for secure retention to PCB


Product Application Information


These Standard Edge II 2.54 mm Card Edge Connectors are suitable for use in DC to DC converters low wattage power supplies, industrial grade card extenders and general low-cost I/O applications that require durable/rugged card edge contacts


Edge Connectors - TE

AttributeValue
Body OrientationStraight
GenderFemale
Number of Contacts31 (Dual)
Number of Rows2
Pitch2.54mm
Mounting TypeThrough Hole
Termination MethodSolder
Contact PlatingGold over Nickel
Contact MaterialPhosphor Bronze
Current Rating3A
Voltage Rating400 V ac
Housing MaterialGlass Filled Polyester
SeriesStandard Edge II
Minimum Operating Temperature-55°C
Width9.35mm
Series Number5530843
Length85.34mm
Depth15.49mm
Maximum Operating Temperature+85°C
