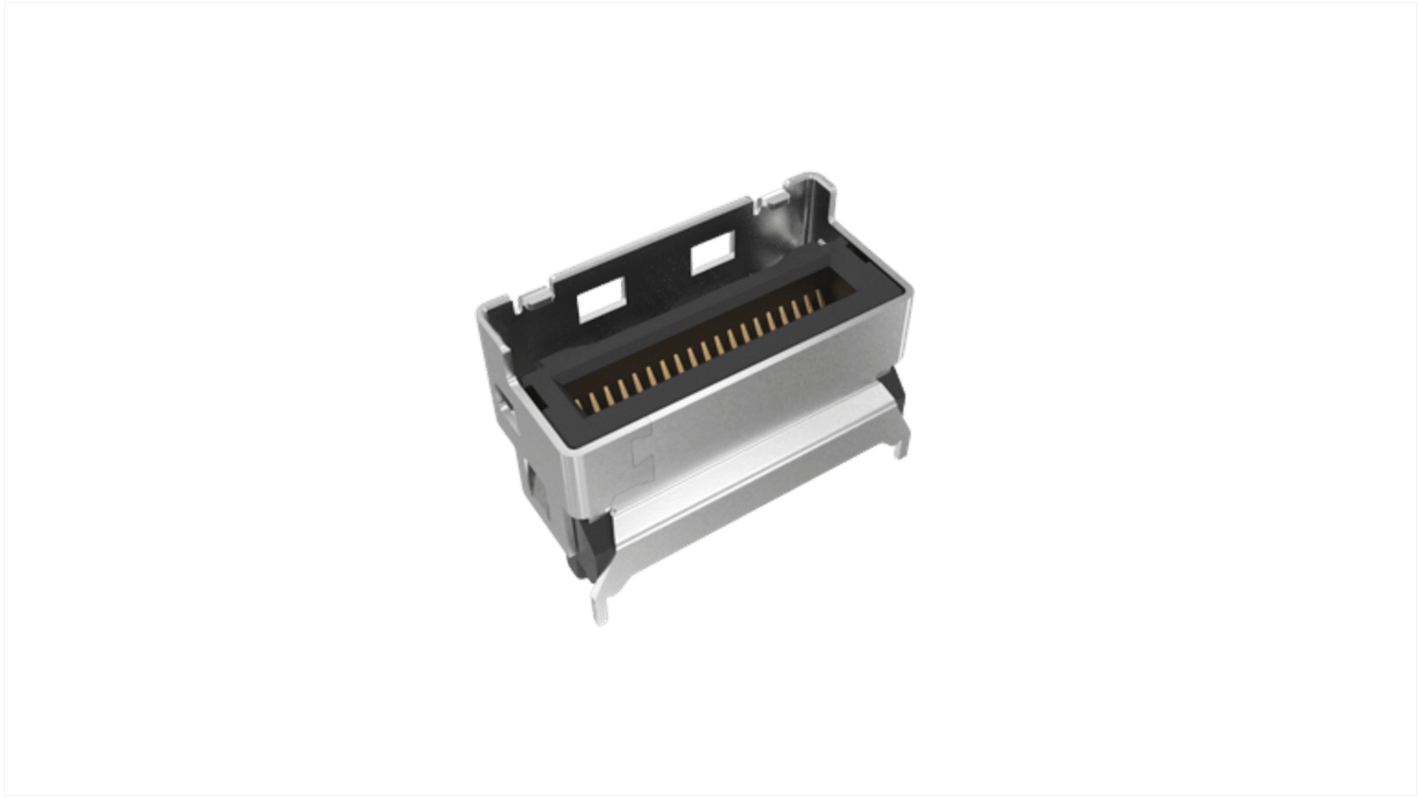

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel, 74-Contacts, 0.6 mm Pitch

RS Stock No.:: 244-0423
Mfr. Part No.:: G98V11312HR
Brand:: Amphenol Communications Solutions

Amphenol Communications Solutions Mini Cool Edge IO Series Vertical Edge Connector, Panel, 74-Contacts, 0.6 mm Pitch

Subtotal (1 reel of 200 units)*

£497.20

(exc. VAT)

£596.60

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Reel*
200 +	£2.486	£497.20

*price indicative

RS Stock No.:: 244-0423
Mfr. Part No.:: G98V11312HR
Brand:: Amphenol Communications Solutions

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Amphenol Communications Solutions
	Product Type	Edge Connector
	Orientation	Vertical
	Number of Contacts	74
	Pitch	0.6mm
	Mount Type	Panel
	Contact Plating	Gold over Nickel
	Contact Material	Copper Alloy
	Minimum Operating Temperature	-55°C
	Keying Way	No
	Voltage	300 V
	Maximum Operating Temperature	85°C
	Housing Material	Thermoplastic
	Standards/Approvals	RoHS, UL
	Series	Mini Cool Edge IO
	Card Type	PCIe

	Select all
	Brand Amphenol Communications Solutions
	Product Type Edge Connector
	Orientation Vertical
	Number of Contacts 74
	Pitch 0.6mm
	Mount Type Panel
	Contact Plating Gold over Nickel
	Contact Material Copper Alloy
	Minimum Operating Temperature -55°C
	Keying Way No
	Voltage 300 V
	Maximum Operating Temperature 85°C
	Housing Material Thermoplastic
	Standards/Approvals RoHS, UL
	Series Mini Cool Edge IO
	Card Type PCIe

Datasheet - G98V11312HR

COO (Country of Origin):: CN

The Amphenol ICC Mini Cool Edge IO Connector provides a SI performance ready signal transmission but also a new way of system design that is cost-effective, highly modular, scalable, and extremely easy to repair. It supports both cable and card edge connection. It has copper alloy contact base metal and contact area finish is gold over nickel.

0.60 mm pitch, vertical and right angle configurations

Slim form factor for compact data center system designs

Up to 56Gb/s PAM4, PCIe Gen 4, PCIe Gen 5, over 1.0 meter transmission distance

Supports both cable and card edge applications with one identical connector

Provides flexibility in system design to meet highly modular, scalable and easy-to-repair requirements
