Molex 2008 Series Right Angle Edge Connector, Edge, 6-Contacts, 2 mm Pitch, Straddle Mount

View all Edge Connectors

Subtotal (1 bag of 600 units)*

£165.79

(exc. VAT)

£198.95

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Bag(s)
Per Bag
Per unit*
1 +£165.79£0.276

*price indicative

RS Stock No.:
683-664
Mfr. Part No.:
200890-0206
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Product Type

Edge Connector

Orientation

Right Angle

Number of Contacts

6

Pitch

2mm

Mount Type

Edge

Termination Type

Straddle Mount

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

105°C

Standards/Approvals

RoHS Compliant

Series

2008

COO (Country of Origin):
KR

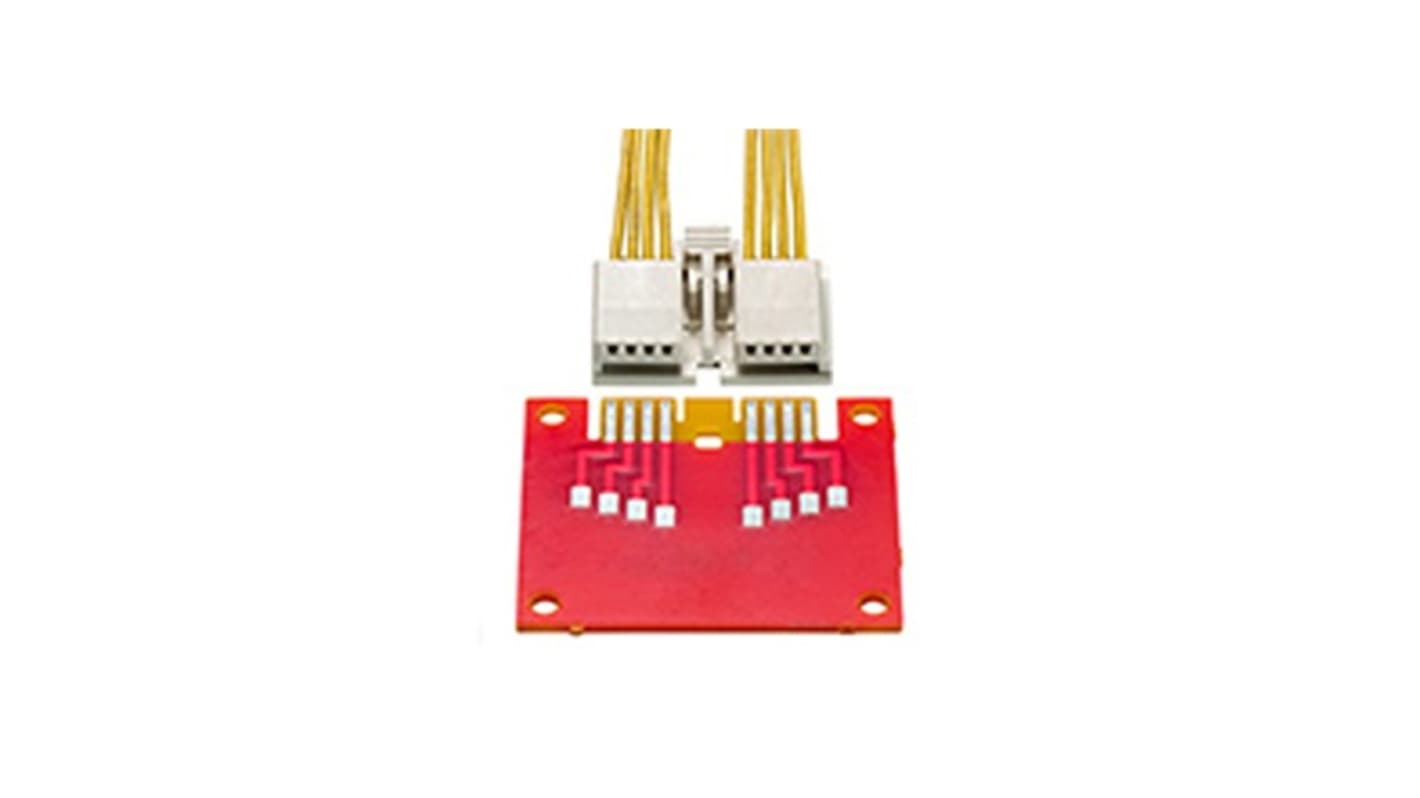

The Molex Edge Lock Wire-to-Board Edge Card Connector offers a robust solution for reliable signal transmission in electronic devices. Designed specifically for a 2.00mm pitch with a 1.20mm PCB thickness, this connector caters to the diverse needs of modern applications. Its natural nylon construction ensures durability while meeting low-hazard environmental standards. The connector supports up to 6 circuits and is rated for a maximum current of 3.0A, making it ideal for various electronic designs. Additionally, the Edge Lock connector is compliant with UL E29179 and RoHS directives, reinforcing its safety and environmental credentials in today's market. For more precise configurations, it accommodates right-angle orientations, enhancing installation flexibility.

Durability of up to 30 mating cycles for long-term reliability

Utilizes straddle mount termination interface for efficient space management

Flammability rating of 94V-0 for added safety in high-performance applications

Net weight of 2.139g contributes to lightweight design considerations
