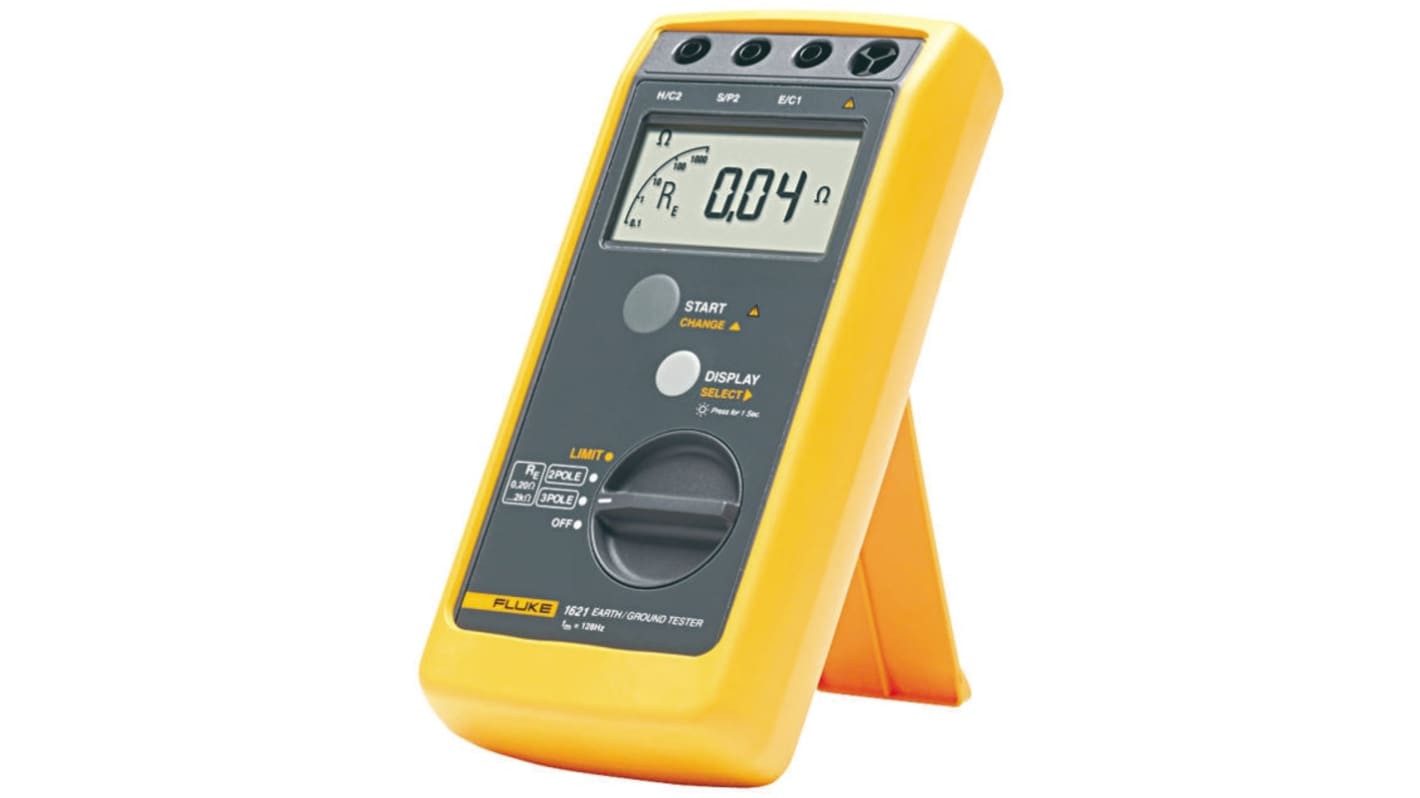

Fluke 1621 Earth & Ground Resistance Tester, 2kΩ CAT II 600 V
- RS Stock No.:
- 399-101
- Mfr. Part No.:
- FLUKE-1621
- Brand:
- Fluke
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£169.86
(exc. VAT)
£203.83
(inc. VAT)
- RS Stock No.:
- 399-101
- Mfr. Part No.:
- FLUKE-1621
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Absolute Maximum Resistance Measurement | 2kΩ | |
| Best Accuracy | ±6% + 5 Digits | |
| Measurement Type | 2 Pole AC Resistance, 3 Pole Earth Resistance, Interference Voltage | |
| Display Type | LCD | |
| Safety Category | CAT II 600 V | |
| Battery Type | 9V | |
| Power Source | Battery | |
| Dimensions | 216 x 113 x 54mm | |
| Weight | 850g | |
| Height | 216mm | |
| Includes | Holster, Software, Test Lead, User Manual | |
| Length | 54mm | |
| Maximum Operating Temperature | +35°C | |
| Model Number p | 1621 | |
| Width | 113mm | |
| Minimum Operating Temperature | 0°C | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Absolute Maximum Resistance Measurement 2kΩ | ||
Best Accuracy ±6% + 5 Digits | ||
Measurement Type 2 Pole AC Resistance, 3 Pole Earth Resistance, Interference Voltage | ||
Display Type LCD | ||
Safety Category CAT II 600 V | ||
Battery Type 9V | ||
Power Source Battery | ||
Dimensions 216 x 113 x 54mm | ||
Weight 850g | ||
Height 216mm | ||
Includes Holster, Software, Test Lead, User Manual | ||
Length 54mm | ||
Maximum Operating Temperature +35°C | ||
Model Number p 1621 | ||
Width 113mm | ||
Minimum Operating Temperature 0°C | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- RO
Fluke 1621 Earth Ground Tester
An extremely easy-to-use ground resistance tester, ideal for checking ground connections safely and reliably
To perform earth ground tests, the instrument uses basic methods such as the 3-pole "fall-of-potential" test and the 2-pole ground resistance test.
Its small size, robust holster and large, clear LCD display help to make it the ideal instrument for most electrical grounding work environments.
With its simple and intuitive interface, the FLUKE 1621 is a handy instrument for electrical contractors and specialist technicians.
To perform earth ground tests, the instrument uses basic methods such as the 3-pole "fall-of-potential" test and the 2-pole ground resistance test.
Its small size, robust holster and large, clear LCD display help to make it the ideal instrument for most electrical grounding work environments.
With its simple and intuitive interface, the FLUKE 1621 is a handy instrument for electrical contractors and specialist technicians.
Performance of 3-pole "fall of potential" test for basic measurements
2-pole ground resistance measurements for unparalleled versatility
Easily captures values with single-button operation
Ensures accurate measurements with automatic voltage "noise" detection
The hazardous voltage warning offers increased user protection
Large, backlit display for clear reading and recording of data
Robust holster designed for tough working environments
Small size allows for easy transportation
Instant alert to measurements outside the limits set by the user
Uses a 9 V alkaline battery (LR61)
Measuring rate: 2 measurements per second
Measurement time: 8 seconds (on average from pressing the START button)
Protection class: IP40
CAT II 600 V
2-pole ground resistance measurements for unparalleled versatility
Easily captures values with single-button operation
Ensures accurate measurements with automatic voltage "noise" detection
The hazardous voltage warning offers increased user protection
Large, backlit display for clear reading and recording of data
Robust holster designed for tough working environments
Small size allows for easy transportation
Instant alert to measurements outside the limits set by the user
Uses a 9 V alkaline battery (LR61)
Measuring rate: 2 measurements per second
Measurement time: 8 seconds (on average from pressing the START button)
Protection class: IP40
CAT II 600 V
Supplied with
Two 2 m measuring leads with crocodile clips, one 9 V alkaline battery (LR61), one yellow protective holster and one CD-ROM
