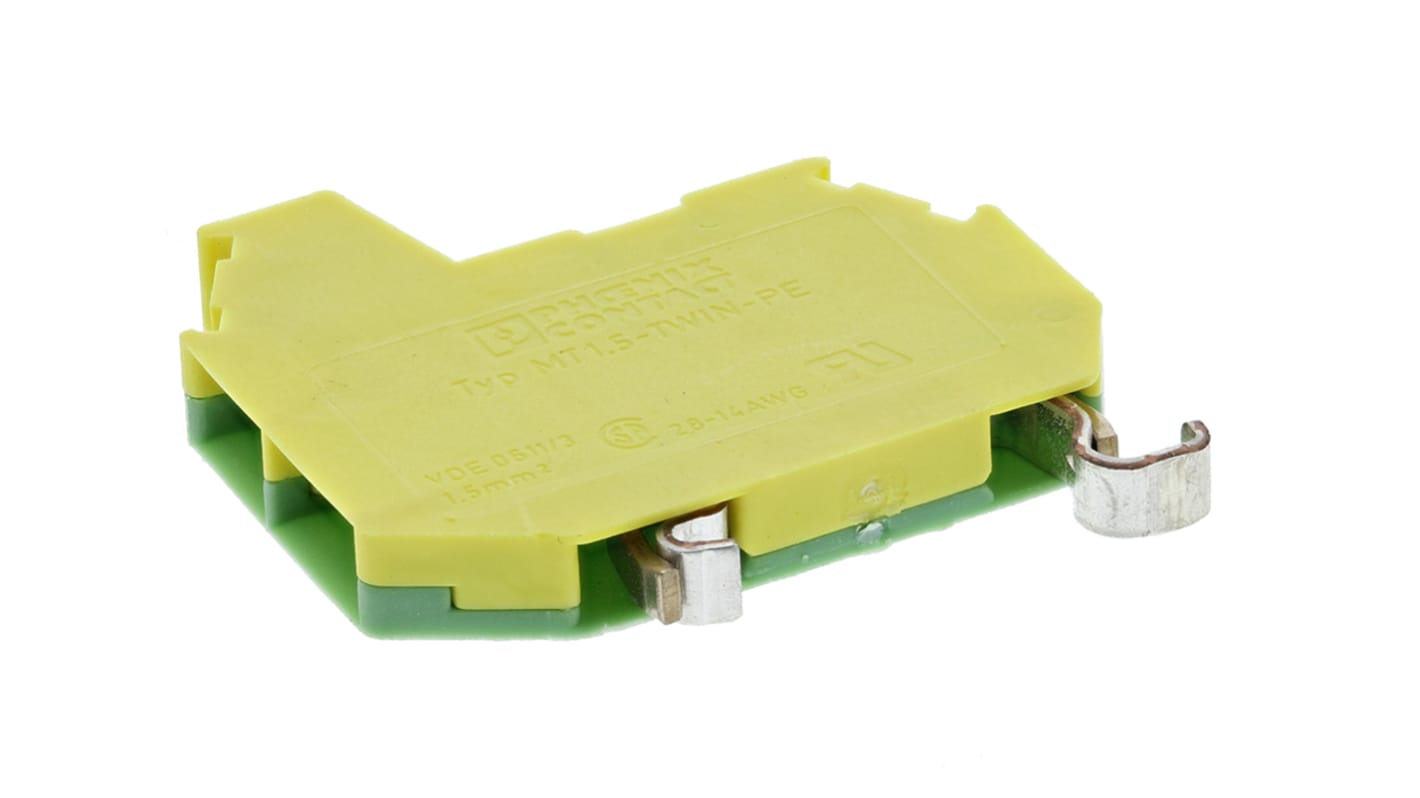

Phoenix Contact 3-Way MT1.5-TWIN-PE Earth Terminal Block, 26 → 16 AWG Wire, Screw Down, Polyamide Housing
- RS Stock No.:
- 869-102
- Mfr. Part No.:
- 3001705
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£21.72
(exc. VAT)
£26.065
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 40 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £4.344 | £21.72 |
*price indicative
- RS Stock No.:
- 869-102
- Mfr. Part No.:
- 3001705
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Earth Block Type | MT1.5-TWIN-PE | |
| Wire Size | 26 → 16 AWG | |
| Number of Ways | 3 | |
| Termination Method | Screw Down | |
| Housing Material | Polyamide | |
| Length | 28mm | |
| Width | 4.2mm | |
| Height | 30mm | |
| Maximum Operating Temperature | +130°C | |
| Minimum Operating Temperature | -60°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Earth Block Type MT1.5-TWIN-PE | ||
Wire Size 26 → 16 AWG | ||
Number of Ways 3 | ||
Termination Method Screw Down | ||
Housing Material Polyamide | ||
Length 28mm | ||
Width 4.2mm | ||
Height 30mm | ||
Maximum Operating Temperature +130°C | ||
Minimum Operating Temperature -60°C | ||
1-In 2-Out Terminal
Phoenix Contact range of feedthrough DIN rail terminals for connecting one cable input to two outputs.
Note
The cable csa detailed applies to both solid and stranded wire construction.
