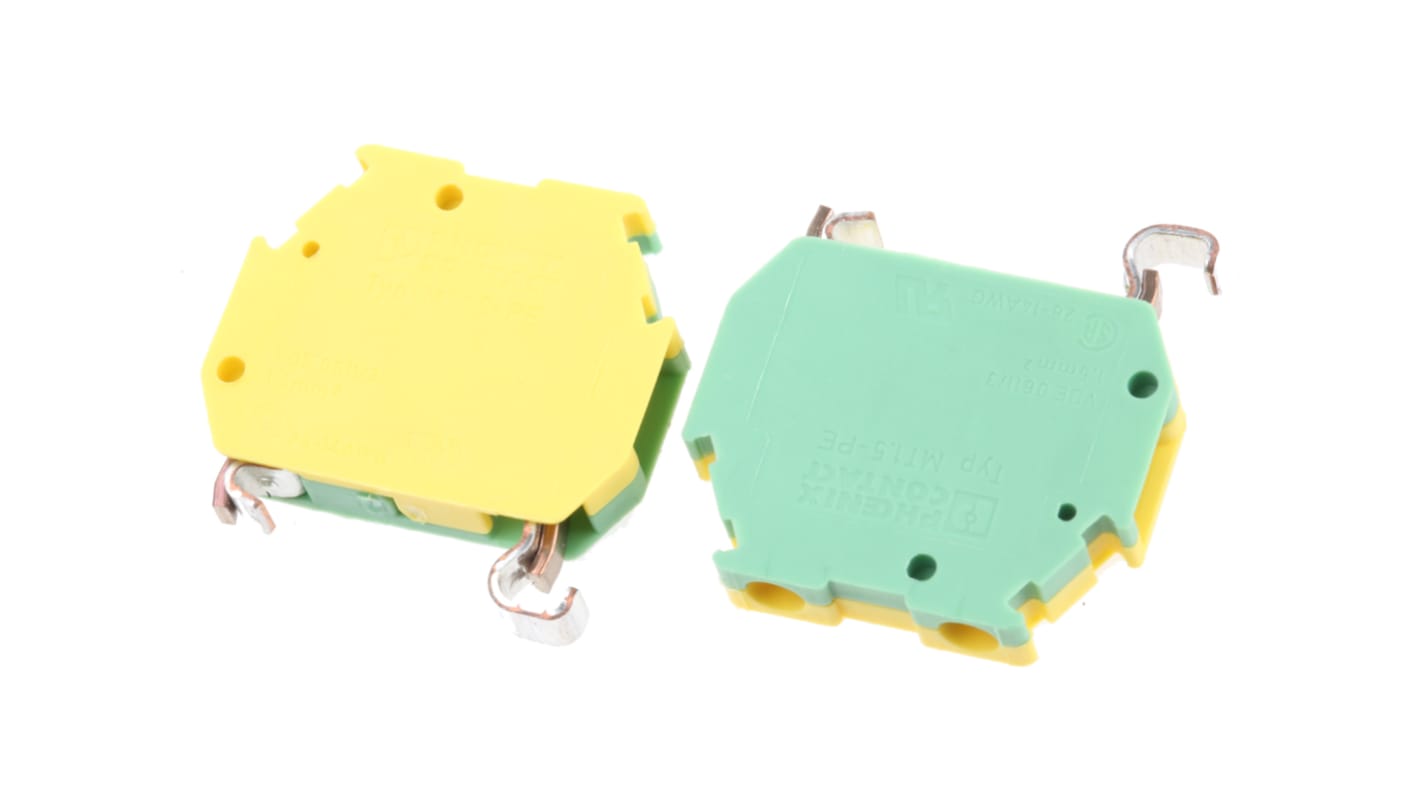

Phoenix Contact 2-Way MT1.5-PE Earth Terminal Block, 26 → 16 AWG Wire, Screw Down, Polyamide Housing
- RS Stock No.:
- 869-095
- Mfr. Part No.:
- 3100318
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£16.56
(exc. VAT)
£19.87
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 285 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £3.312 | £16.56 |
*price indicative
- RS Stock No.:
- 869-095
- Mfr. Part No.:
- 3100318
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Earth Block Type | MT1.5-PE | |
| Wire Size | 26 → 16 AWG | |
| Number of Ways | 2 | |
| Termination Method | Screw Down | |
| Housing Material | Polyamide | |
| Length | 22mm | |
| Width | 4.2mm | |
| Height | 23.5mm | |
| Maximum Operating Temperature | +130°C | |
| Minimum Operating Temperature | -60°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Earth Block Type MT1.5-PE | ||
Wire Size 26 → 16 AWG | ||
Number of Ways 2 | ||
Termination Method Screw Down | ||
Housing Material Polyamide | ||
Length 22mm | ||
Width 4.2mm | ||
Height 23.5mm | ||
Maximum Operating Temperature +130°C | ||
Minimum Operating Temperature -60°C | ||
- COO (Country of Origin):
- TR
Standard and Earth Terminals
These compact terminals from Phoenix Contact allow for complex switching tasks in confined spaces. Mounted on TS15 RS 467-349. These terminals have a pitch of just 4.2mm.
End clamp is available to purchase separately.
End clamp is available to purchase separately.
Note
The cable csa detailed applies to both solid and stranded wire construction.
