Introducing the 3M™ 5451, this is a premium PTFE Glass tape that offers a slick surface for process machinery for extremely low coefficient friction. The woven glass backing incorporates PTFE, which is great as it resists chemicals and has a high heat resistance making it useful on hot sealing machines or pressing equipment.

The 5451 tape from 3M™ is what you need for high strength applications requiring durability. Offers a durable solution to help reduce the build-up on packaging lines. A wide temperature range from -73°C to 260°C makes it suitable for high-temperature applications.

• Premium glass cloth reinforced backing provides greater tensile strength and resistance to tears and punctures than typical PTFE film backed tapes
• Silicone adhesive offers high-temperature performance and long ageing
• Provides a non-stick, low friction surface on heat sealing and packaging equipment
• Performs under a wide range of temperatures, including up to 500°F/260°C
• Very low moisture absorption allows the tape to perform in many humid environments
• Excellent chemical resistance enables the tape to withstand challenging applications
• Meet several aerospace specifications

Cloth-backed tape, often referred to as duct tape or gaffa tape, is highly versatile, with uses in sealing walls in the construction industry, for basic rigging tasks, or for bookbinding and sewing. This type of tape is also sometimes used as masking tapes, and is common around the home, workshop, construction sites or in the garden.

It’s primarily used in the aerospace, automotive, military, roofing, speciality vehicle and shipbuilding industries for fabric splicing, seaming and sealing panels, heavy duty masking, bundling, holding and harness wrapping.

These tapes generally have a shelf life of 24 months if stored correctly from the manufacturer's dispatch date.

The very common and versatile duct tape and gaffa tapes are both types of cloth-backed tape, though they are different in their adhesive and type of backing. Gaffer tape, for example, is a fabric material that is heat resistant and non-reflective with an adhesive that does not leave marks when removed from the surface, and so is suited to temporary applications. As such, it is ideal for theatre and studio applications where subtly, versatility and reliability are needed. Duct tape is a broad term that includes many different steps of material and adhesive, but are typically characterized by a polyethylene film and a rubber-based adhesive. It's strength, cohesion and ability to tear easily means it is suitable for a number of applications where permanence is required.

There are many backing materials available on cloth tapes:

• Fabric/cloth such as cotton is used to improve the tensile strength, heat resistance and electrical resistance. Woven fibres are stronger than non-woven.
• Glass/Fiberglass are reinforced with glass or fibreglass particles. This enhances the heat resistance.
• Plastic/Polymer is protected by a liner in the form of a tape, film or laminate.
• PET/Polyester have a high resistance to solvents and age well.

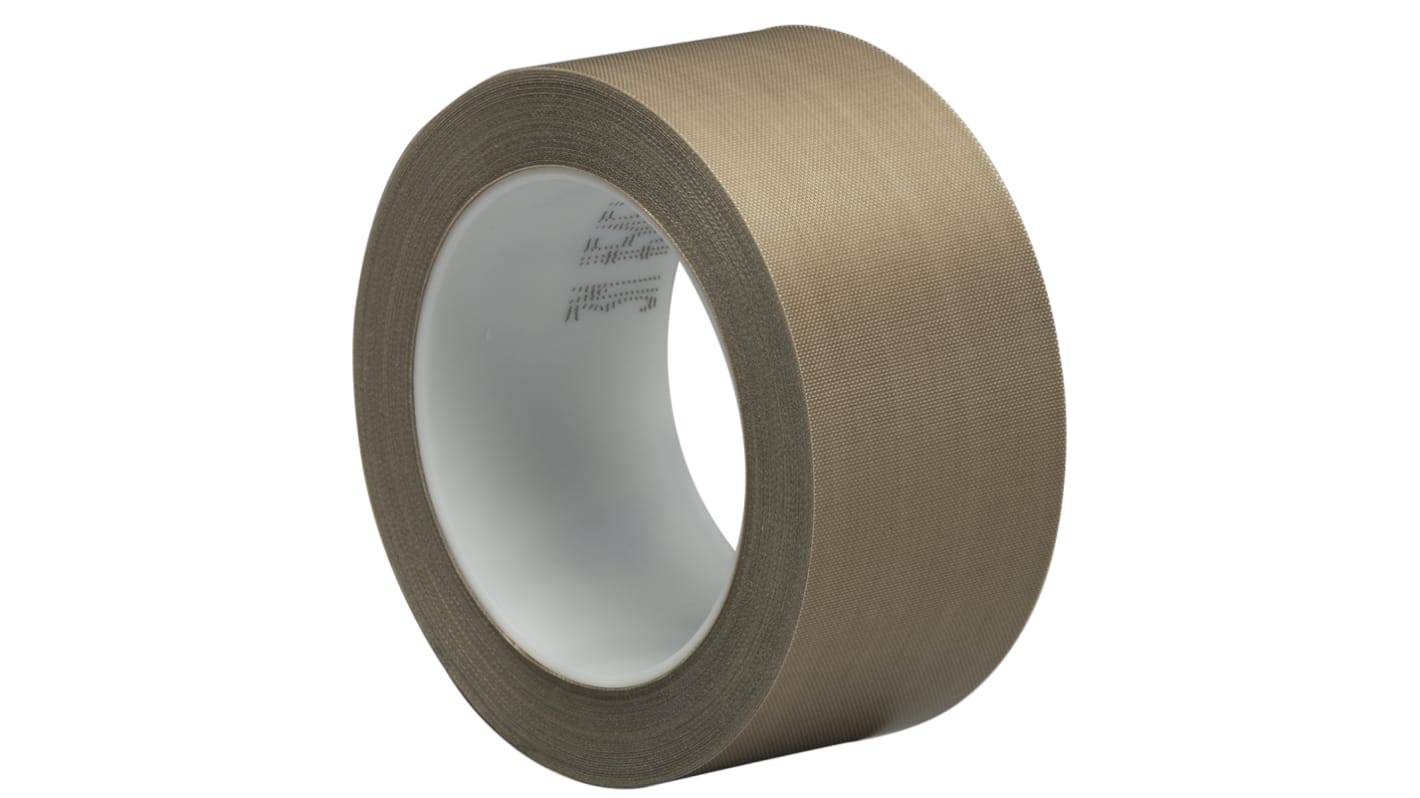

This high-strength and heat-resistant cloth tape from 3M is designed with a silicone adhesive for protection and insulation. With a backing material of glass cloth impregnated with PTFE, this brown tape offers durability and versatility for various industrial applications.

• Adhesion strength of 3.1 N/cm ensures a reliable hold
• Elongation at break of 5% for added flexibility
• Tensile strength of 176 N/cm for robust performance
• Moisture absorption close to zero for use in humid conditions
• Woven glass cloth base adds tensile strength and resistance to tear and puncture

• Easy-release surface on packaging and heat sealing machines
• Suitable for lining conveying chutes, troughs, and ducts
• Ideal for covering rollers, drums, turnbars, and formers on machinery

This cloth tape has a maximum operating temperature of +260 °C and a minimum operating temperature of -73 °C, making it suitable for various temperature conditions.

With a tensile strength of 176 N/cm, this cloth tape ensures a robust performance in industrial applications.

Yes, the moisture absorption close to zero allows this cloth tape to perform effectively in humid conditions.

Yes, this cloth tape serves as an easy-release surface on packaging and heat sealing machines, providing convenience and efficiency.

It is advised to store this cloth tape under normal conditions of 60° to 80°F (16° to 27°C) and 40 to 60% R.H. to maintain its quality.

3M are a trusted name in tapes and adhesives. Whether for industrial or even domestic applications, 3M has a tape to suit your needs. From automotive masking to office supplies, 3M tapes are relied on by millions to get the job done. RS supplies a wide range of quality 3M tapes to suit the needs of the most discerning customer.
