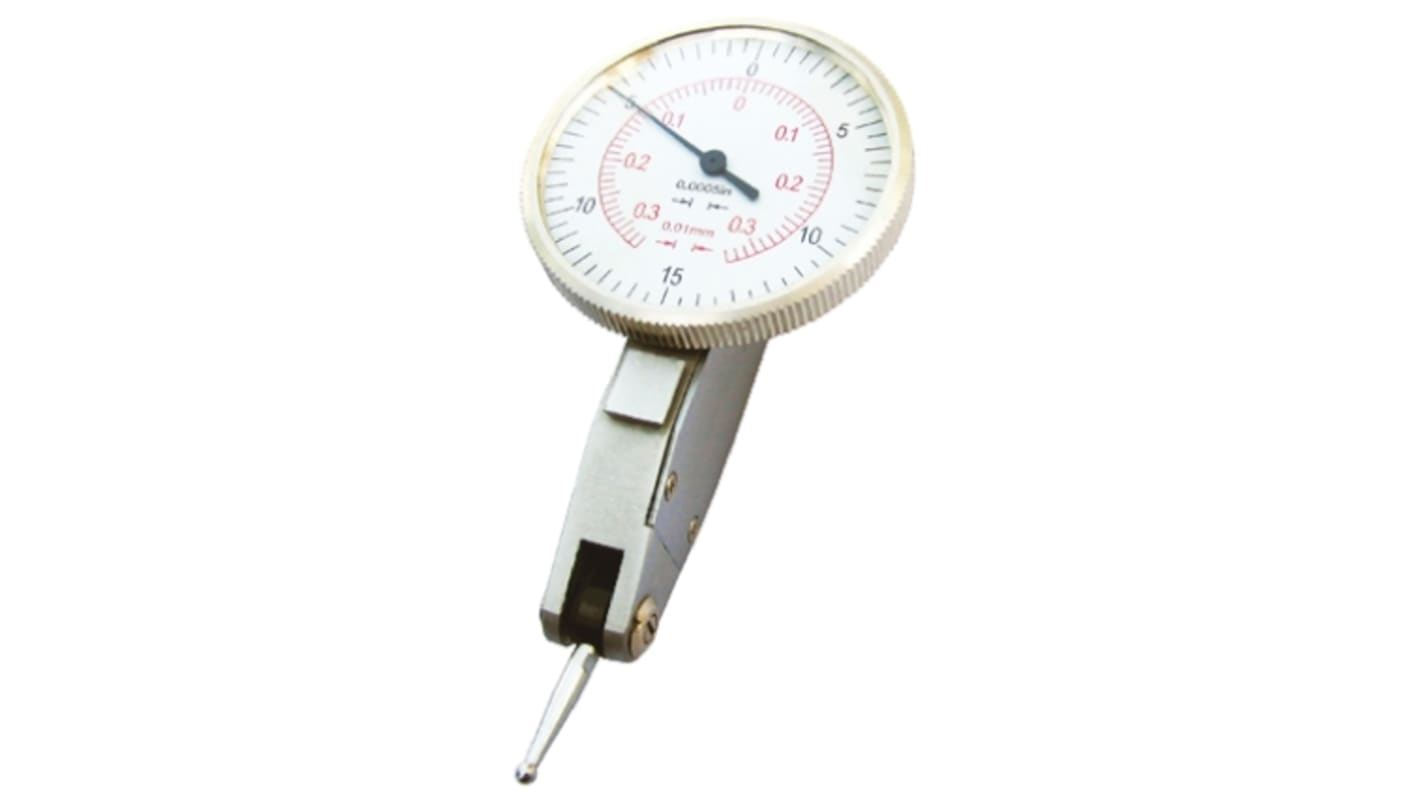

This lever dial indicator is used to measure surface variations of a component or for comparison of multiple components.

With dial graduations of 0.01 mm and an accuracy level of ±0.008 mm, the satin-chrome indicator offers a high level of precision in its readings. A rotating bezel makes it easier to zero the dial on the master component. The jewelled bearings in the indicator provide high sensitivity, accuracy and a reversible measuring direction. For versatility, it comes with 6 mm and 8 mm spigots to increase the range of frame to which it can be attached.

The 2 mm ball anvil can be replaced if damaged or worn, increasing the working life of the indicator. This level dial indicator – which has been thoroughly tested as part of the RS PRO range – is suitable for use in workshops or inspection applications.

• Lever dial indicator
• Satin chrome body
• Dial diameter of 40 mm
• Maximum measurement of 0.8 mm
• Resolution of 0.01 mm
• Accuracy of ±0.008 mm
• Dial displays both metric and imperial scale
