Interroll M12, M8 Roller Drive, 50mm x 449mm

View all Drive Rollers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Interroll M12, M8 Conveyor Roller, 50mm x 450mm
RS Stock No.
740-5017

Each

£289.01

(exc. VAT)

£346.81

(inc. VAT)

RS Stock No.:
408-467
Mfr. Part No.:
82HVJAE6FT+89Q1
Brand:
Interroll
Find similar products by selecting one or more attributes.
Select all

Brand

Interroll

Roller Diameter

50mm

Roller Length

449mm

Component Type

Roller Drive

Load Capacity

140kg

Inside Frame Width

460mm

Ratio

48:1

Nominal Torque

2.3Nm

Peak Torque

5.4Nm

Spindle Thread Size

M12, M8

Maximum Conveying Speed

0.25m/s

Maximim Motor Voltage

28V dc

Minimum Motor Voltage

18V dc

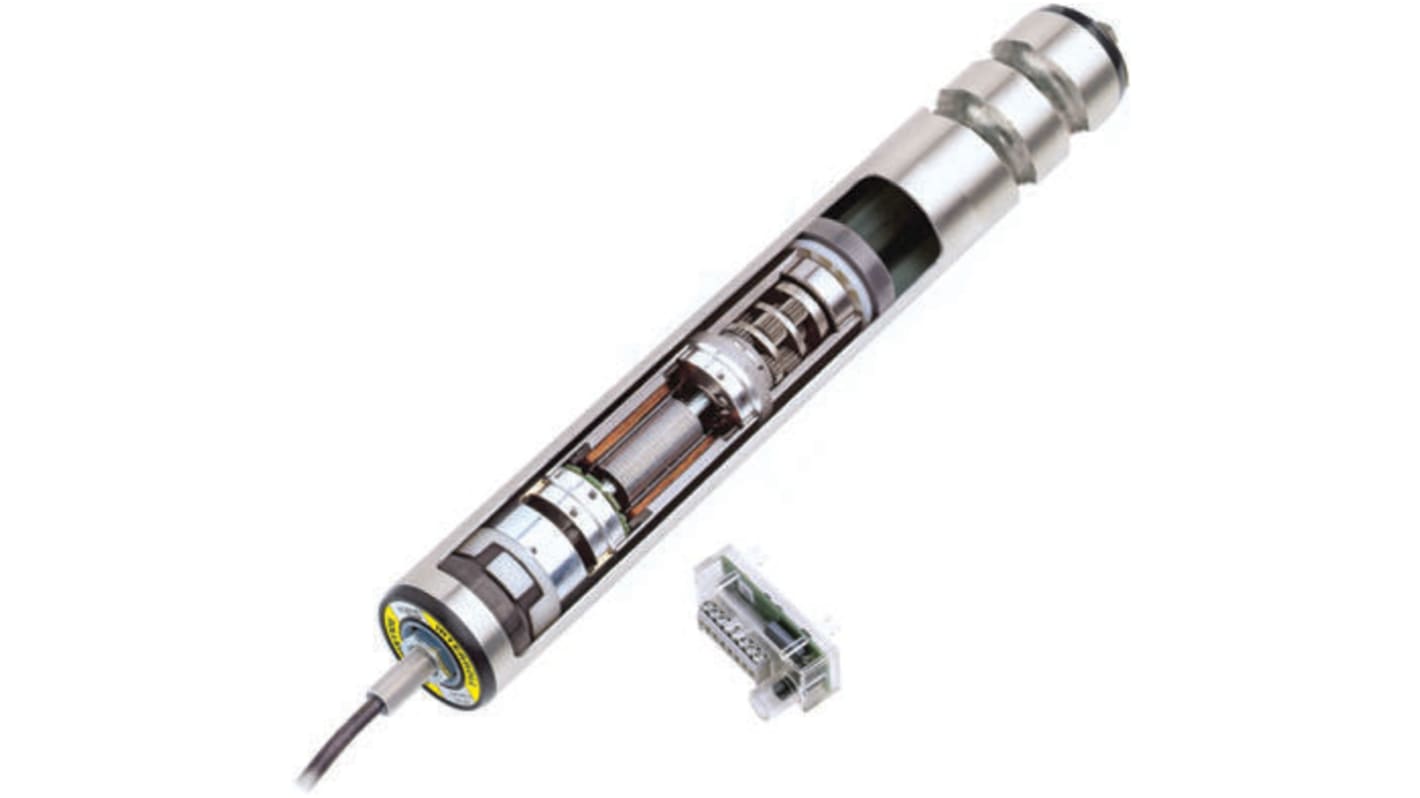

Motorised Drive Roller, Series EC200


Brushless motor with integrated electronics
4 quadrant motor control giving constant speed / torque
Styled double groove to be used with slave rollers and bands
Suitable for applications with high outputs and conveyor weights
Service life of at least 15,000 hours
Up to 30 stop / starts per minute, dependant on application
Wide speed range with high torque
Built in safety features; sensing stalled or blocked conditions and slow running condition
Temperature monitoring
Supplied with EC200/300 control card 89QU

EC200/300 control card 89QU


Universal interface to control the EC200 roller drive
Control speed through rotary switch or PLC
Set run commands
Change direction through switch
Easy mounting to conveyor frame
Fixcon socket to easily accept plug from drive roller
Easy connection to supply or PLC through screw terminals
