Southco Steel Compression Latch, 47.5 x 29 x 64mm

Bulk discount available

Subtotal (1 unit)*

£21.58

(exc. VAT)

£25.90

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 97 unit(s) ready to ship
  • Plus 17 unit(s) ready to ship from another location
  • Plus 60 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£21.58
5 - 9£20.48
10 - 29£19.45
30 +£18.12

*price indicative

RS Stock No.:
340-2213
Distrelec Article No.:
304-09-154
Mfr. Part No.:
E3-16-25
Brand:
Southco
Find similar products by selecting one or more attributes.
Select all

Brand

Southco

Material

Steel

Latch Type

Compression Latch

Dimensions

47.5 x 29 x 64mm

Length

47.5mm

Width

29.0mm

RoHS Status: Exempt

COO (Country of Origin):
PL

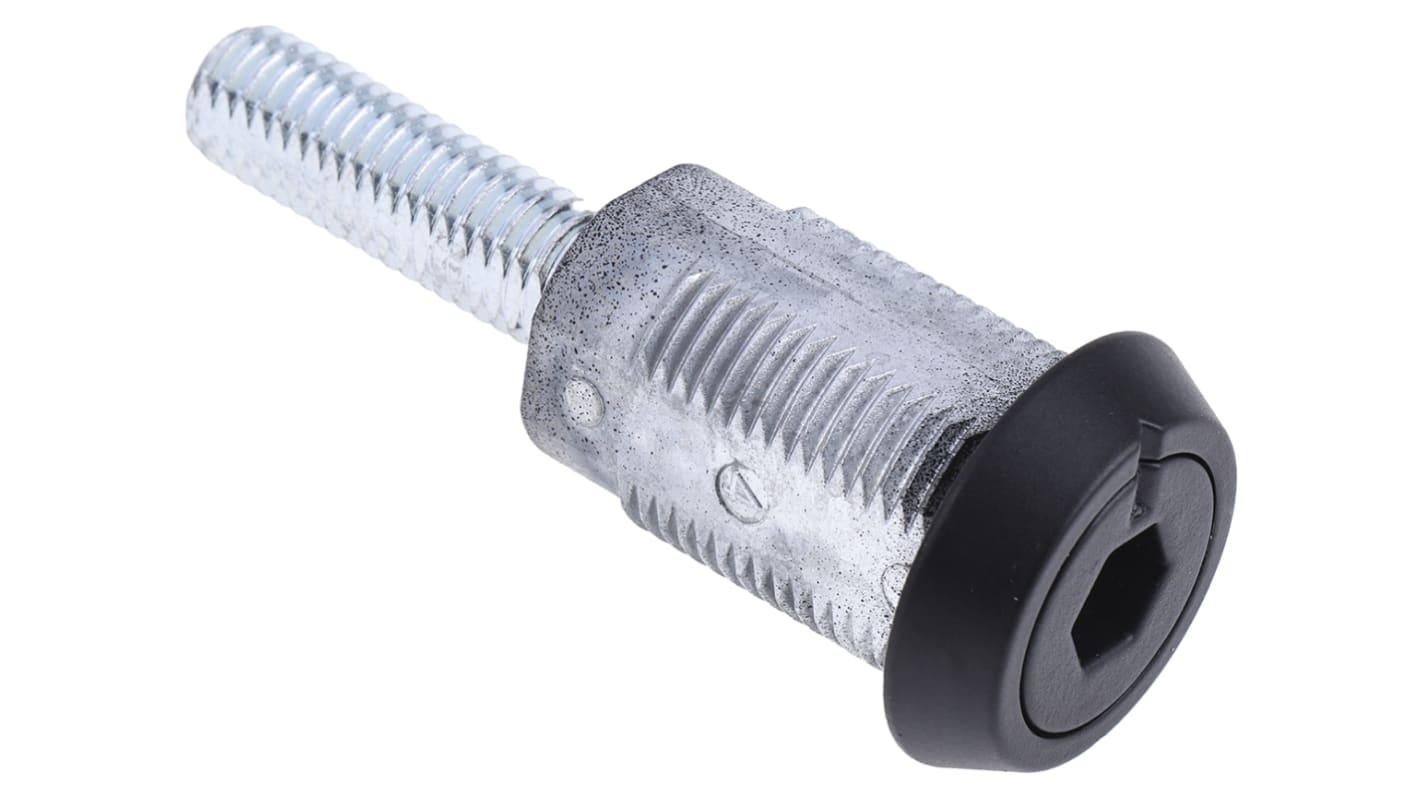

Southco Hexagon Recess Head Compression Latch


The Southco Vice action series hexagon recess head compression latch is cylindrical in shape. The latch has a raised trigger and a push to close mechanism. It applies consistent pressure to gasketing with one-half turn is all that is required to latch the door and pull it uptight. It has a height of 47.5mm, a width of 29mm and depth of 64mm body.

Features and Benefits


Head style is 8 (.32) Hex recess
Grip range is 25.4mm to 14.1mm deep offset cam, forward and 52.6mm to 68.3mm deep offset cam, forward
450N static load capacity
Consistent pre-set compression
Easy grip adjustment
Tool operated for security
Housing material is steel with black powder coated

Certifications


ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP65 rating
NEMA 4
