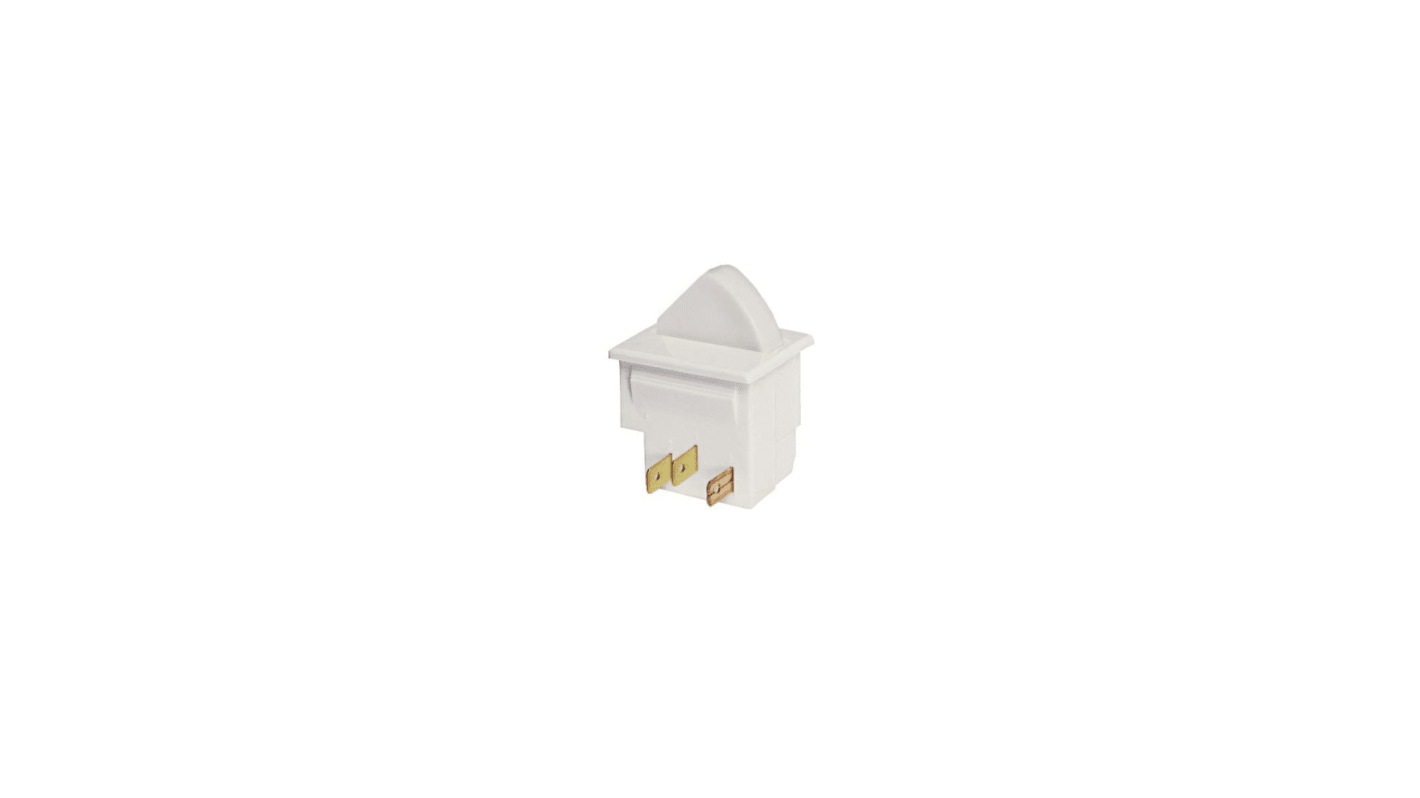

Bulgin Door Micro Switch Lever, SPDT 5 A IP44, 125 °C
- RS Stock No.:
- 204-8159
- Mfr. Part No.:
- E3111AAAAB
- Brand:
- Bulgin
Subtotal (1 box of 500 units)*
£2,803.50
(exc. VAT)
£3,364.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 500 + | £5.607 | £2,803.50 |
*price indicative
- RS Stock No.:
- 204-8159
- Mfr. Part No.:
- E3111AAAAB
- Brand:
- Bulgin
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bulgin | |
| Product Type | Door Micro Switch | |
| Actuator Type | Lever | |
| Contact Configuration | SPDT | |
| Contact Current | 5A | |
| Terminal Type | Quick Connect | |
| Housing Material | Polyamide | |
| IP Rating | IP44 | |
| Mechanical Life | 50000Cycles | |
| Contact AC Voltage | 250V ac | |
| Depth | 22.73mm | |
| Series | 3100 | |
| Standards/Approvals | UL, cRL, RoHS, ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 | |
| Length | 27.56mm | |
| Maximum Operating Temperature | 125°C | |
| Select all | ||
|---|---|---|
Brand Bulgin | ||
Product Type Door Micro Switch | ||
Actuator Type Lever | ||
Contact Configuration SPDT | ||
Contact Current 5A | ||
Terminal Type Quick Connect | ||
Housing Material Polyamide | ||
IP Rating IP44 | ||
Mechanical Life 50000Cycles | ||
Contact AC Voltage 250V ac | ||
Depth 22.73mm | ||
Series 3100 | ||
Standards/Approvals UL, cRL, RoHS, ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007 | ||
Length 27.56mm | ||
Maximum Operating Temperature 125°C | ||
- COO (Country of Origin):
- TN
The Bulgin 3100 series refrigerator door switch is not only ideal for traditional refrigerator and freezer applications but can and have been used in a variety of door applications as well. It uses terminal 1,2,3.
Splash resistant
Choice of actuators
