nVent ERIFLEX Splitter, 4 Way, 690 V, 160A, Blue
- RS Stock No.:
- 277-6146
- Mfr. Part No.:
- 563200
- Brand:
- nVent ERIFLEX
Subtotal (1 unit)*
£85.59
(exc. VAT)
£102.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.59 |
*price indicative
- RS Stock No.:
- 277-6146
- Mfr. Part No.:
- 563200
- Brand:
- nVent ERIFLEX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | nVent ERIFLEX | |
| Product Type | Splitter | |
| Number of Ways | 4 | |
| Current | 160A | |
| Housing Material | Thermoplastic | |
| Voltage | 690 V | |
| Termination Type - Line Side | Screw | |
| Connections Per Pole - Line Side | 1 | |
| Connections Per Pole - Load Side | 11 | |
| Minimum Operating Temperature | 30°C | |
| Wire Size - Line Side | 8/1 AWG | |
| Colour | Blue | |
| Standards/Approvals | IEC 60947-7-1 | |
| Maximum Operating Temperature | 75°C | |
| Length | 90mm | |
| Width | 175 mm | |
| Height | 90mm | |
| Select all | ||
|---|---|---|
Brand nVent ERIFLEX | ||
Product Type Splitter | ||
Number of Ways 4 | ||
Current 160A | ||
Housing Material Thermoplastic | ||
Voltage 690 V | ||
Termination Type - Line Side Screw | ||
Connections Per Pole - Line Side 1 | ||
Connections Per Pole - Load Side 11 | ||
Minimum Operating Temperature 30°C | ||
Wire Size - Line Side 8/1 AWG | ||
Colour Blue | ||
Standards/Approvals IEC 60947-7-1 | ||
Maximum Operating Temperature 75°C | ||
Length 90mm | ||
Width 175 mm | ||
Height 90mm | ||
- COO (Country of Origin):
- CN

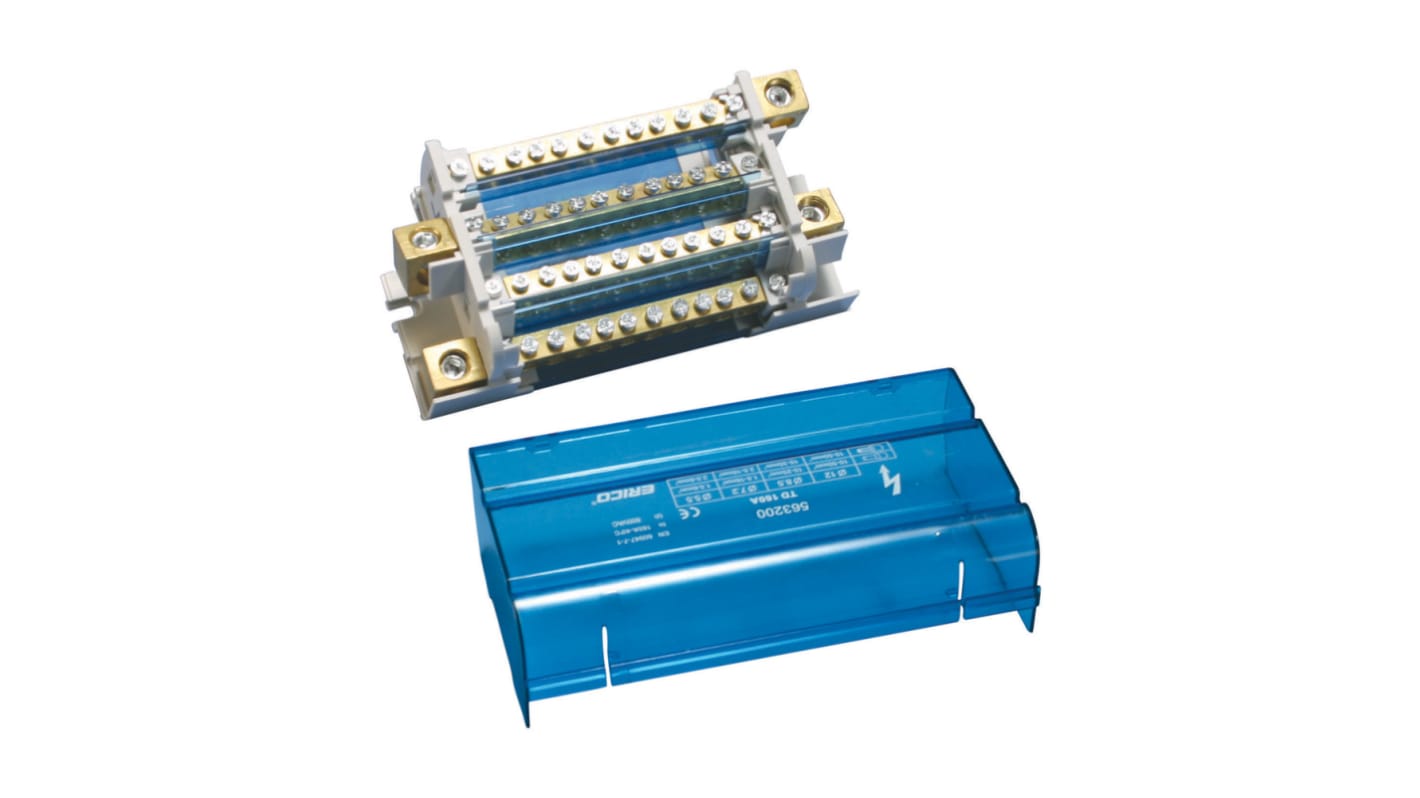

The nVent ERIFLEX Four pole Distribution Block can be easily clipped onto DIN rail or mounts to panel with screws. It has protection cover and insulating screens which are transparent. It allows easy and safe connections.
Solid bars provide reliability
Input separated from outputs
