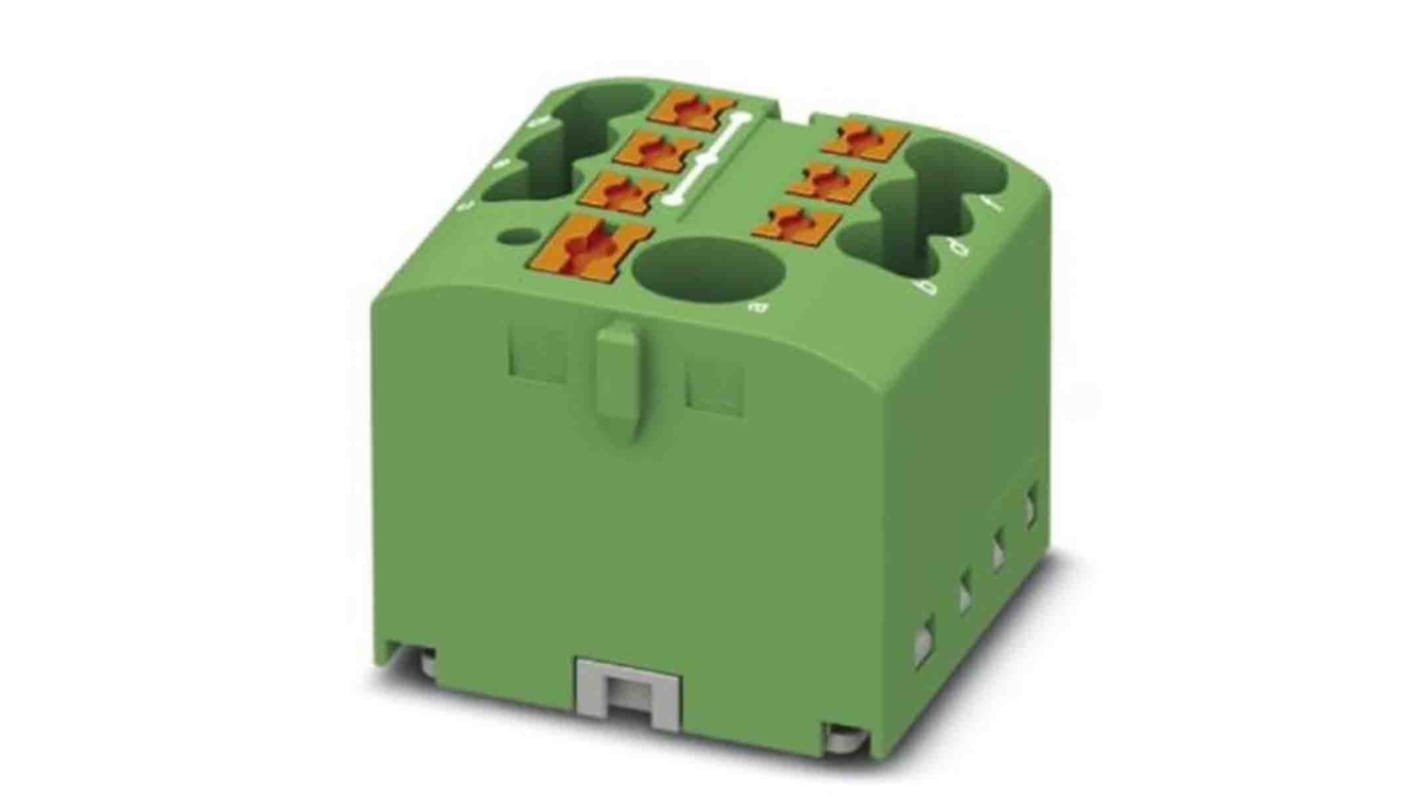

Phoenix Contact Distribution Block, 7 Way, 450 V, 24A, Green
- RS Stock No.:
- 201-6843
- Mfr. Part No.:
- 3273468
- Brand:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
£36.98
(exc. VAT)
£44.38
(inc. VAT)
Add 20 units to get free delivery
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £3.698 | £36.98 |
*price indicative
- RS Stock No.:
- 201-6843
- Mfr. Part No.:
- 3273468
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Distribution Block | |
| Number of Ways | 7 | |
| Current | 24A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 450 V | |
| Minimum Operating Temperature | -60°C | |
| Connections Per Pole - Line Side | 7 | |
| Termination Type - Load Side | Push-in | |
| Termination Type - Line Side | Push-in | |
| Connections Per Pole - Load Side | 7 | |
| Wire Size - Load Side | 26 to 12 AWG | |
| Wire Size - Line Side | 26 to 12 AWG | |
| Colour | Green | |
| Width | 28.6 mm | |
| Height | 30.9mm | |
| Series | PTFIX | |
| Standards/Approvals | No | |
| Length | 28.6mm | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Distribution Block | ||
Number of Ways 7 | ||
Current 24A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 450 V | ||
Minimum Operating Temperature -60°C | ||
Connections Per Pole - Line Side 7 | ||
Termination Type - Load Side Push-in | ||
Termination Type - Line Side Push-in | ||
Connections Per Pole - Load Side 7 | ||
Wire Size - Load Side 26 to 12 AWG | ||
Wire Size - Line Side 26 to 12 AWG | ||
Colour Green | ||
Width 28.6 mm | ||
Height 30.9mm | ||
Series PTFIX | ||
Standards/Approvals No | ||
Length 28.6mm | ||
Maximum Operating Temperature 105°C | ||
The Phoenix 450V distribution block has flexible use and clear wiring. It is basic terminal block with supply that can be bridged with one another via the conductor shaft with corresponding plug-in bridges.
Degree of pollution 3
Overvoltage category III
Time saving
Space saving
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
