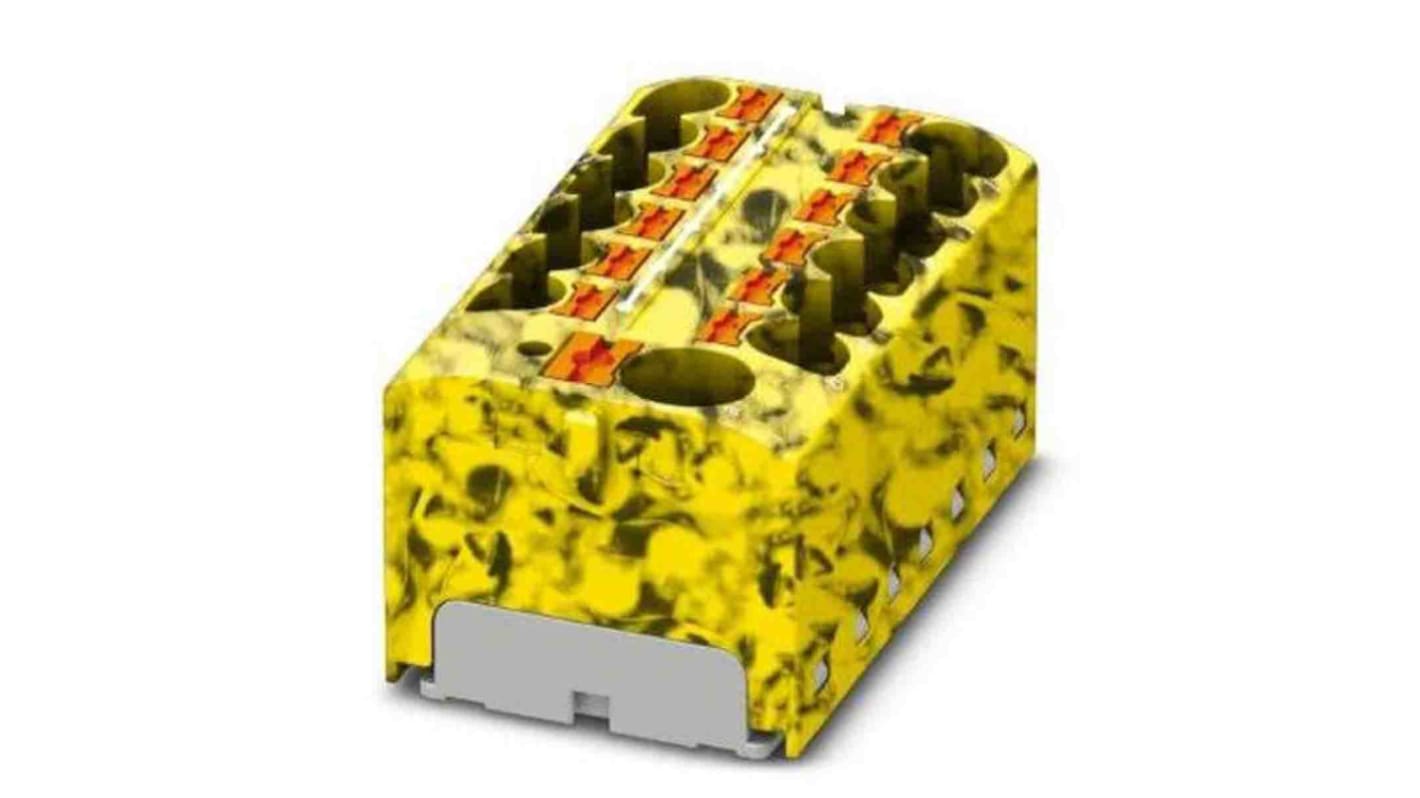

Phoenix Contact Distribution Block, 13 Way, 450 V, 32A, Black, Yellow

View all Distribution Blocks
Unavailable
RS will no longer stock this product.
RS Stock No.:
201-6735
Mfr. Part No.:
3274030
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Number of Ways

13

Product Type

Distribution Block

Current

32A

Housing Material

Polyamide

IP Rating

IP20

Voltage

450 V

Wire Size - Line Side

10 AWG

Connections Per Pole - Load Side

13

Termination Type - Load Side

Push-in

Minimum Operating Temperature

-60°C

Termination Type - Line Side

Push-in

Connections Per Pole - Line Side

13

Wire Size - Load Side

10 AWG

Colour

Black, Yellow

Series

PTFIX

Standards/Approvals

No

Length

28.6mm

Height

30.9mm

Width

28.6 mm

Maximum Operating Temperature

105°C

The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used adhesive mounting type. It can be used straight away and expanded as needed. It has 13 way of connection and its width is 46.3 mm. It can be bridged internally and its colour is black/yellow.

Ambient temperature is -35 °C to 85 °C

Number of level is 1

Rated surge voltage is 6kV

This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
