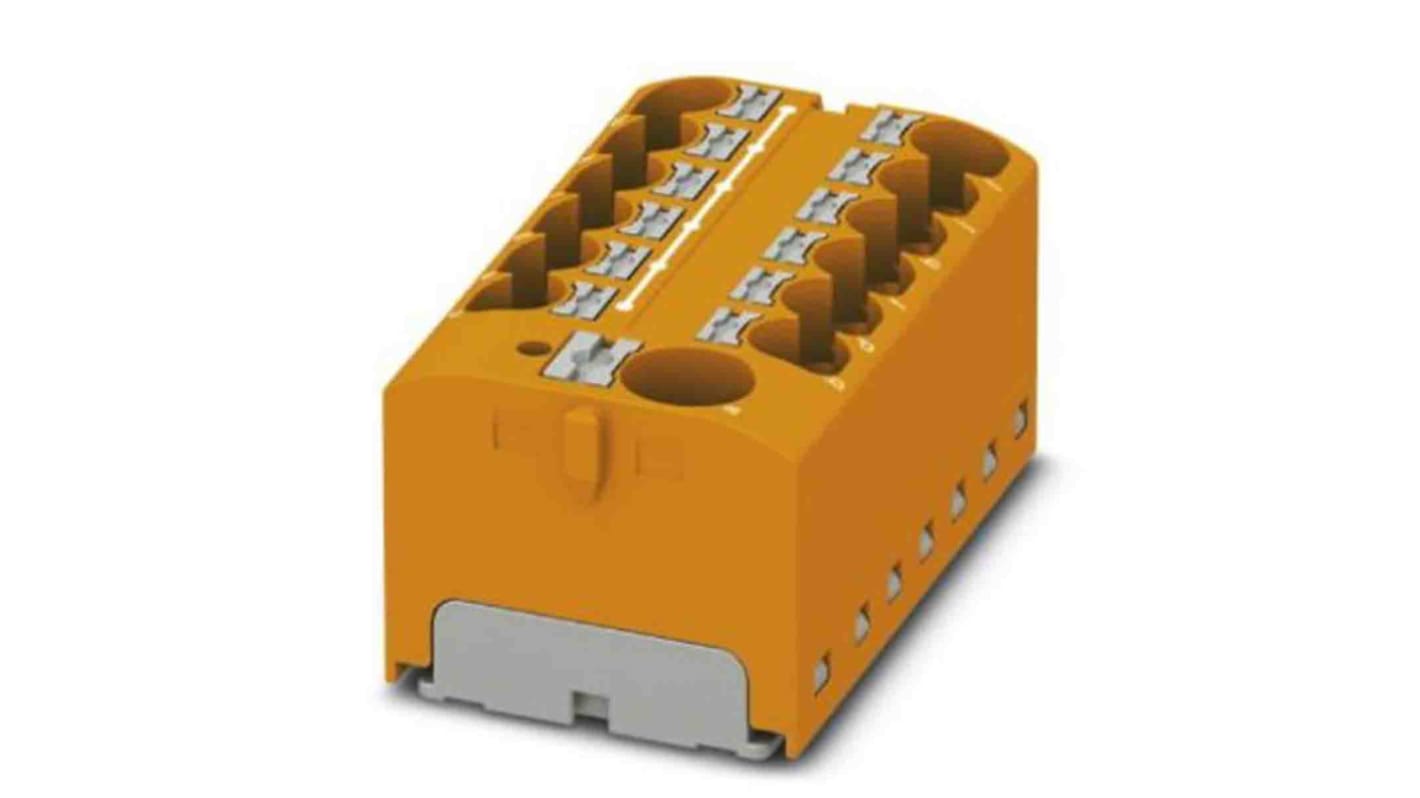

Phoenix Contact Distribution Block, 13 Way, 6mm², 32A, 450 V, Orange

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used DIN rail adapter mounting type. It can be used straight away and expanded as needed. It has 4 way of connection and its width is 8.3mm. The block can be bridged with one another via the conductor shaft and aligned with standard plug-in bridge.

Ambient temperature is -60°C to 85 °C
Number of level is 1
Rated surge voltage is 6kV

Specifications
Attribute Value
Number of Ways 13
Termination Method Push In
Wire Size 10 AWG
Housing Material Polyamide
IP Rating IP20
Current Rating 32A
Voltage Rating 450 V
Cable CSA 6mm²
Colour Orange
