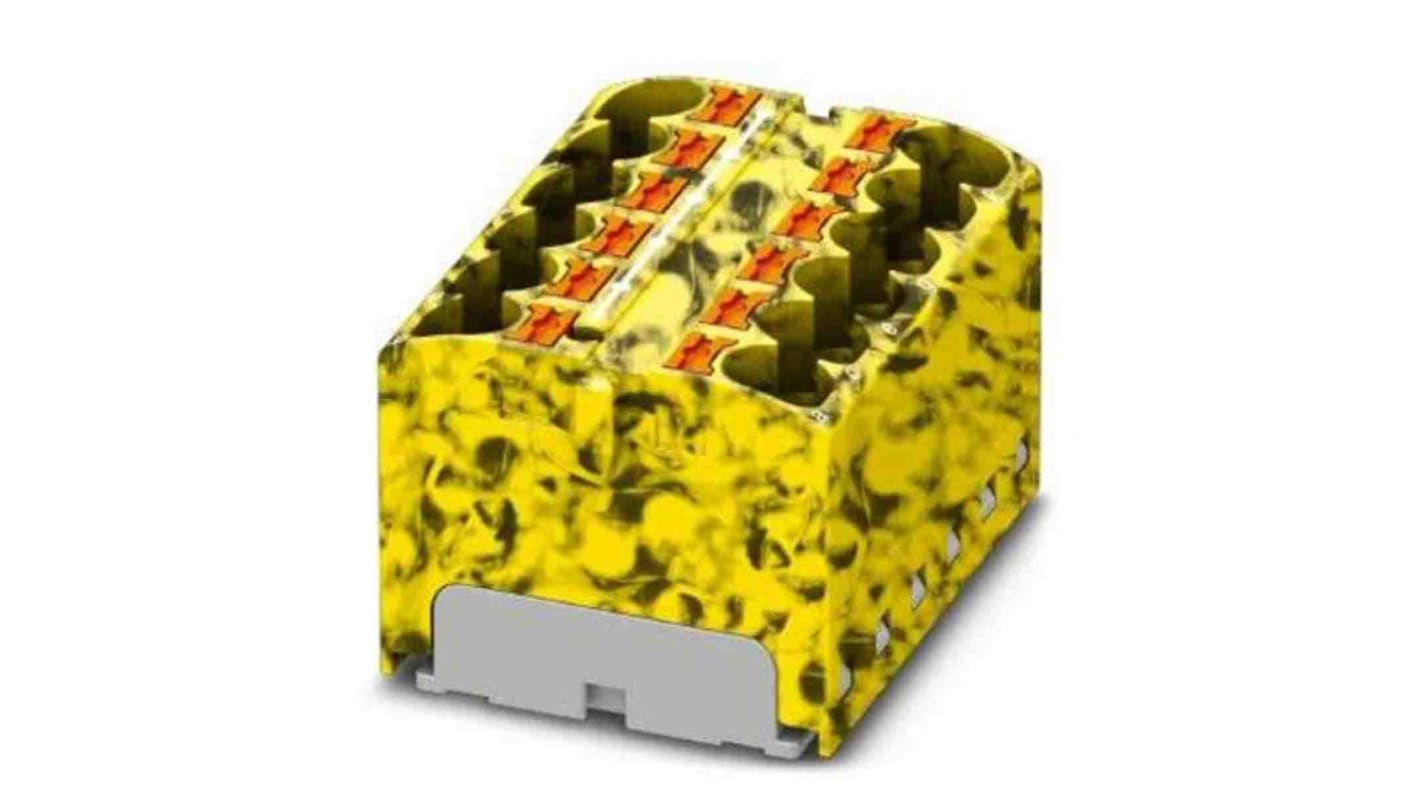

Phoenix Contact Distribution Block, 12 Way, 450 V, 32A, Yellow, Black

View all Distribution Blocks
Unavailable
RS will no longer stock this product.
RS Stock No.:
201-6157
Mfr. Part No.:
3273964
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Distribution Block

Number of Ways

12

Current

32A

Housing Material

Polyamide

IP Rating

IP20

Voltage

450 V

Termination Type - Line Side

Push-in

Wire Size - Line Side

10 AWG

Wire Size - Load Side

10 AWG

Termination Type - Load Side

Push-in

Minimum Operating Temperature

-60°C

Colour

Yellow, Black

Standards/Approvals

No

Length

28.6mm

Series

PTFIX

Height

30.9mm

Maximum Operating Temperature

105°C

Width

28.6 mm

The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used adhesive mounting type. It can be used straight away and expanded as needed. It has 12 way of connection and its width is 36.9mm. The block can be bridged with one another via the conductor shaft and aligned with standard plug-in bridge.

Number of level is 1

Rated surge voltage is 6kV

This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
