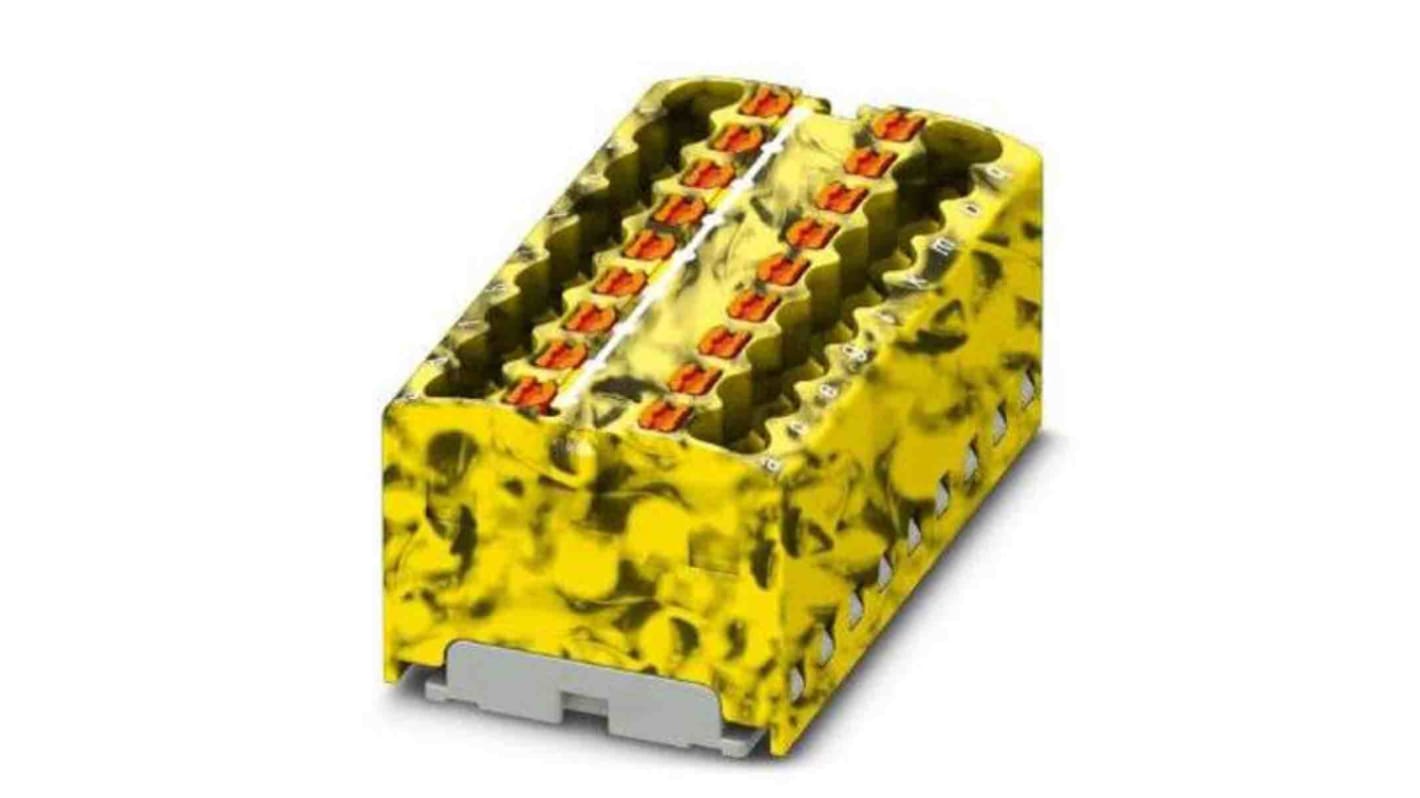

Phoenix Contact Distribution Block, 18 Way, 450 V, 17.5A, Black, Yellow

View all Distribution Blocks
Unavailable
RS will no longer stock this product.
RS Stock No.:
201-4895
Mfr. Part No.:
3002909
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Product Type

Distribution Block

Number of Ways

18

Current

17.5A

Housing Material

Polyamide

IP Rating

IP20

Voltage

450 V

Wire Size - Load Side

14 AWG

Connections Per Pole - Load Side

18

Termination Type - Load Side

Push-in

Minimum Operating Temperature

-60°C

Connections Per Pole - Line Side

18

Termination Type - Line Side

Push-in

Wire Size - Line Side

14 AWG

Colour

Black, Yellow

Series

PTFIX

Standards/Approvals

No

Height

18.7mm

Length

21.6mm

Width

24.9 mm

Maximum Operating Temperature

105°C

The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used adhesive mounting type. It can be used straight away and expanded as needed. It has 18 way of connection and its width is 37.4mm. The block can be bridged with one another via the conductor shaft and aligned with standard plug-in bridge.

Ambient temperature is -60 °C to 85 °C

Number of level is 1

Rated surge voltage is 6kV

This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
