Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Maxim Integrated
	Package Type	PDIP
	Maximum Clock Frequency	500KHz
	Number of Pins	8
	Supply Voltage	(Maximum) 5.5 V
	Maximum Supply Current	60µA
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+70°C
	Mounting Type	Through Hole
	Width	7.87mm
	Height	4.45mm
	Length	9.91mm

	Select all
	Brand Maxim Integrated
	Package Type PDIP
	Maximum Clock Frequency 500KHz
	Number of Pins 8
	Supply Voltage (Maximum) 5.5 V
	Maximum Supply Current 60µA
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +70°C
	Mounting Type Through Hole
	Width 7.87mm
	Height 4.45mm
	Length 9.91mm

+2.0V to +6.0V Input Voltage Range

Flexible Control of Output Voltage:

Digital Control

Potentiometer Adjustment

PWM Control

Output Voltage Range Set by One Resistor

Low, 60μA Max Quiescent Current

15μA Max Shutdown Mode

Small Size - 8-Pin SO and Plastic DIP Packages

Applications

Communication Systems

Laptop Computers

Notebook Computers

Palmtop Computers

PDAs and Other Handheld Devices

Portable Data-Collection Terminals

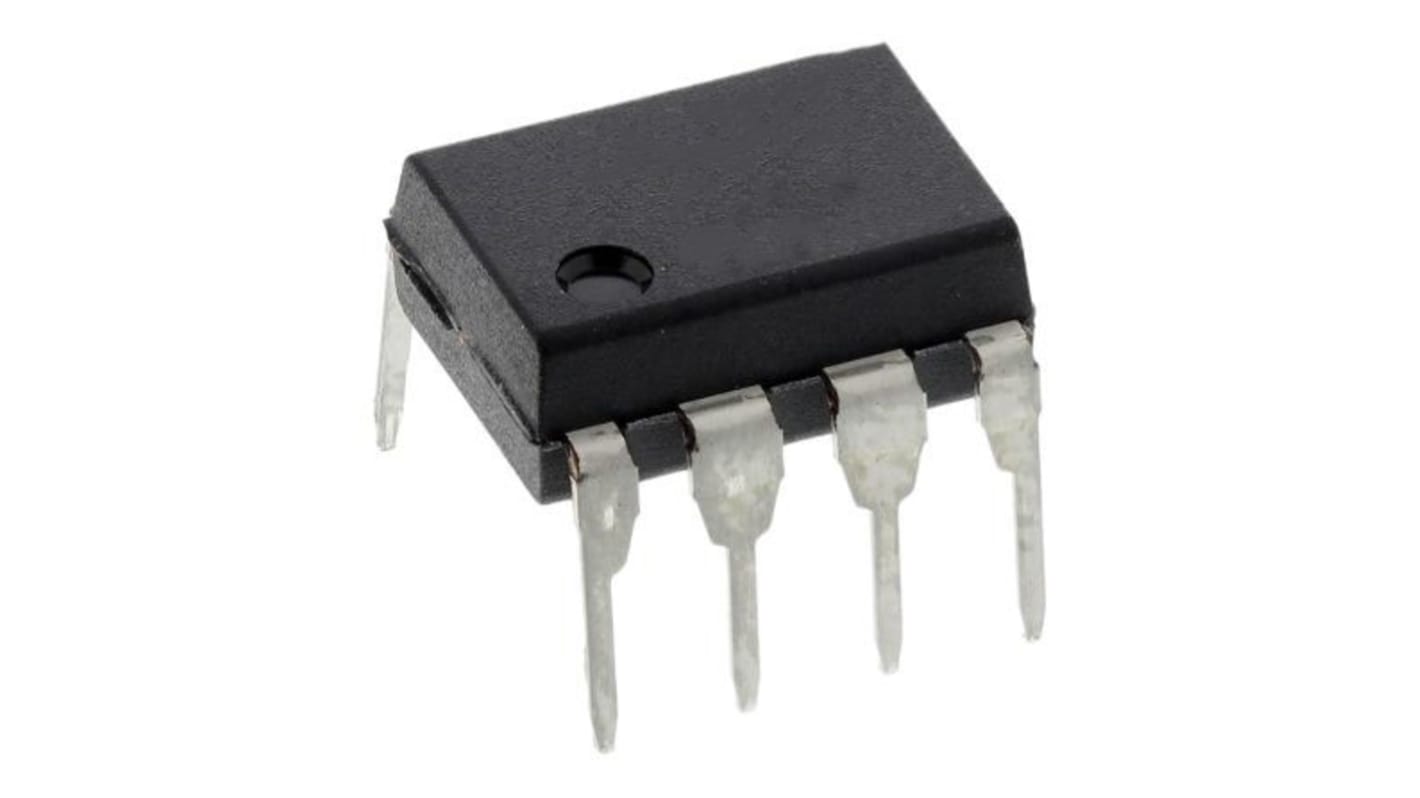

Maxim Integrated MAX749CPA+ PDIP Display Driver, 8 Pin, (Maximum) 5.5 V
