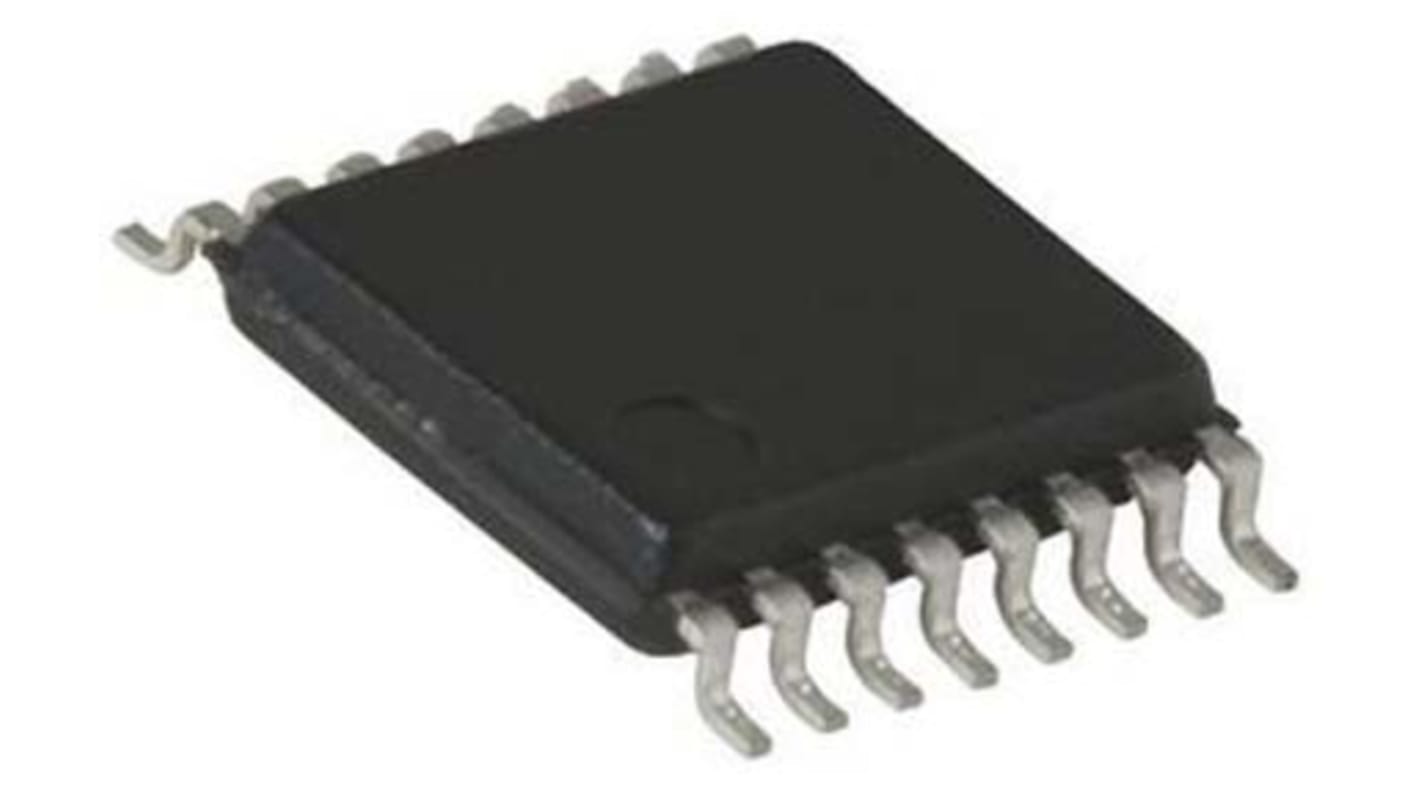

Analog Devices LT3761IMSE#PBF MSOP Display Driver, 16 Pin, 4.1 V

View all Display Drivers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Packaging Options:
RS Stock No.:
151-3307
Mfr. Part No.:
LT3761IMSE#PBF
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Package Type

MSOP

Display Type

LED

Number of Pins

16

Supply Voltage

4.1 V

Maximum Supply Current

42mA

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

+125°C

Mounting Type

Surface Mount

Width

3mm

Height

0.86mm

Length

4.039mm

The LT3761/LT3761-1 is a DC/DC controller designed to operate as a constant-current source and constant-voltage regulator. It features a programmable internal PWM dimming signal. The LT3761/LT3761-1 is ideally suited for driving high current LEDs, but also has features to make it suitable for charging batteries and super capacitors. The fixed frequency, current mode architecture results in stable operation over a wide range of supply and output voltages. A voltage feedback pin serves as the input for several LED protection features, and also makes it possible for the converter to operate as a constant-voltage source.

3000:1 True Color PWM Dimming for LEDs
Rail-to-Rail Current Sense Range: 0V to 80V
Programmable PWM Dimming Signal Generator
Constant Current (±3%) and Constant-Voltage (±2%) Regulation
Analog Dimming
