Development Kit BarGraph 2 Click for use with Building Vu-Meters, Gauges and Signal Indicators
- RS Stock No.:
- 184-0894
- Mfr. Part No.:
- MIKROE-3021
- Brand:
- MikroElektronika
Stock information currently inaccessible
- RS Stock No.:
- 184-0894
- Mfr. Part No.:
- MIKROE-3021
- Brand:
- MikroElektronika
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MikroElektronika | |
| Display Technology | 10 Segment Display | |
| Kit Classification | Add On Board | |
| Featured Device | 74HC595 | |
| Kit Name | BarGraph 2 Click | |
| Select all | ||
|---|---|---|
Brand MikroElektronika | ||
Display Technology 10 Segment Display | ||
Kit Classification Add On Board | ||
Featured Device 74HC595 | ||
Kit Name BarGraph 2 Click | ||

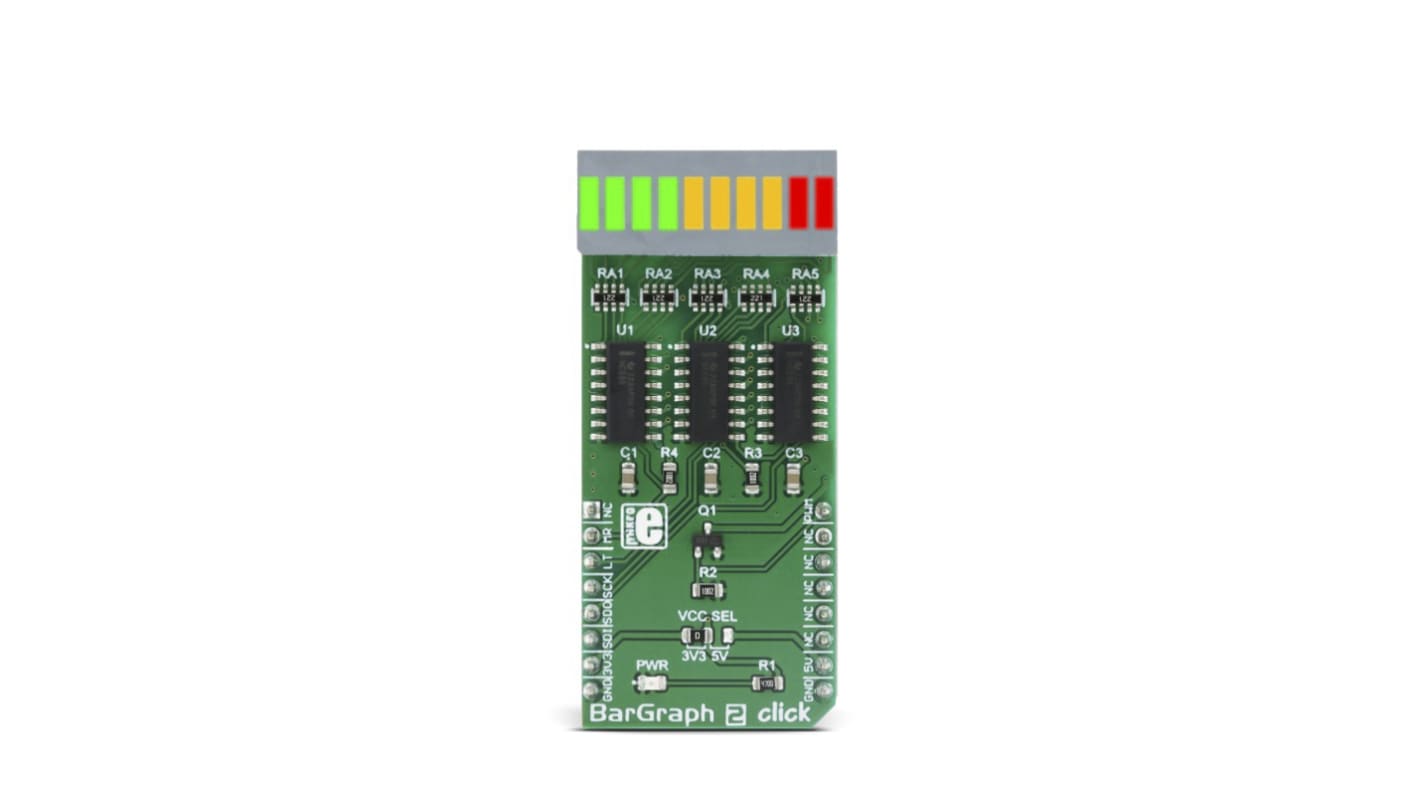

BarGraph 2 click is a 10-segment bar graph display click, which uses a high-quality, multiColour bar graph LED display. The bar graph display is a very popular device for displaying various properties, whether it be an audio level, current/voltage level, position of the encoder, and generally any property that can be displayed in a form of a bar graph. The segments of the onboard bar graph LED display are bright and uniformly Coloured, providing a nice and clean visual feedback.
8-Bit Serial-In, Parallel-Out Shift
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads
Low Power Consumption: 80-μA (Maximum) ICC
tpd = 13 ns (Typical)
±6-mA Output Drive at 5 V
Low Input Current: 1 μA (Maximum)
Shift Register Has Direct Clear
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads
Low Power Consumption: 80-μA (Maximum) ICC
tpd = 13 ns (Typical)
±6-mA Output Drive at 5 V
Low Input Current: 1 μA (Maximum)
Shift Register Has Direct Clear
