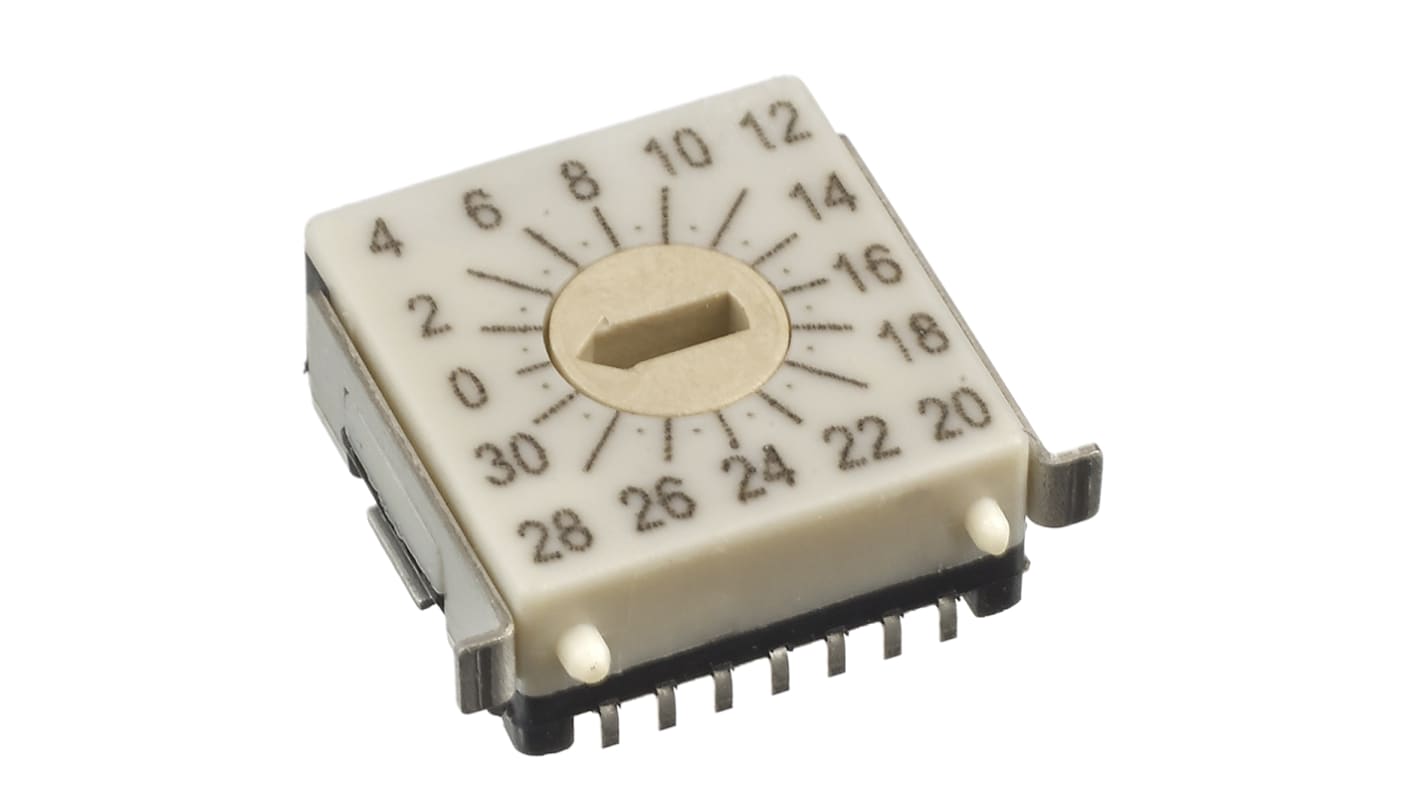

Hartmann 32 Way Surface Mount DIP Switch, Slot Actuator
- RS Stock No.:
- 910-8169
- Mfr. Part No.:
- P56SMT163LTR
- Brand:
- Hartmann
Subtotal (1 unit)*
£9.76
(exc. VAT)
£11.71
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 222 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.76 |
*price indicative
- RS Stock No.:
- 910-8169
- Mfr. Part No.:
- P56SMT163LTR
- Brand:
- Hartmann
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hartmann | |
| Number of Positions | 32 | |
| Mounting Type | Surface Mount | |
| Contact Material | Gold over Nickel Plated Copper Alloy | |
| Package Style | DIP | |
| Actuator Type | Slot | |
| Contact Current Rating | 100 mA | |
| Mechanical Life | 50000Operations | |
| Maximum Operating Temperature | +95°C | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +95°C | |
| Voltage Rating | 24V dc | |
Select all | ||
|---|---|---|
Brand Hartmann | ||
Number of Positions 32 | ||
Mounting Type Surface Mount | ||
Contact Material Gold over Nickel Plated Copper Alloy | ||
Package Style DIP | ||
Actuator Type Slot | ||
Contact Current Rating 100 mA | ||
Mechanical Life 50000Operations | ||
Maximum Operating Temperature +95°C | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +95°C | ||
Voltage Rating 24V dc | ||
- COO (Country of Origin):
- DE
Rotary Code Switches, P56SMT..63 Series
The P56SMT rotary code switches have clearly visible figures and an audible detent for fast precise and easy operation. Two versions are available, horizontal with 5.6mm height and vertical with 6.6mm depth. Both versions have an arrow shaper slotted actuator giving precise and visible control over the 32 selectable positions.
Features
Body size 12mm x 12mm
Contactors with hard gold plating
Operating temperature range -25°C to +95°C
Voltage rating: up to 24 V
PCB mounting
Footprint/Pin spacing: 1.27mm between pins
Contactors with hard gold plating
Operating temperature range -25°C to +95°C
Voltage rating: up to 24 V
PCB mounting
Footprint/Pin spacing: 1.27mm between pins
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
