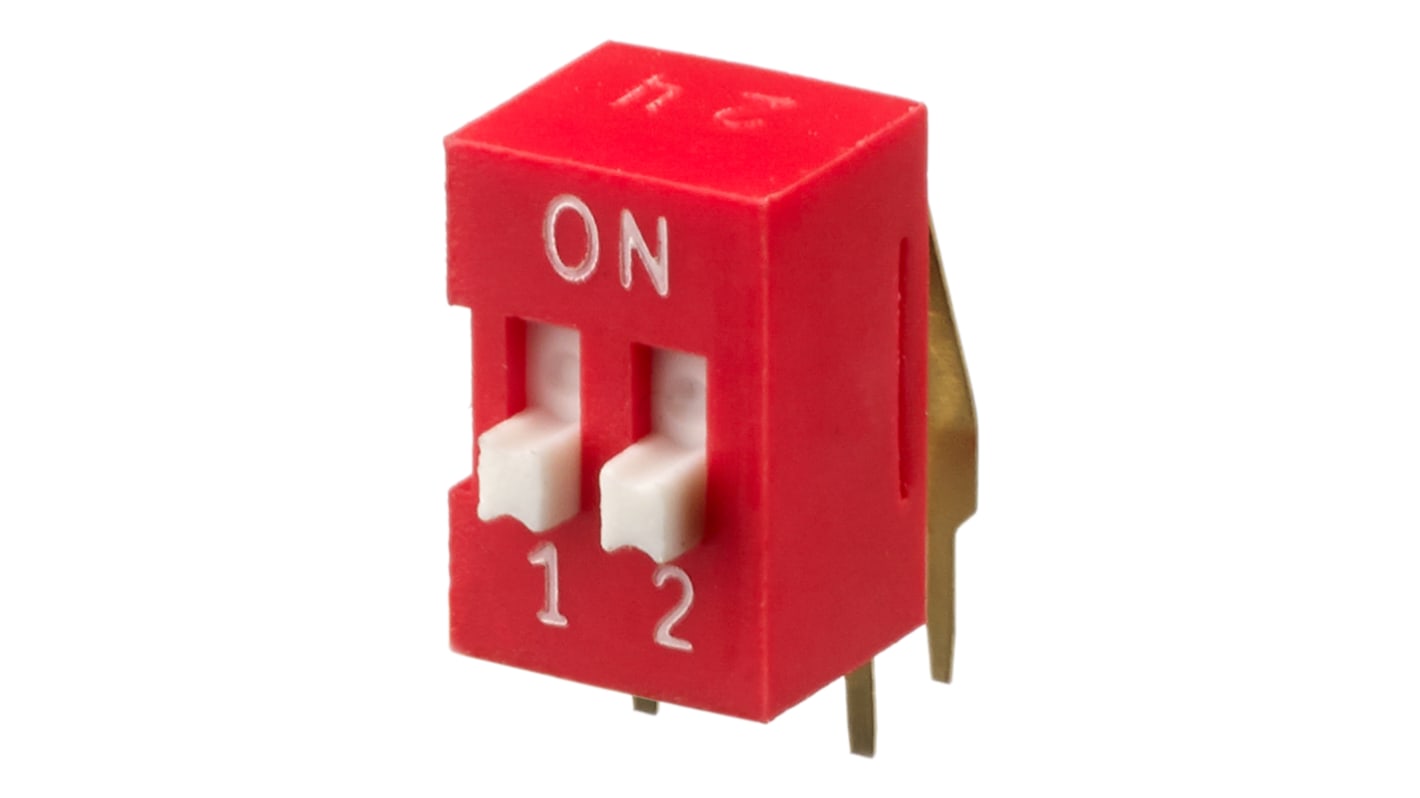

APEM 2 Way Through Hole DIP Switch SPST, Raised Actuator
- RS Stock No.:
- 877-2422
- Mfr. Part No.:
- DA02V
- Brand:
- APEM
Subtotal (1 bag of 5 units)*
£4.12
(exc. VAT)
£4.945
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 + | £0.824 | £4.12 |
*price indicative
- RS Stock No.:
- 877-2422
- Mfr. Part No.:
- DA02V
- Brand:
- APEM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Number of Positions | 2 | |
| Mounting Type | Through Hole | |
| Contact Material | Phosphor Bronze | |
| Contact Configuration | SPST | |
| Package Style | DIP | |
| Actuator Type | Raised | |
| Contact Current Rating | 25 mA | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +70°C | |
| Voltage Rating | 24V dc | |
| Dielectric Strength | 500V dc | |
Select all | ||
|---|---|---|
Brand APEM | ||
Number of Positions 2 | ||
Mounting Type Through Hole | ||
Contact Material Phosphor Bronze | ||
Contact Configuration SPST | ||
Package Style DIP | ||
Actuator Type Raised | ||
Contact Current Rating 25 mA | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +70°C | ||
Voltage Rating 24V dc | ||
Dielectric Strength 500V dc | ||
- COO (Country of Origin):
- CN
Apem DIP Switches – DA & DS Series
Apem DA, and DS series of DIP switches are SPST through-hole switches available in an array of positions. The DA series are right angled type DIP switches with a raised actuator, the DS series are standard type DIP switches with a raised actuator. Applications include telecom, computers, test equipment, security and instrumentation.
Low contact resistance: 50mΩ
Insulation resistance >100MΩ at 100Vdc
Insulation resistance >100MΩ at 100Vdc
