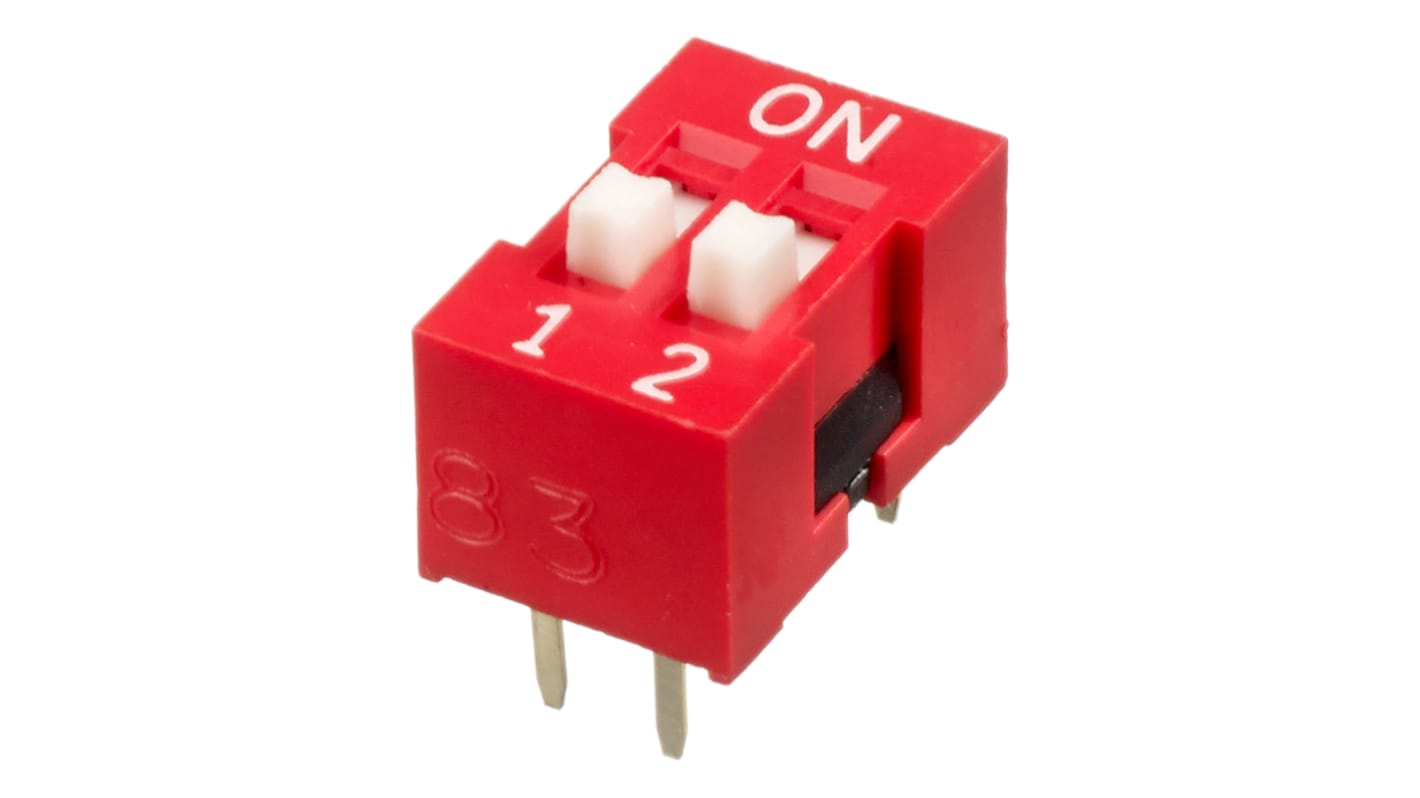

    APEM 2 Way Through Hole DIP Switch SPST, Raised Actuator

    APEM
    RS Stock No.:
    877-2116
    Mfr. Part No.:
    NDS-02-V
    Brand:
    APEM
    View all DIP & SIP Switches
    1800 In stock - FREE next working day delivery available
    216 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Units

    Added

    Price Each (In a Tube of 72)

    £0.933

    (exc. VAT)

    £1.12

    (inc. VAT)

    UnitsPer unitPer Tube*
    72 - 144£0.933£67.176
    216 - 288£0.848£61.056
    360 - 432£0.777£55.944
    504 - 792£0.72£51.84
    864 +£0.686£49.392
    *price indicative
    RS Stock No.:
    877-2116
    Mfr. Part No.:
    NDS-02-V
    Brand:
    APEM

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

    Apem DIP Switch – NDS Series


    The NDS series are SPST through-hole switches with a raised actuator and they are available in an array of positions. Applications include telecom, computers, test equipment, security and instrumentation

    Operation force 10N max
    2mm Stroke
    25mA 24Vdc, switching rating
    100mA 50Vdc, non switching rating


    Specifications

    AttributeValue
    Number of Positions2
    Mounting TypeThrough Hole
    Contact ConfigurationSPST
    Contact MaterialPhosphor Bronze
    Package StyleDIP
    Actuator TypeRaised
    Contact Current Rating25 mA
    Maximum Operating Temperature+85°C
    Minimum Operating Temperature-40°C
    Operating Temperature Range-40 → +85°C
    Voltage Rating24V dc
    Dielectric Strength500V dc
