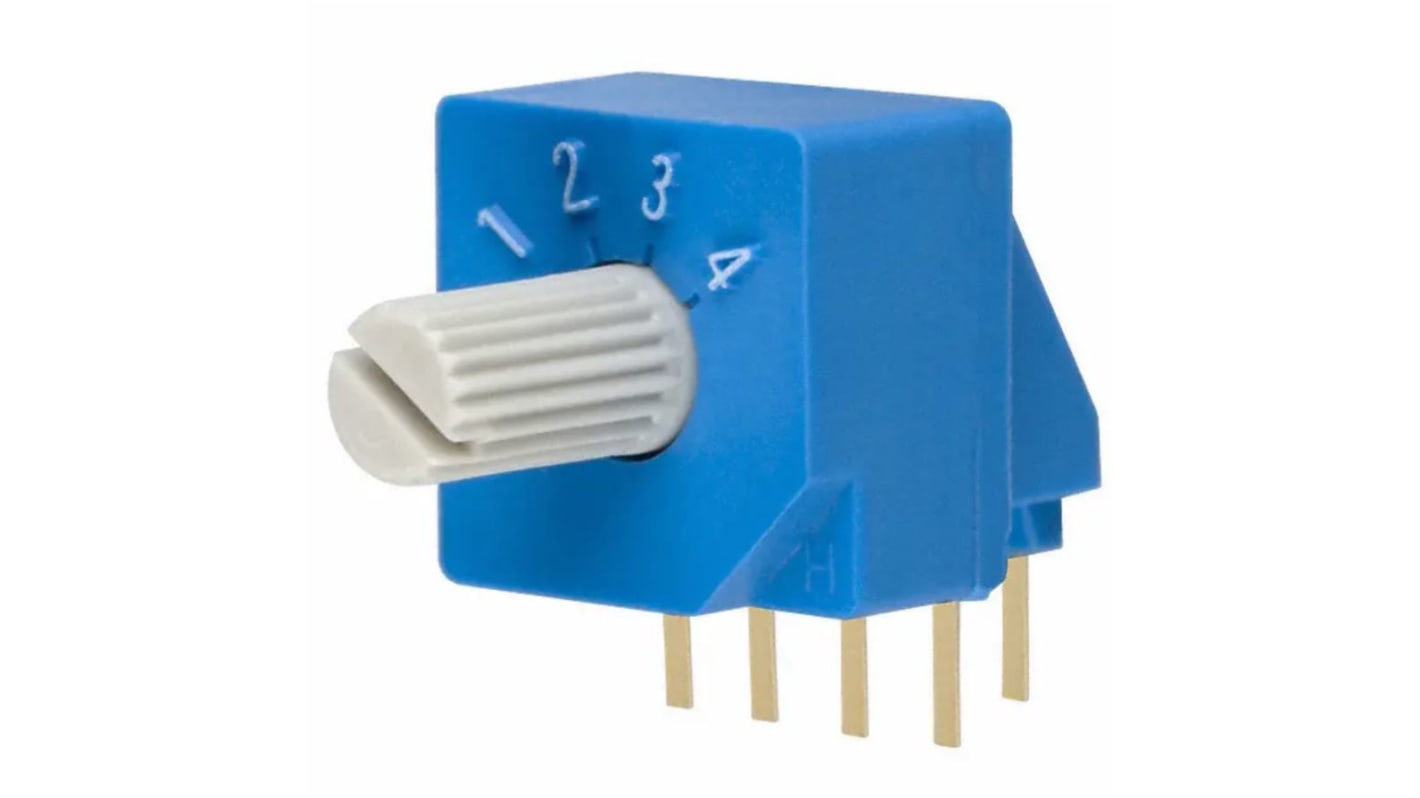

Nidec Components 4 Way Through Hole Rotary Switch SP4T, Rotary Actuator

View all DIP & SIP Switches
Discontinued
RS Stock No.:
196-8145
Mfr. Part No.:
S-2151
Brand:
Copal Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Copal Electronics

Number of Positions

4

Mounting Type

Through Hole

Contact Material

Copper Alloy

Contact Configuration

SP4T

Package Style

DIP

Actuator Type

Rotary

Contact Current Rating

100mA

Mechanical Life

500Operations

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-25°C

Operating Temperature Range

-25 → +70°C

Voltage Rating

5V

COO (Country of Origin):
CN
Copal Electronics S-2151 is a SP4T rotary DIP 4-position switch having DC current rating of 100mA. The contact material is Copper whereas the contact finish is Gold. Its body is made up of Polybutylene Terephthalate (PBT). It has a wide variety like circuit composition, operating direction, terminal shape J-hook, Gull wing, through hole pins. S-2151 SP4T DIP rotary switch adopted twin-contact mechanism. These switches are ROHS compliant. S-2151 SP4T DIP rotary switches consists of 50 pieces per tray.

500 electrical life cycles
Standardization of the silver as well as gold contacts
Uses a heat-resistant resin to support reflow soldering mounting
Raised actuator level with rotary shaft
Excellent contact stability by twin Gold-plated contact
