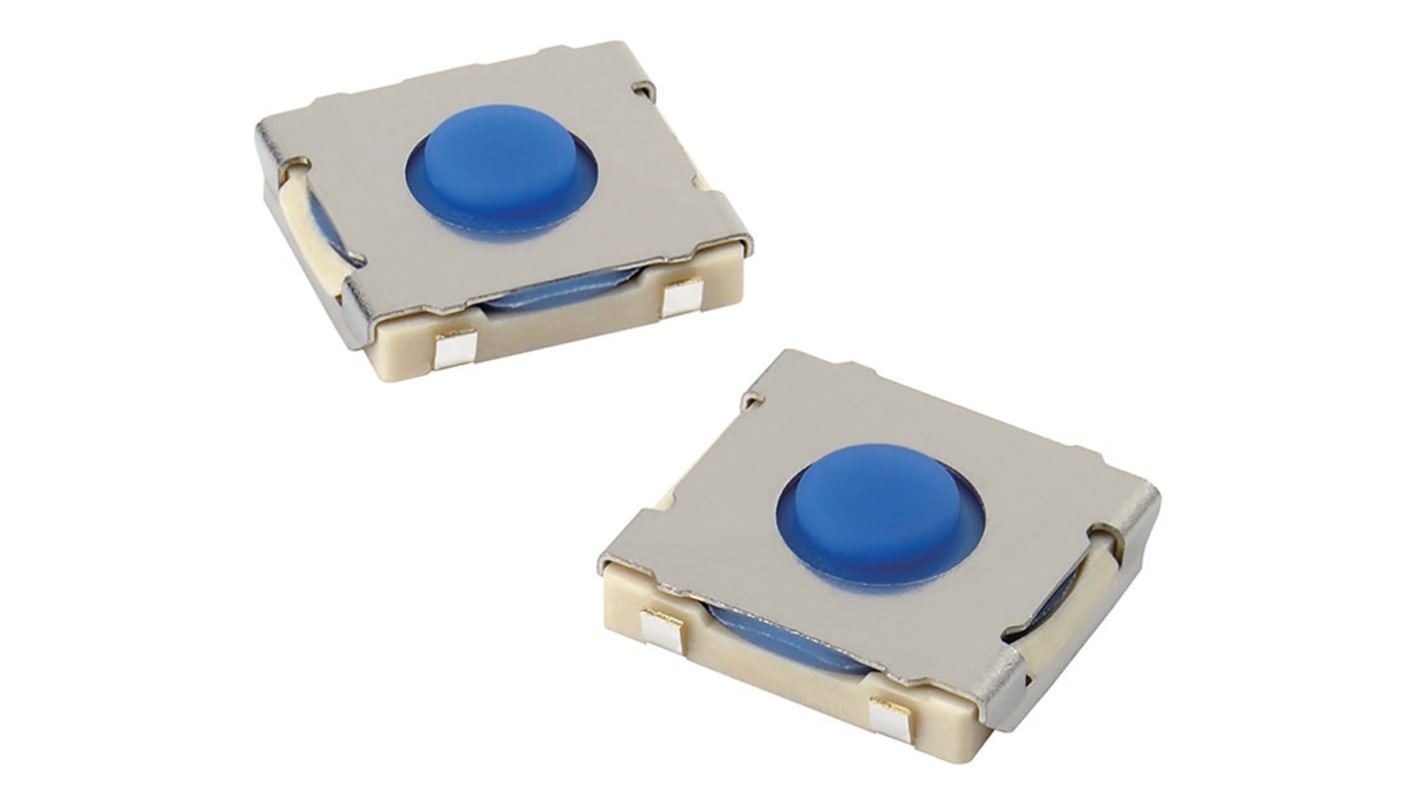

Omron 1 Way Surface Mount DIP Switch SPST, Plunger Actuator, IP67
- RS Stock No.:
- 174-8251
- Mfr. Part No.:
- B3SE-1002P
- Brand:
- Omron
Subtotal (1 pack of 10 units)*
£7.28
(exc. VAT)
£8.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,470 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.728 | £7.28 |
*price indicative
- RS Stock No.:
- 174-8251
- Mfr. Part No.:
- B3SE-1002P
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Number of Positions | 1 | |
| Mounting Type | Surface Mount | |
| Contact Material | Silver | |
| Contact Configuration | SPST | |
| Package Style | SMT | |
| Actuator Type | Plunger | |
| Contact Current Rating | 1 → 50 mA | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Operating Temperature Range | -25 → +70°C | |
| IP Rating | IP67 | |
| Voltage Rating | 3 → 12V dc | |
| Dielectric Strength | 250V ac | |
Select all | ||
|---|---|---|
Brand Omron | ||
Number of Positions 1 | ||
Mounting Type Surface Mount | ||
Contact Material Silver | ||
Contact Configuration SPST | ||
Package Style SMT | ||
Actuator Type Plunger | ||
Contact Current Rating 1 → 50 mA | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +70°C | ||
IP Rating IP67 | ||
Voltage Rating 3 → 12V dc | ||
Dielectric Strength 250V ac | ||
- COO (Country of Origin):
- JP
PCB surface-mounting 6-mm square type that achieves high durability with an ultra-thin, sealed structure.
A height of 2 mm contributes to the development of thinner and smaller devices.
Sealed construction provides high contact reliability in dusty environments. (* Excluding the terminal section.)
Crisp click feeling and high durability of 1million operations.
Surface-mounting pin type is suitable for high-density mounting.
Sealed construction provides high contact reliability in dusty environments. (* Excluding the terminal section.)
Crisp click feeling and high durability of 1million operations.
Surface-mounting pin type is suitable for high-density mounting.
