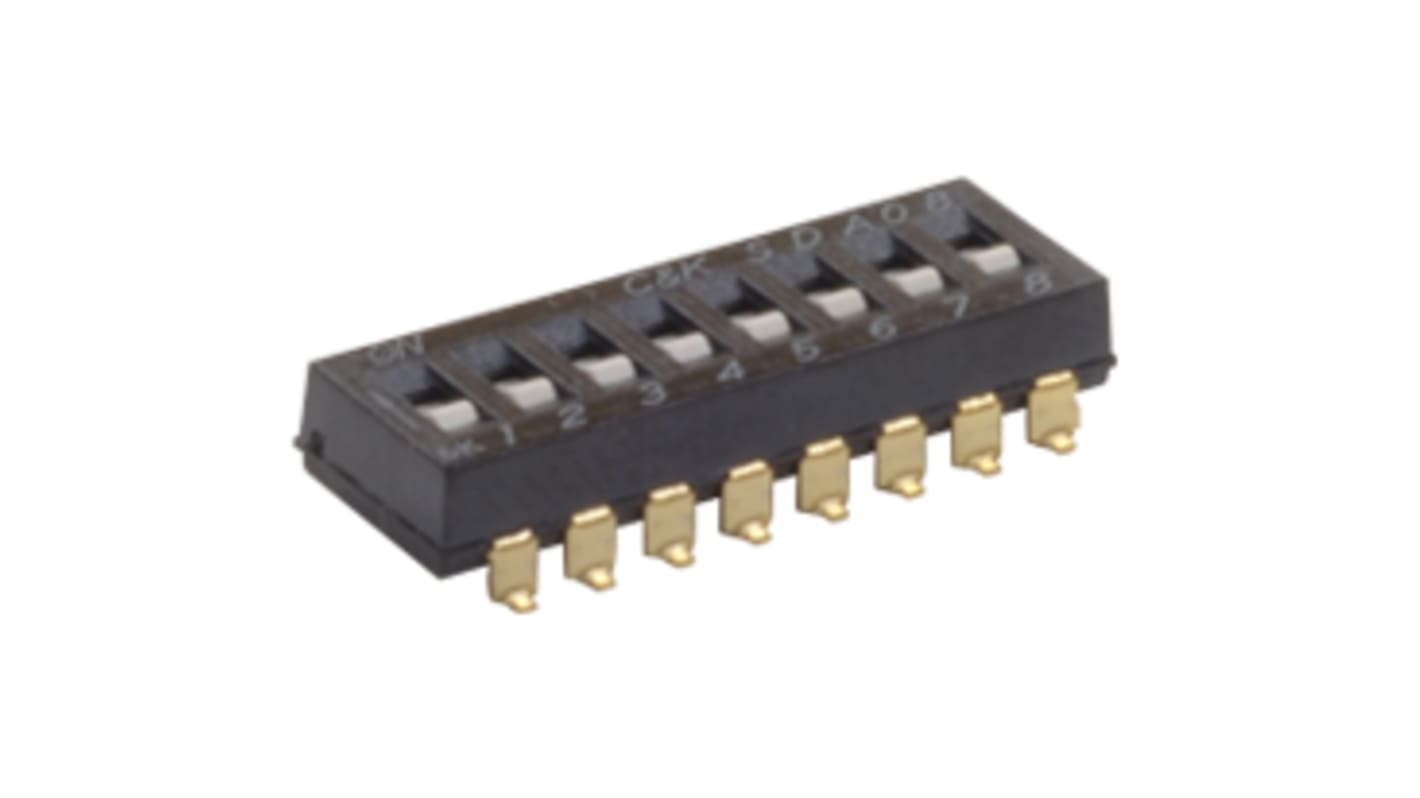

C & K 8 Way Surface Mount DIP Switch SPST, Flush, Recessed, Slide Actuator
- RS Stock No.:
- 161-2977
- Mfr. Part No.:
- SDA08H0SBR
- Brand:
- C & K
Available to back order for despatch 17/09/2024
Added
Price Each (In a Pack of 5)
£2.23
(exc. VAT)
£2.68
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 10 | £2.23 | £11.15 |
| 15 - 45 | £2.118 | £10.59 |
| 50 - 95 | £2.008 | £10.04 |
| 100 + | £1.896 | £9.48 |
| *price indicative | ||
- RS Stock No.:
- 161-2977
- Mfr. Part No.:
- SDA08H0SBR
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
C&K’s series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. C&K DIP switches are available in surface mount, through-hole, right angle and vertical mounting options. Washable DIP Switches for Easier Processing.
Low profile design saves space
Thru-hole and surface mount models
Tape and reel packaging available
Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications
Thru-hole and surface mount models
Tape and reel packaging available
Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 8 |
| Mounting Type | Surface Mount |
| Contact Material | Beryllium Copper |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Flush, Recessed, Slide |
| Contact Current Rating | 25 mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 24V dc |
| Dielectric Strength | 300V dc |
