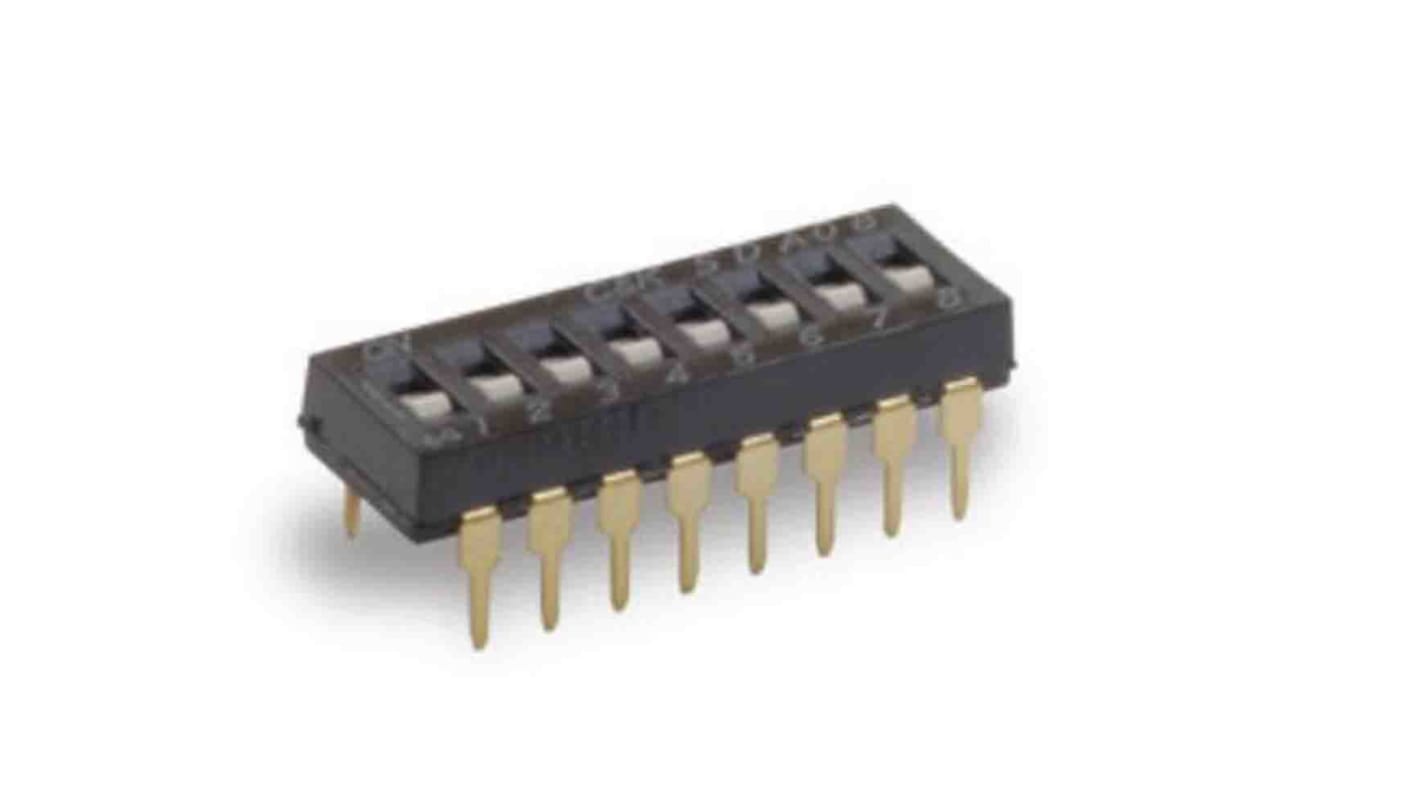

C & K 8 Way Through Hole DIP Switch SPST, Flush, Recessed, Slide Actuator
- RS Stock No.:
- 161-2953
- Mfr. Part No.:
- SDA08H0BD
- Brand:
- C & K
Available to back order for despatch 13/02/2025
Added
Price Each (In a Tube of 20)
£2.068
(exc. VAT)
£2.482
(inc. VAT)
| Units | Per unit | Per Tube* |
| 20 + | £2.068 | £41.36 |
| *price indicative | ||
- RS Stock No.:
- 161-2953
- Mfr. Part No.:
- SDA08H0BD
- Brand:
- C & K
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
C&K DIP switches are available in surface mount, through-hole, right angle and vertical mounting options. Washable DIP Switches for Easier Processing.
Low profile design saves space
Thru-hole and surface mount models
Tape and reel packaging available
Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications
Thru-hole and surface mount models
Tape and reel packaging available
Address switch for industrial controls
Logic switching for computers and peripherals
Function controlling for numerous applications
Specifications
Attribute | Value |
|---|---|
| Number of Positions | 8 |
| Mounting Type | Through Hole |
| Contact Material | Beryllium Copper |
| Contact Configuration | SPST |
| Package Style | DIP |
| Actuator Type | Flush, Recessed, Slide |
| Contact Current Rating | 25 mA @ 24 V dc |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
| Voltage Rating | 24V dc |
| Dielectric Strength | 300V dc |
