Block 5kVA DIN Rail Transformer, 418V ac Primary, 2 x 115V ac Secondary
- RS Stock No.:
- 903-9883
- Mfr. Part No.:
- TT1 5-44-23
- Brand:
- Block
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 903-9883
- Mfr. Part No.:
- TT1 5-44-23
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Primary Voltage Rating | 418 V ac, 440 V ac, 462V ac | |
| Secondary Voltage Rating | 2 x 115V ac | |
| Power Rating | 5kVA | |
| Mounting Type | Fixing Rail | |
| Length | 335mm | |
| Width | 240mm | |
| Depth | 195mm | |
| Dimensions | 240 x 335 x 195mm | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Maximum Temperature | +40°C | |
| Priced to Clear | Yes | |
| Weight | 39kg | |
Select all | ||
|---|---|---|
Brand Block | ||
Primary Voltage Rating 418 V ac, 440 V ac, 462V ac | ||
Secondary Voltage Rating 2 x 115V ac | ||
Power Rating 5kVA | ||
Mounting Type Fixing Rail | ||
Length 335mm | ||
Width 240mm | ||
Depth 195mm | ||
Dimensions 240 x 335 x 195mm | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Maximum Temperature +40°C | ||
Priced to Clear Yes | ||
Weight 39kg | ||
- COO (Country of Origin):
- DE

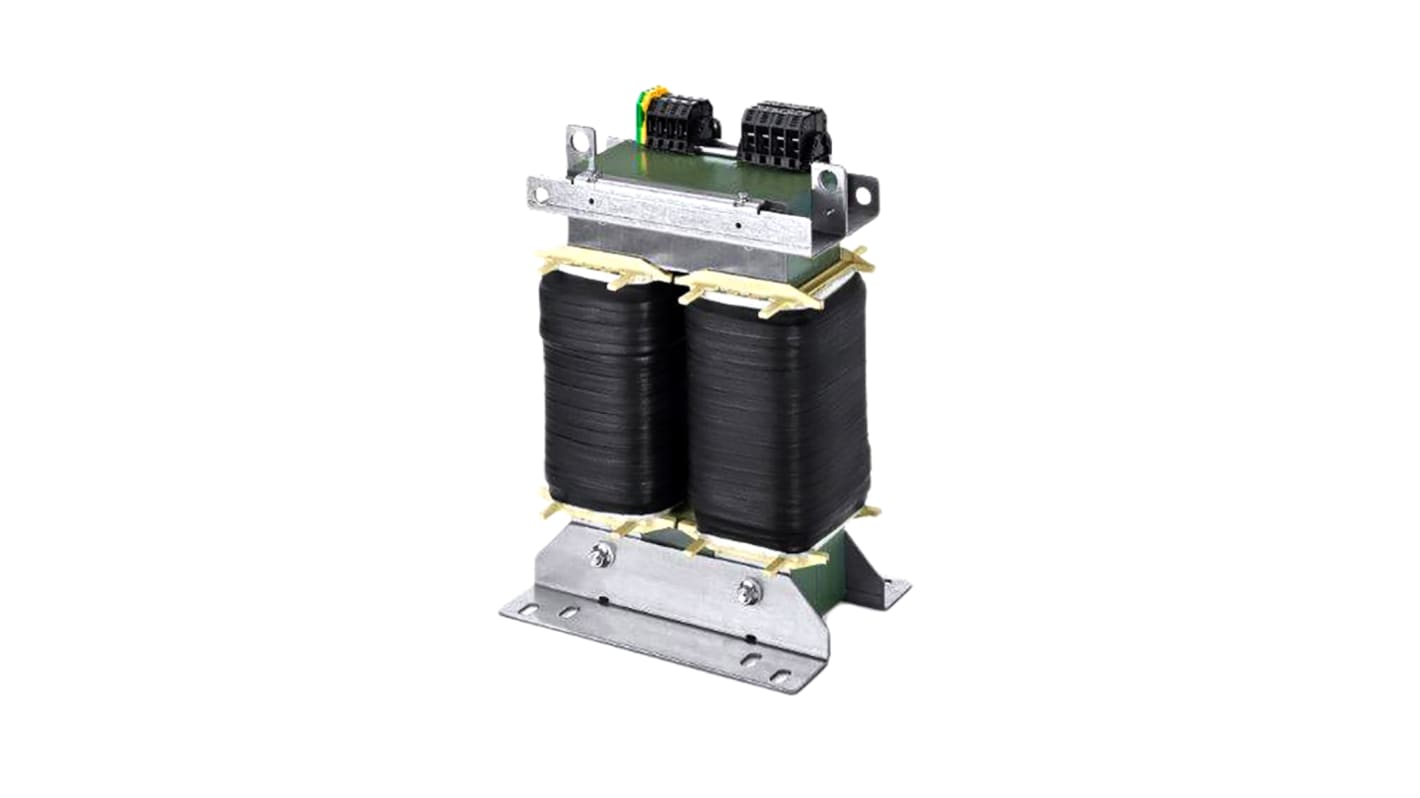

TT1 Series Isolating Transformer
High-quality multi-purpose panel mount isolating transformers from the Block TT1 series. The transformers are designed for the safe isolation of the input and output sides. They can be used to set up protective separation as a protective measure.
Features and Benefits:
Safe galvanic isolation
Integrated crane eyes
Non-slip terminals
Integrated crane eyes
Non-slip terminals
Corrosion protections and low noise
Horizontal design ensures space saving
