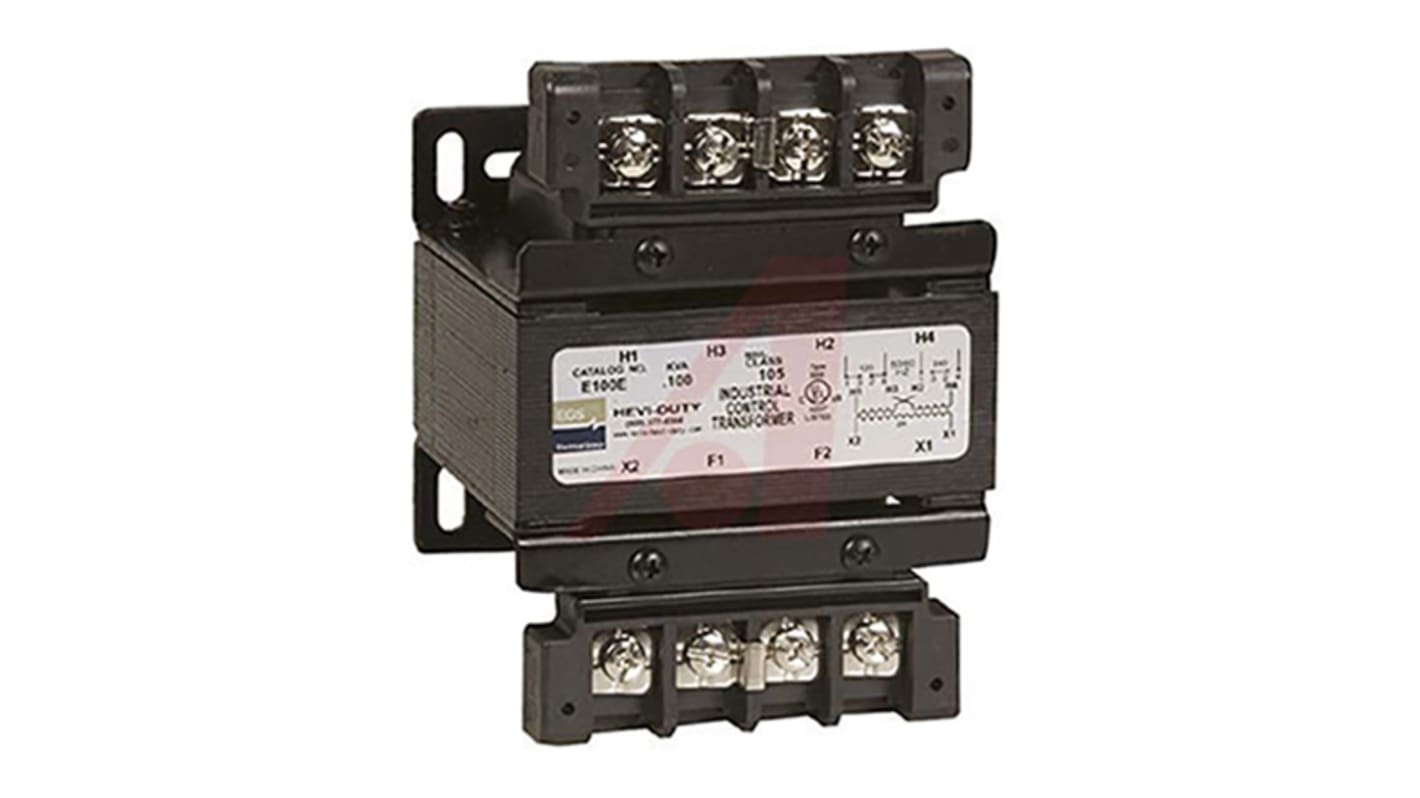

SolaHD 100VA DIN Rail Transformer, 120V Primary, 24V Secondary
- RS Stock No.:
- 890-8845
- Mfr. Part No.:
- E100E
- Brand:
- SolaHD
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 890-8845
- Mfr. Part No.:
- E100E
- Brand:
- SolaHD
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SolaHD | |
| Primary Voltage Rating | 120 V, 240V | |
| Secondary Voltage Rating | 24V | |
| Power Rating | 100VA | |
| Mounting Type | Panel | |
| Width | 3.39in | |
| Depth | 4.61in | |
| Dimensions | 2.96 x 3.39 x 4.61in | |
| Maximum Operating Frequency | 60Hz | |
| Weight | 5lb | |
Select all | ||
|---|---|---|
Brand SolaHD | ||
Primary Voltage Rating 120 V, 240V | ||
Secondary Voltage Rating 24V | ||
Power Rating 100VA | ||
Mounting Type Panel | ||
Width 3.39in | ||
Depth 4.61in | ||
Dimensions 2.96 x 3.39 x 4.61in | ||
Maximum Operating Frequency 60Hz | ||
Weight 5lb | ||
- COO (Country of Origin):
- US
SolaHD SBE Encapsulated Series Transformers
The SBE Encapsulated series control transformers have been epoxy encapsulated thus sealing the transformer windings from moisture, dirt and industrial contaminants. They feature extra deep, moulded terminal barriers which helps to reduce the possibility of electrical failure from arcing or frayed lead wires. Thanks to their rugged design and high reliability they are ideally suited for all industrial applications and environments.
50 to 1000 VA, 50/60 Hz suitable for worldwide applications
Interleaved copper windings reduce I²R losses and maximize efficiency
+55 °C Rise, +105 °C insulation system to minimize heat
Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants
Meets or Exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability
Integrally moulded, flame retardant (IEC 707 / ISO Class 1210) Terminal Blocks provide greater terminal contact area and improved conductivity
Heavy gauge steel mounting plate
Mounting dimensions are compatible with similar control transformers
Interleaved copper windings reduce I²R losses and maximize efficiency
+55 °C Rise, +105 °C insulation system to minimize heat
Epoxy encapsulated to protect cores and coils against moisture, dirt, and other contaminants
Meets or Exceeds NEMA Standard ST 1 and ANSI C89.1 for load inrush capability
Integrally moulded, flame retardant (IEC 707 / ISO Class 1210) Terminal Blocks provide greater terminal contact area and improved conductivity
Heavy gauge steel mounting plate
Mounting dimensions are compatible with similar control transformers
